Fluke 87V/IMSK – Industrial Multimeter Service Combo Kit with 87-5 and i400 AC Current Clamp
39 people are viewing this product right now
Original price was: $648.98.$552.02Current price is: $552.02.
Shipping calculated at checkout.
Estimated delivery:3 days

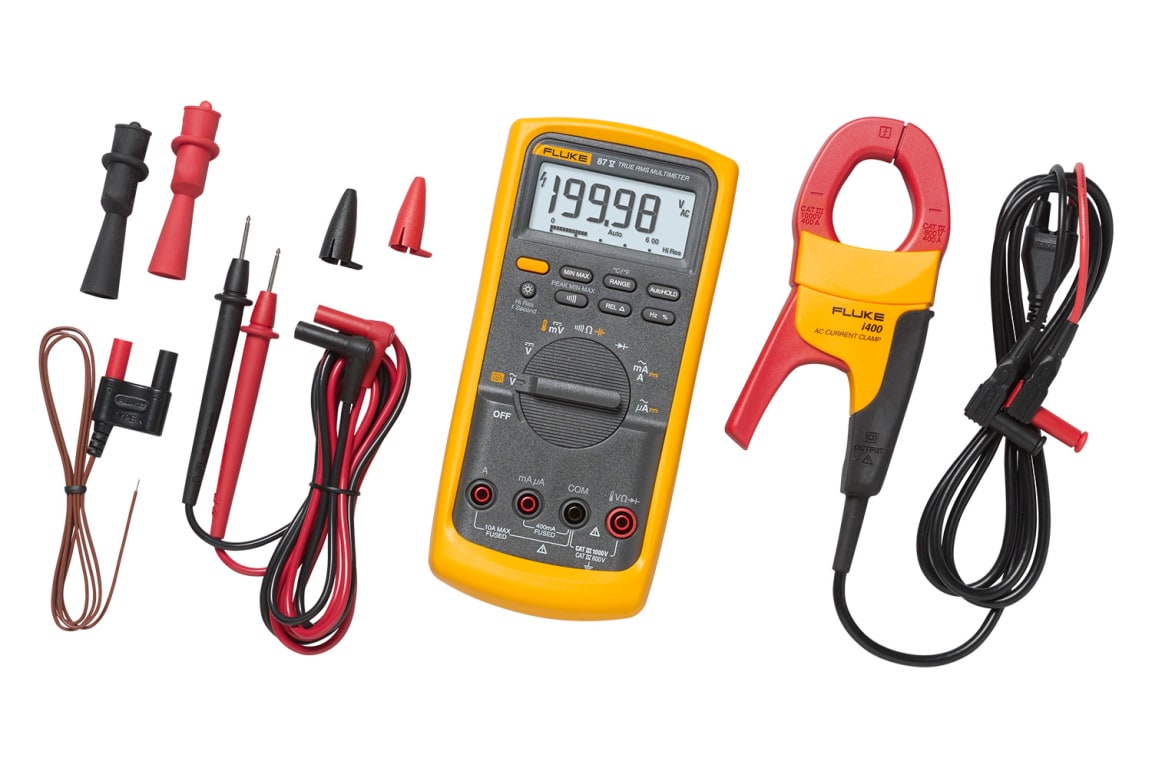

INDUSTRIAL MULTIMETER SERVICE KIT
- Industrial multimeter service combo kit
- Includes Fluke 87-5 multimeter, i400 AC current clamp (400A), and more
- i400 turns the 87-5 into a clamp meter
- True RMS, heavy-duty industrial multimeter
- Provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and more
- Supports accurate measurements on VFDs using a low-pass filter
- Captures intermittent signals as fast as 250µS using Peak Capture
- High-frequency, high-energy noise generated by large drive systems is blocked with specially designed shielding
- Frequency to 200 kHz and % duty cycle
- CAT III 1000V, CAT IV 600V
Guarantee Safe and Secure Payment Checkout
Description
Fluke 87V/IMSK
- Industrial multimeter service combo kit
- Includes Fluke 87-5 multimeter, i400 AC current clamp (400A), and more
- i400 turns the 87-5 into a clamp meter
- True RMS, heavy-duty industrial multimeter
- Provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and more
Industrial Multimeter Service Combo Kit with 87-5 and i400 AC Current Clamp
The Fluke 87V/IMSK combo kit is built around the Fluke 87V, the most widely used industrial digital multimeter in the world, combined with the i400 AC current clamp. Together they provide the resolution and accuracy to efficiently troubleshoot any electrical system. The kit includes special accessories to make you even more productive on the job and will save over 15% compared with the individually priced items. Plus, you’ll be working with the most trusted tools in the world.
Fluke-87V Multimeter has true-RMS accuracy and advanced functionality to give you the results you need
- True-RMS accuracy with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-Average recording
- Efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high-energy, and high-altitude locations
- A low pass filter supports accurate frequency measurements on VFDs and captures intermittents as fast as 250µS
- Lifetime warranty, backed by a brand you trust
Fluke-i400 AC 400A Current Clamp turns the 87V into a clamp meter
- The current clamp provides accurate current measurements up to 400A ac without breaking electric circuits
- Allows taking measurements safely with industry-standard safety ratings
Select accessories like temperature probe, test leads, and alligator clips
- The 80BK-A DMM Temperature Probe plugs into the 87V’s voltage jacks and allows temperature measurements from -40°C to 260°C (-40°F to 500°F)
- TL75 Test Leads and AC175 Alligator Clips complete this versatile kit
Key safety features
- Safety-rated CAT III 1000V, and CAT IV 600V meters to get you home safely from the job
- Designed to withstand spikes of more than 8000 V. Audible Input Alert warning against wrong use of input jacks
Screen layout
| 1. Polarity indicator of bar graph, positive/negative slope indicator for triggering | 10. Min/max recording mode |
| 2. Continuity beeper is on | 11. Low pass filter mode |
| 3. Relative mode | 12. Low battery |
| 4. Smoothing | 13. Units of measure |
| 5. Indicates negative reading | 14. Temperature |
| 6. High voltage is present | 15. Selected range |
| 7. Auto hold | 16. High resolution mode |
| 8. Display hold | 17. Auto/manual ranging |
| 9. Peak min max mode (250µs response time) | 18. Bar graph |
Product comparison
The chart below outlines a comparison of the 87-5 and several other Fluke products.
To view additional selection criteria for the Fluke digital multimeter portfolio, please click here.
| 87V | 87V MAX | 289 | 179 | 1587 FC | |
| Counts | 20000 | 20000 | 50000 | 6000 | 6000 |
| Basic DC accuracy | 0.05% | 0.05% | 0.02% | 0.09% | 0.09% |
| True RMS | ✓ | ✓ | ✓ | ✓ | ✓ |
| AC/DC voltage | 1000V | 1000V | 1000V | 1000V | 1000V |
| AC/DC current | 10A | 10A | 10A | 10A | 10A |
| Resistance | 50MΩ | 50MΩ | 500MΩ | 50MΩ | 50MΩ |
| Capacitance | 9999µF | 9999µF | 100000µF | 9999µF | 9999µF |
| Temperature | 1994°F | 1994°F | 2462°F | 752°F | 932°F |
| Frequency | 200 kHz | 200 kHz | 1 MHz | 100 kHz | 100 kHz |
| Motor drive measurement | ✓ | ✓ | ✓ | – | ✓ |
| Relative reference | ✓ | ✓ | ✓ | – | – |
| Microamps | ✓ | ✓ | ✓ | – | – |
| Conductance | 50nS | 60nS | 50nS | – | – |
| Duty cycle | ✓ | ✓ | ✓ | – | – |
| Pulse width | – | – | ✓ | – | – |
| Pi/DAR | – | – | – | – | ✓ |
| Drop test | 3 meters | 4 meters | – | – | – |
| Backlit keypad | – | ✓ | – | – | – |
| IP rating | IP30 | IP67 | IP42 | – | – |
| CAT III rating | 1000V | 1000V | 1000V | 1000V | 1000V |
| CAT IV rating | 600V | 600V | 600V | 600V | – |
| Battery life | 400 hours | 800 hours | 200 hours | 200 hours | 1000 hours |
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 1 V (1000 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 V (1000 mV) |
| Maximum Current AC | 10 A Maximum Current AC 20 A for 30 seconds maximum |
| Minimum Current AC | 0.1 mA |
| Resolution AC Current | 0.01 A (10 mA) |
| Maximum Current DC | 10 A Maximum Current DC 20 A for 30 seconds maximum |
| Minimum Current DC | 0.1 mA |
| Resolution DC Current | 0.01 mA |
| Basic Accuracy V DC | ± (0.05 % + 1) |
| # Digit Display | 4.5 # Digit Display HiRes digit mode feature |
| Counts | 4000 . Counts 4000 counts updates 4/sec |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes Resistance Maximum Resistance 50 Ω |
| Frequency | Yes Frequency Maximum Frequency 200 kHz |
| Capacitance | Yes Capacitance Maximum Capacitance 9,999 µF |
| Temperature | Yes Temperature Range: 200.0°C – 1090°C, -328.0°F – 1994.0°F; |
| Diode Testing | Yes Diode Testing Range 3 V |
| CAT Rating | IV CAT Rating CAT III 1000 V / CAT IV 600 V |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | Yes |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
| Duty Cycle % | Range: 0.0 to 99.9 % Accuracy: Within ± (0.2 % per kHz + 0.1 %) for risetimes < 1 μs |
Product General Attributes | |
| Unique Features | Industrial Multimeter Service Combo Kit Includes: ◦Fluke 87V Industrial Multimeter and all of its features |
| Warranty | 10 YEARS |
| Safety Approval | CSA, UL Safety Approval Designed to comply with IEC 1010-1 as a 1000V, CAT III instrument (see pg.2 for |
| Interfaces I/O | Analog Output, Other, Wifi, Analog Input |
| Product Weight | 355 GRAMS (0.783 LBS) |
| Product Height | 1.25 IN Product Height With Holster and Flex-Stand: 2.06 inches |
| Product Length | 7.35 IN Product Length With Holster and Flex-Stand: 7.93 inches |
| Product Width | 3.41 IN Product Width With Holster and Flex-Stand: 3.86 inches |
| Data Logging | No |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Battery Type | 9v Battery Type 9V, NEDA 1604 or 6F22 or 006P |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
You must be logged in to post a review.
Manuals/Guides
BrochuresManuals
- User Manual
- User Manual Supplement
- Getting Started
- Getting Started Supplement
- Calibration Manual
- Calibration Manual Supplement
- Quick Reference
- i400 Manual
| Weight | 355 lbs |
|---|---|
| Dimensions | 7.35 × 3.41 × 1.25 in |
