Description

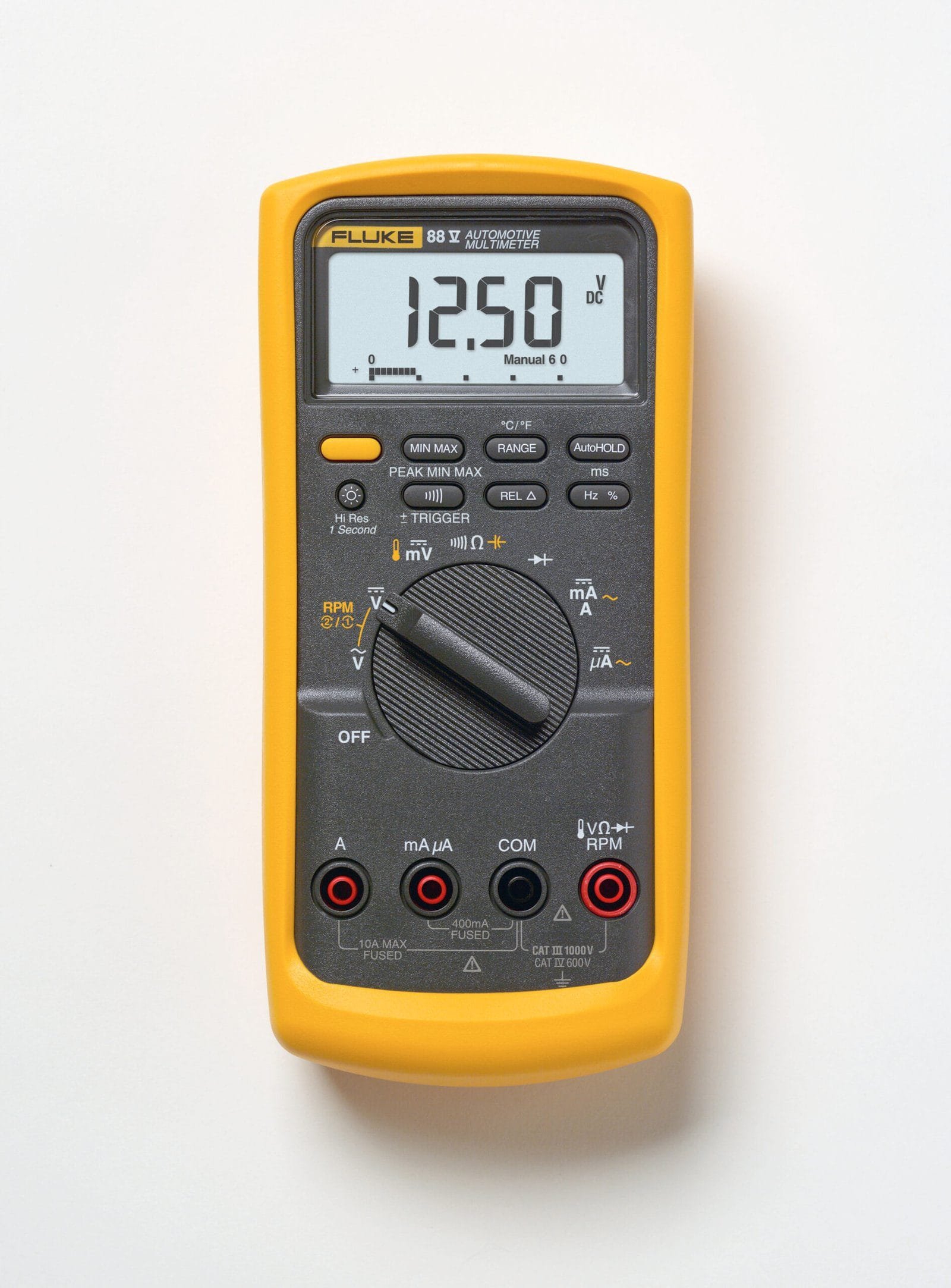

Fluke 88-5
- Designed for the garage – the most powerful automotive multimeter ever offered by Fluke
- Contains functions and accuracy levels to solve problems on conventional and hybrid vehicles
- Pulse width function provides millisecond resolution for troubleshooting fuel injectors
- RPM measurements with optional inductive pickup
- Min/Max/Average recording with Min/Max Alert to capture variations automatically
Deluxe Automotive Multimeter
The Fluke 88V is the most powerful automotive multimeter ever offered by Fluke and has measurement functions, troubleshooting features, and accuracy levels needed to solve problems on conventional and hybrid vehicles. In addition to standard multimeter features such as the ability to measure voltage, current, continuity, and resistance, the 88V can perform:
- Pulse width (with millisecond resolution for troubleshooting fuel injectors)
- Duty cycle
- Min/Max/Average recording
- Diode tests
The 88V meter can take care of many automotive needs, getting into more of the digital multimeters measurement capabilities – it can measure voltage up to 1000 V AC and DC, current up to 10 A, 20 A for up to 30 seconds, frequency to 200 kHz and % duty cycle. Add those features to RPM measurements with optional inductive pickup and millisecond pulse width measurements for fuel injectors to name a few. The 88V comes packed with the functions you need:
- Temperature measurements with optional temperature probe
- Analog bar graph to track changing or unstable signals
- Min/Max/Average recording with Min/Max Alert to capture variations automatically
- Peak Min/Max to record transients as fast as 250 μs

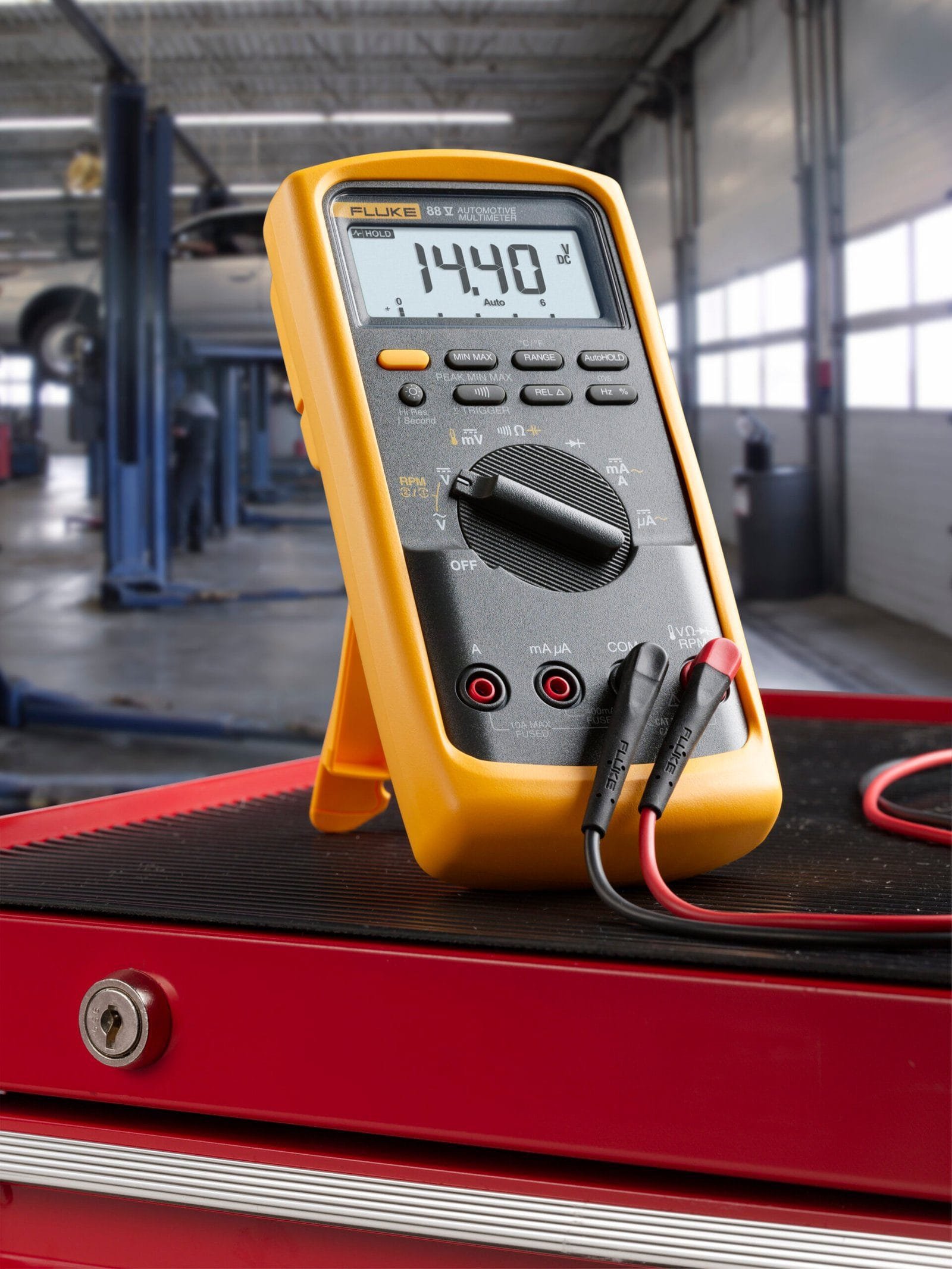

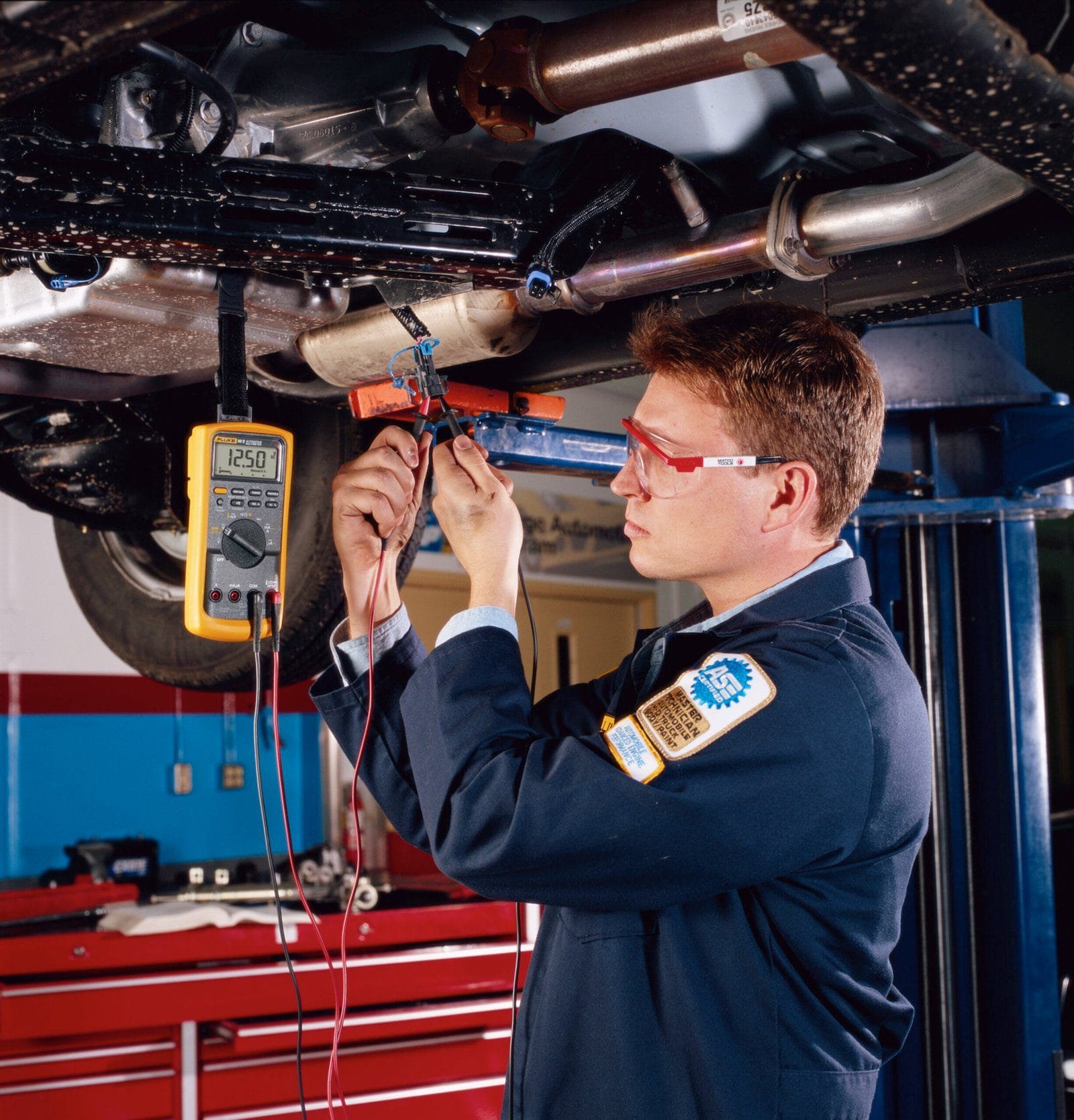

Designed for the garage
While working in a garage, the large display digits can help you focus on the vehicle while still being able to read the numbers. Plus, the two-level bright white backlight offers the additional visibility you may need.
An optional magnetic hanger lets you hang the meter from most steel surfaces for easy set-up and viewing. The 88V is designed to be used in high energy environments like those found on hybrid vehicles.
The product is supported by a limited lifetime warranty.
Screen layout
1. Bar graph polarity / positive/negative slope for triggering, pulse width, RPM | 10. Min/max recording mode |
2. Continuity | 11. Low battery |
3. Relative mode | 12. Units of measure |
4. Smoothing is active | 13. Temperature C/F |
5. Negative readings | 14. Selected range |
6. High voltage present | 15. HiRes mode (19,999) |
7. Auto hold | 16. Auto/manual ranging |
8. Display hold | 17. Bar graph |
| 9. Peak mode (250µS response) | 18. RPM (2 conventional, 1 waste spark) |
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 1 V (1000 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 V (1000 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 60.00 mA |
| Resolution AC Current | 0.01 mA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 60.00 mA |
| Resolution DC Current | 0.01 mA |
| Basic Accuracy V DC | ± (0.1%+1) |
| # Digit Display | 4.5 |
| Counts | 19999 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes Resistance Maximum resistance 50 MΩ |
| Frequency | Yes Frequency Maximum frequency 200 KHz |
| Capacitance | Yes Capacitance Capacitance Maximum capacitance 9,999 µF |
| Temperature | Yes Temperature Temperature -200 °C to +1090 °C, -328 °F to +1994 °F |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
| Duty Cycle % | Maximum duty cycle 99.9 % Accuracy within 2% per KHz +0.1% Best resolution 0.1 % |
Product General Attributes | |
| Unique Features | •0.1 % dc accuracy •Current measurements up to 10 A, 20 A for up to 30 seconds •Millisecond pulse width measurements for fuel injectors •Optional magnetic hanger allows meter to attach to the vehicle and free your hands for other tasks •Min/Max/Average recording with Min/Max Alert to capture variations automatically •Peak Min/Max to record transients as fast as 250 μs •Relative mode to remove test lead resistance from low ohms measurements •Auto and manual ranging for maximum flexibility •Autohold™ to capture stable readings with only one touch of the leads |
| Additional Info/Comments | •Large display digits and two-level bright white backlight for increased visibility •Analog bargraph to track changing or unstable signals •Input Alert provides audible warning against wrong use of input jacks •Access door for fast battery changes without opening up the case •”Classic” design that fits your hand with new removable holster, built-in test lead and probe storage •10 meg ohm input impedance won’t damage computer circuits •Limited lifetime warranty |
| Safety Approval | CSA, UL Safety Approval Complies with ANSI/ISA S82.01-2004, CSA 22.2 No. 1010.1:2004 to 1000 V Overvoltage Category III, IEC 664 to 600 V Overvoltage Category IV. UL listed to UL61010-1. Licensed by TÜV to EN61010-1 |
| Interfaces I/O | Analog Output, Analog Input |
| Product Weight | 0.78 LBS |
| Product Height | 1.25 IN Product Height Size with Holster and Flex-Stand 2.06 inches |
| Product Length | 7.35 IN Product Length Size with Holster and Flex-Stand 7.93 inches |
| Product Width | 3.41 IN Product Width Size with Holster and Flex-Stand 3.86 inches |
| Data Logging | No |
| ECCN Number | 3A992 |
| Calibration Included | |
| Battery Type | 9v Battery Type 9 V zinc, NEDA 1604 or 6F22 or 006P |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| UPC | 095969328906 |
