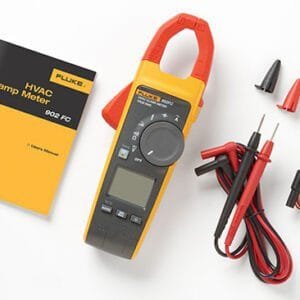

Fluke 902 FC – True-RMS Wireless HVAC Clamp Meter
Applications for HVAC
Â
- 200 µA DC current measurements to measure flame rod
- Extended resistance range to measure thermistors up to 60 kΩ
- Capture flue gas temperature
- Measure start and run motor capacitors
- Measure performance of variable frequency drives
Get more power from your clamp meter with Fluke Connect®
Troubleshoot Faster
Instantly trend and monitor intermittent problems with TrendItâ„¢ graphs so you can easily identify trends and stop problems before they happen.
Work safer and be in two places at the same time

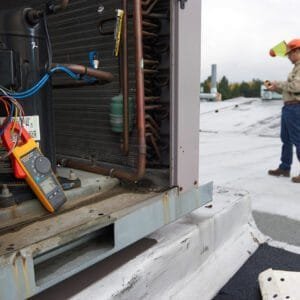

Connect your meter to your phone through Bluetooth, clamp your meter around a conductor and walk up to 30m (100 ft) away from the point of measurement for added flexibility. You can be in two places at once and reduce the risk of arc flash by separating yourself from hazardous measurement situations.
Save time reporting
Easily create reports with the measurements you have taken with your meter and e-mail them right from the field. Save your measurements directly from your meter to a chronological list on your phone for easy transcribing. Organize your measurements by asset in one location.
Share from anywhere
Stay on the same page when you and your team are in different places, with ShareLiveâ„¢ video call. Securely connect and collaborate with others, so they see what you see.
The Fluke 902 FC True-rms HVAC Clamp Meter, a wireless Fluke Connect®-enabled meter, improves the productivity of HVAC technicians in the field. The rugged dual rated – CAT III, 600 /CAT IV, 300 V – meter performs the essential measurements of HVAC systems – microamps for testing pilot light sensors, resistance up to 60 kilohms, AC current, AC/DC voltage, capacitance and contact temperature – eliminating the need to carry multiple tools. Its small body is easy to hold and the jaw fits perfectly in tight work spaces.
As part of Fluke Connect – the industry’s largest system of software and more than 40 wireless test tools – the 902 FC can transmit measurements to a smartphone or tablet for later, detailed analysis. Those measurements can be uploaded to the cloud. Technicians can combine measurement data from multiple Fluke Connect test tools to create and share reports from the job site via email and collaborate in real time with other colleagues with ShareLiveâ„¢ video calls or email, increasing productivity in the field.
The clamp meter also decreases the frequency that technicians will need to wear personal protective equipment when working on high voltage/current panels. Simply turn off the panel, verify the panel is de-energized using standard safety procedures, place the clamp and sync it to a smartphone with the Fluke Connect app, close the panel, reenergize it, and take measurements from a safe distance.
Clamp Meters/Clamp Meters Template | |
|---|---|
| True RMS | Yes |
| Maximum Current AC | 600 A |
| Maximum Current DC | 200 uA (0.0002 A) |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Resistance | Yes Resistance 600/6,000/60,000 Ω Ranges 1% Accuracy |
| Capacitance | Yes Capacitance 100μF / 1000μF ranges, 1% Accuracy |
| In-Rush Current | No |
Product General Attributes | |
| Unique Features | Fluke Connect®-enabled meter |
| Warranty | 3 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | Bluetooth |
| IP Rating | IP30 |
| Product Weight | 382 GRAMS (0.842 LBS) |
| Product Height | 9.1 IN |
| Product Length | 1.8 IN |
| Product Width | 3.3 IN |
| Data Logging | No Data Logging Data logging is possible using Fluke Connect® |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | EAR99 |
| Calibration Included | |
| CA Residents | Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Singapore |
