Fluke BK120-T5-600 – BK120 Smart Trace Breaker Finder with T5-600 Electrical Tester

• Package with BK120 and T5-600
• BK120 circuit breaker finder:
• Tool for identifying circuit breakers in electrical panels
• T5-600 electrical tester:
• Check voltage, continuity, and current, all with one compact, rugged tool

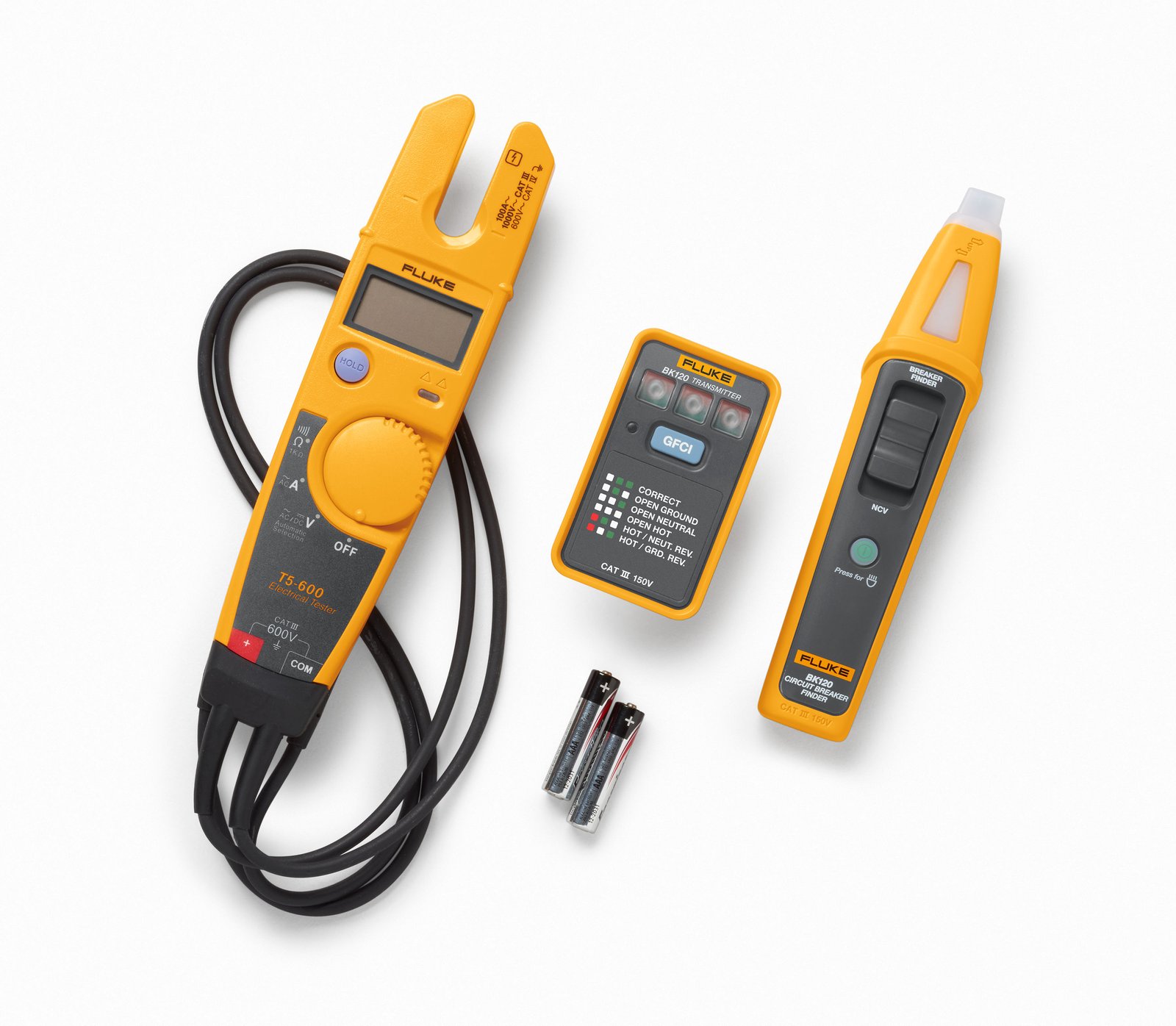

The Fluke BK120-T5-600 is a bundle that includes both the Fluke T5-600 electrical tester and BK120 SmartTrace Breaker Finder. The Fluke T5-600 Electrical Tester lets you quickly and safely take current measurements by sliding the open fork over a conductor, without metallic contact to a live conductor. The BK120 is a tool for identifying circuit breakers in electrical panels and detecting voltage with the NCV mode.

The BK120 is a tool for identifying circuit breakers in electrical panels and detecting voltage with NCV mode. It is an essential device for electricians, homeowners, and maintenance professionals, to simplify electrical work, circuit tracing, and troubleshooting.

The system consists of two main components: the Breaker Finder and the Transmitter. With the BK120, you can work safely and efficiently, saving time by accurately identifying circuit breakers without guesswork. The BK120 is suitable for use in CAT III 150 V environments, making it versatile for residential and commercial applications while offering a compact and ergonomic design to ensure comfortable handling during prolonged use.

Indicates proximity and actual detection of AC voltage on supply cords or terminal strips with advanced NCV mode, catering to both low and high voltage situations.

Non-contact voltage detection is usable on 90 to 240V AC (50/60 Hz) and features dual sensitivity, as well as visual and audio indications.

Consists of a Transmitter connected to the electrical outlet or fixture, the GFCI test button allows you to test the operation of GFCI outlets. Pressing the test button initiates a simulated ground fault, causing the GFCI to trip and interrupt the circuit. This test verifies that the GFCI’s internal mechanisms are operational and capable of swiftly responding to actual ground faults. Regular testing of GFCIs is essential to ensure ongoing safety in environments where electrical appliances are used.

The Breaker Finder provides both audible alerts and visual signals to indicate the presence of AC electric fields and the correct breaker. Bright LEDs enable users to identify breakers in most lighting environments.

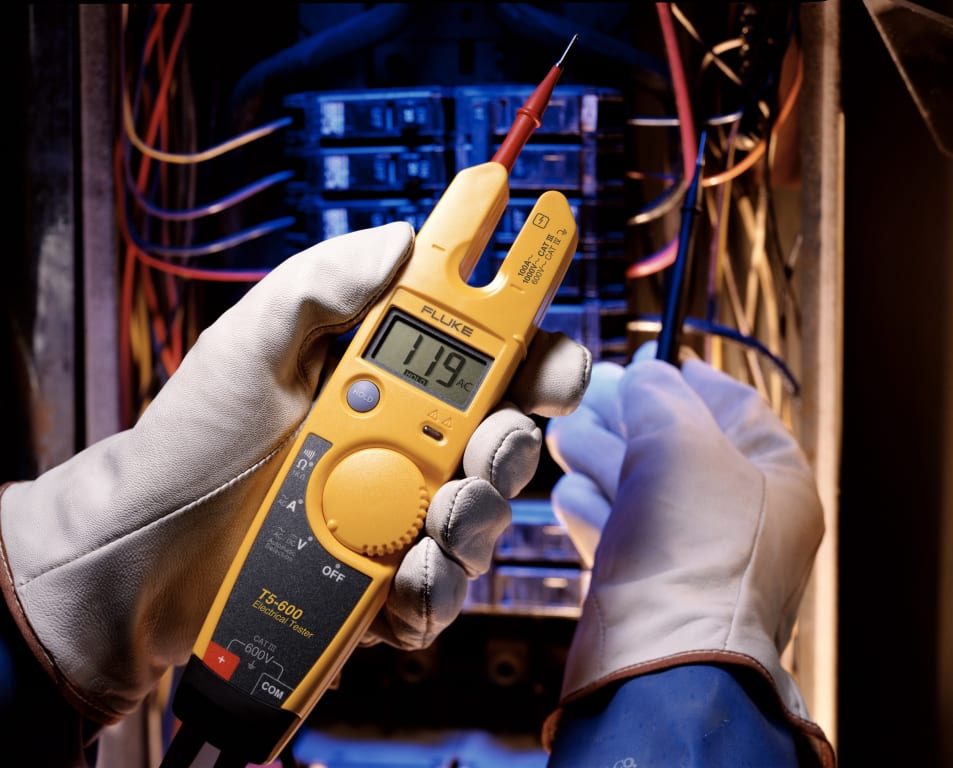

The T5-600 Electrical Tester is a versatile troubleshooting tool you can carry to every job site. Use it to check voltage, continuity, and current, all with one compact, rugged tool. Just select volts, ohms, or current and the tester does the rest.

Measure current up to 100 A without breaking the circuit with OpenJaw design

The trendsetting OpenJaw design allows for fast and easy current measurement, safely and without metallic contact to a live conductor. The integrated protection circuit allows it to stay connected to a voltage source longer than a solenoid tester would be able to. The T5-600 is also designed to:

• Withstand a 10 ft. (3 m) drop
• Conserve battery life with auto-off mode
• Fit in one hand with handy probe storage in the back of the holster
• Accept Fluke accessory test clips with the test leads

Meter automatically selects AC or DC voltage for tests up to 600 V

Voltage tests are faster and easier than ever before. Just turn the knob to voltage (V) and place your leads on the test points. The T5-600 auto-selects either AC or DC voltage, depending on what is detected. This meter is suitable for both residential or commercial applications and is designed to keep you safe with a CAT III 600 V rating.
