Fluke CV400 Thermal Imager IR Windows – Nominal Diameter: 4 IN, Viewing Apeture Diameter: 3.5 IN, Viewing Aperture Area: 9.35 in²
34 people are viewing this product right now
Original price was: $879.98.$748.51Current price is: $748.51.
Shipping calculated at checkout.
Estimated delivery:3 days
4 IN (95MM) HAND TURN DOOR LATCH
- 4 inches (95 Millimeter) IR Window, Hand Turn Door Latch
- Quick, easy installation in under 5 minutes with one technician—no need to remove the panel door.
- Tested to the highest available arc-blast rating, 63kA at KEMA, customers can rest-assure these windows will maintain critical equipment ratings when installed
- ClirVu coating system eliminates moisture degradation helps repel airborne dust and grime keeping both sides of the window clean
- AutoGround, only available on Fluke IR Windows – automatically grounds upon installation for maximum safety and compliance. No additional steps or testing required
- IP67 rating for years of maintenance-free operation in any environment
- Limited-lifetime warranty
Guarantee Safe and Secure Payment Checkout
Description

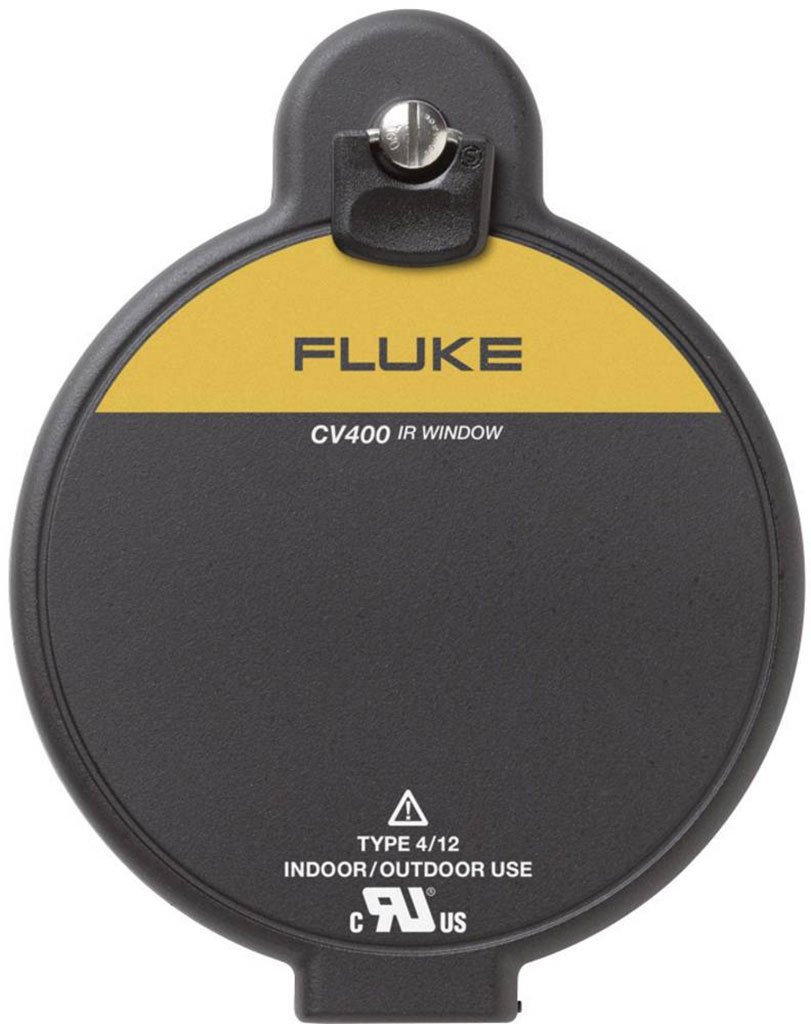

Fluke CV400 ClirVu 95 mm (4 in) Infrared Window
- 4 inches (95 Millimeter) IR Window, Hand Turn Door Latch
- Quick, easy installation in under 5 minutes with one technician—no need to remove the panel door.
- Tested to the highest available arc-blast rating, 63kA at KEMA, customers can rest-assure these windows will maintain critical equipment ratings when installed
The ClirVu coating – exclusive to Fluke infrared windows – seals the optic prior to assembly to protect against moisture degradation making it perfect for very hot and very cold environments.
Safety without sacrifice.
Increase the safety and speed of electrical thermal imaging inspections with the new Fluke ClirVu IR Windows. Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.
Thermal Imagers/IR Windows for Thermal Imagers Template | |
|---|---|
| Nominal Diameter | 4 IN |
| Viewing Apeture Diameter | 3.5 IN |
| Viewing Aperture Area | 9.35 in² |
| Thickness | 4 MM |
| Install with Greenlee Punch | Yes |
| Security Key Door Latch | Yes |
Product General Attributes | |
| Unique Features | Work more efficiently with Fluke ClirVu® CV400 95 mm (4 in) Infrared Windows. NFPA 70E processes significantly reduced due to less work permit requirements. Faster and more comfortable inspections because full PPE is often not required. Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance. CV400 is Torture Tested™ to the highest arc blast test ratings IEEE C37.20.7: 63 kA Arc tested at KEMA, UL 50/50E/50V, UL1558, IEC60529-1: IP67, IEC 60068, NEMA 4/12, CSA C22.2 NO. 14-13:2012, and CE. Convenience of both quick turn or security keyed access. |
| IP Rating | IP67 |
| Product Weight | 4.19 LBS |
| Product Height | 7.45 IN |
| Product Length | 0.9 IN |
| Product Width | 5.79 IN |
| Shipping Weight | 4.61 LBS |
| Data Logging | No |
| Calibration Included | None |
| Country of Origin | China |
| Shipping Height | 12.6 IN |
| UPC | 095969667081 |
| Shipping Length | 5.51 IN |
| Shipping Width | 10.63 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsApplication Notes
- Fluke Concerned about arc flash? Application Note
- UL Recognized and UL Listed Application Note
- Fluke IR Window field of view Application Note
- Fluke Concerned about arc flash? Application Note
- Understanding and Fixing Infrared Thermography Issues on Reflective Surfaces - Application Note
- Thermal Imaging Inspection Checklist - Application Note
- What to Consider When Adding Thermal Imaging to your Business - Application Note
| Weight | 4.19 lbs |
|---|---|
| Dimensions | 0.9 × 5.79 × 7.45 in |
