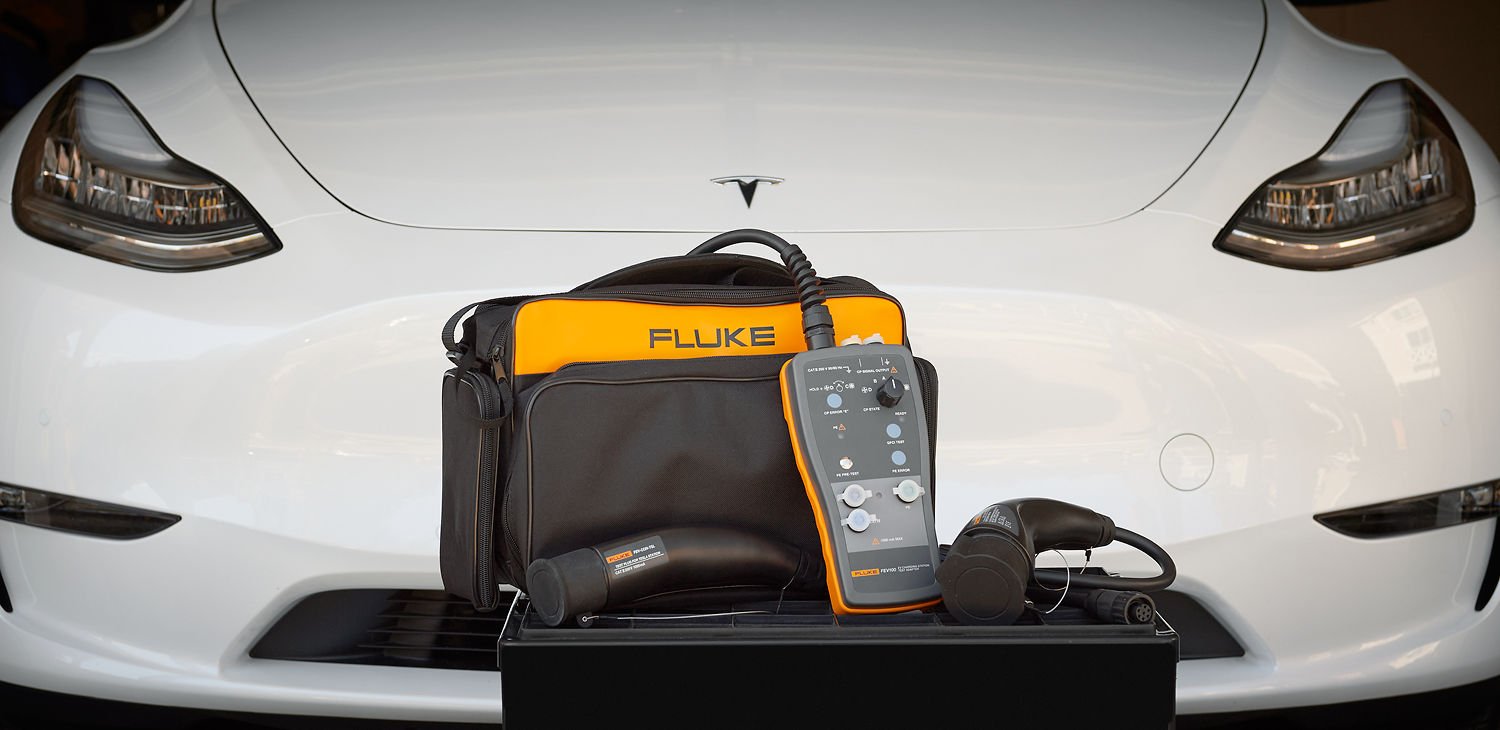

Fluke FEV100/TY1 & TSL – EV Kit with FEV100 Test Adapter and Connector for Tesla Station

• Test the safety and performance of a type 1, level 1 or level 2 electric vehicle ac charging station (EVSE)
• Connector included for testing Tesla AC wall connectors for residential, commercial charging locations
• Includes adaptor that simulates electrical vehicle to test the functionality and safety of EVSE
• Perform GFCI troubleshooting of electric vehicle charging station, verify proper functioning for safety
• Grounding system pre-test (PE Pre-Test) verifies no presence of dangerous voltage at ground terminal​

Test the safety and performance of a type 1, level 1 or level 2 electric vehicle ac charging stations (EVSEs) including Tesla AC wall connectors for residential or commercial destination charging locations with the Fluke FEV100 kit connector for Tesla stations. With over 35,000 Tesla Wall connectors at destination sites there is a growing need for a Tesla type connector in addition to the standard Type 1 connector. With this kit, it’s easy to verify an EV charging station is working properly after install and during periodic maintenance, or troubleshoot an EVSE if it is not delivering the appropriate charge

EVSE charging cables may become damaged over the course of use, increasing electric shock risks to users. Stay protected from and check the risk of electric shock with the GFCI trip test. This function verifies the breaker of the EVSE is connected by detecting ground faults. Additionally, the PE grounding protection pre-test veri fies that there is no presence of dangerous voltage at the ground terminal.

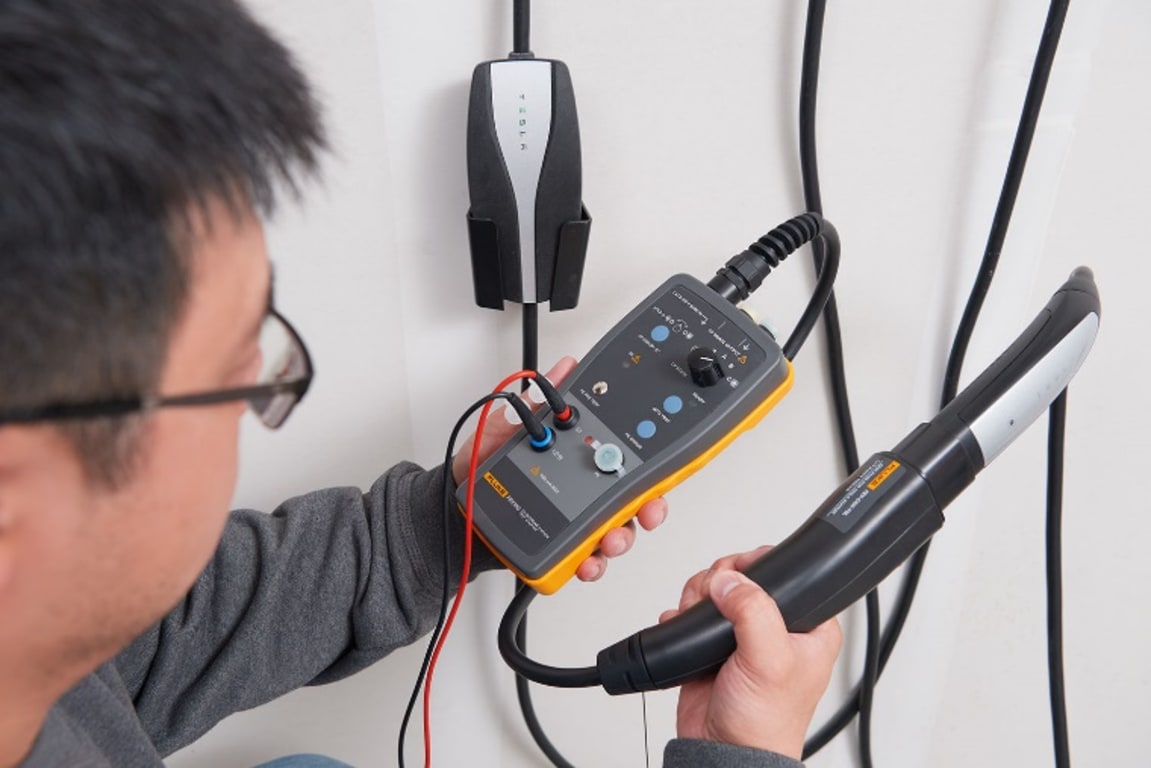

Perform a variety of tests including ground fault checks, insulation of wires, measuring voltage and duty cycle to see max current available for charging all with one adapter that safely integrates with the Fluke portfolio of test and measurement tools. There is no need to bring an electric vehicle onsite for EVSE troubleshooting: the adapter acts as an electric vehicle when connected to an EVSE for easy performance and maintenance testing.

A connector for Tesla Station is included.

*Please note the Fluke connector for Tesla station does not work with the Tesla Superchargers or any other DC fast charging sta tions. Do not attempt to use this adapter with DC fast chargers.

• Vehicle Simulation – CP Control Pilot state simulation tests different charging states
• Tesla Connector – testing Tesla AC wall connectors for residential, commercial charging locations
• Grounding Protection – PE Pre-Test for dangerous voltage
• GFCI Testing – Stay protected from and check risk of electric shock
• Compatibility – Integrates into Fluke portfolio of test and measurement tools
• SAE J1772 – Complies with North American standards

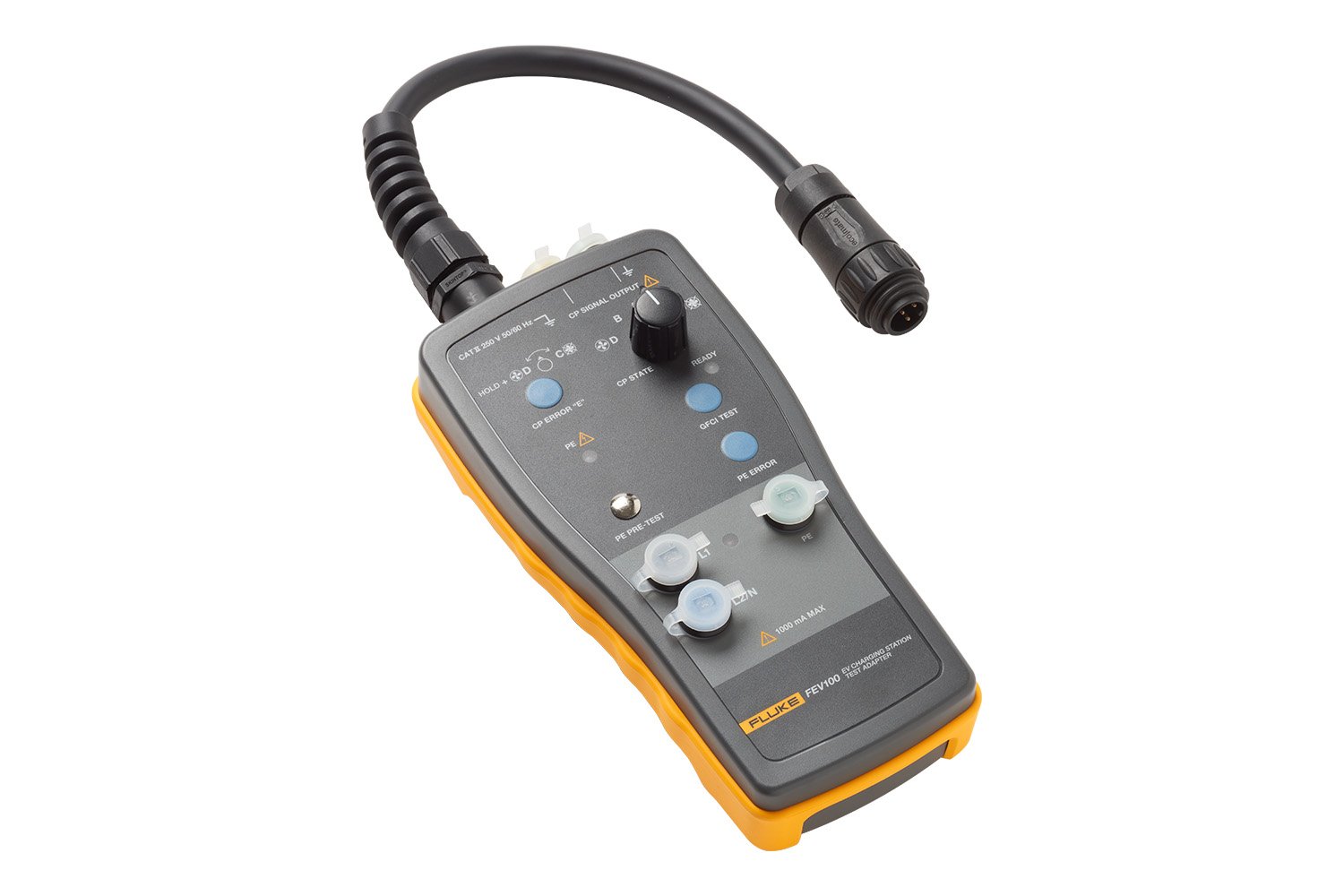

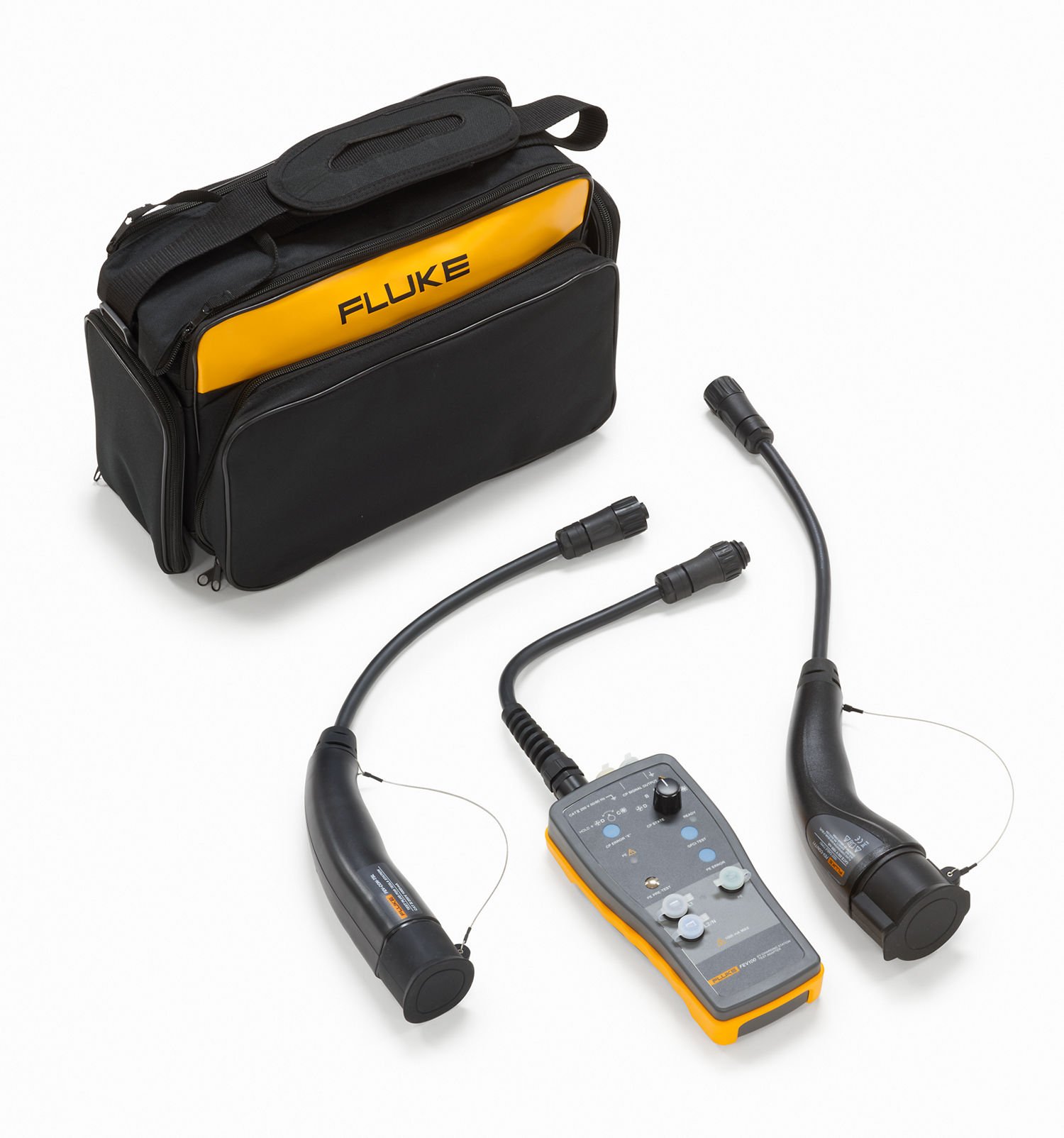

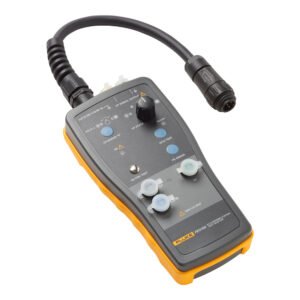

• Fluke FEV100/BASIC Test Adapter
• Fluke FEV-CON/TY1 Type 1 Connector and Cable

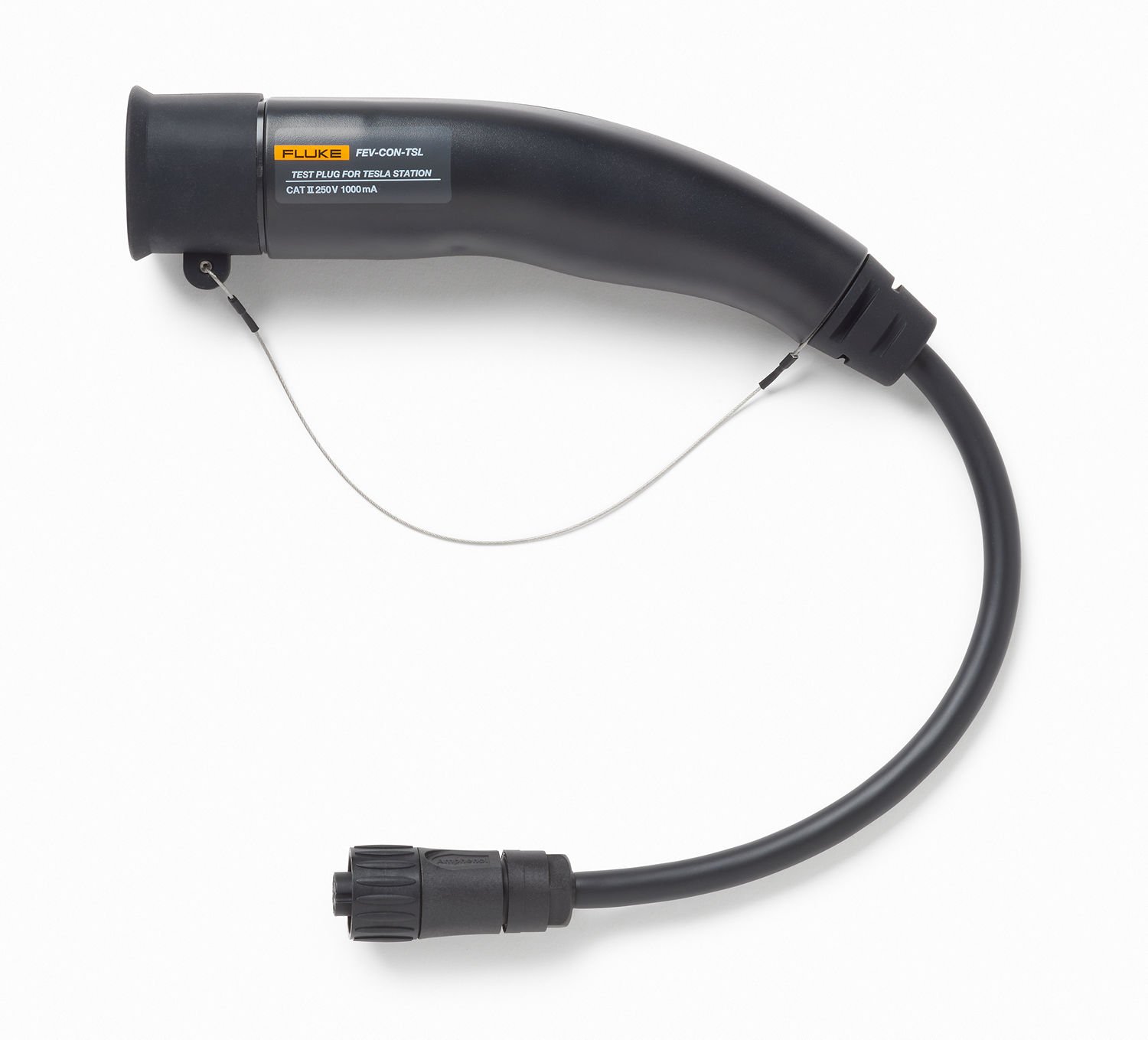

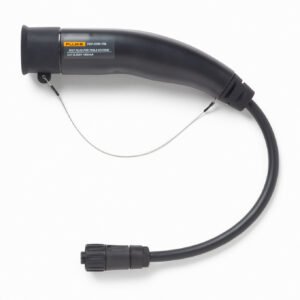

• Fluke FEV-CON-TSL Tesla Type Connector and Cable
• Soft Carrying Case
