Description

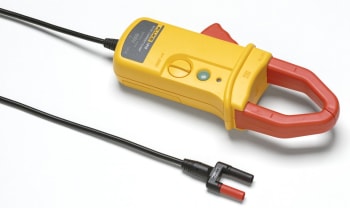

Fluke I410 – AC/DC Current Clamp Adaptor
- Battery-powered Hall-effect probe measures 1A to 400 A
- 1mV/Amp output guarantees easy reading on your meter
- Take accurate current readings without breaking the circuit
- Maximum conductor Ø 32 mm
The Fluke i410 AC/DC current clamp expands the functionality of digital multimeters and measures up to 400 amps for both AC and DC current. The Large clamp claw gives you access to difficult to reach areas. The kit includes a handy carrying case.
Features and Connections
- Jaw Lever
- Jaw Centering Marks
- ON Indicator
- ON/OFF Switch
- Zero Adjust
- Battery Access
- Output Cable
- Tactile Barrier
Minimum voltmeter requirements:
- Accepts safetyshrouded banana plugs.
- Can display 1 mV (0.1 mV preferred)
- Accuracy ≥ 0.75 %
- Input impedance ≥ 1 MΩ, ≤100 pF.
Clamp Meters/Current Clamp Adaptors / Current Clamps Template | |
|---|---|
| Type (Current Clamp Adaptors | CT |
| Maximum Current AC | 400 A |
| Maximum Current DC | 400 A |
| Maximum Conductor Size | 1.18 IN |
Product General Attributes | |
| Warranty | 1 YEARS |
| Product Weight | 1.47 LBS |
| Product Height | 1.87 IN |
| Product Length | 8.21 IN |
| Product Width | 3.09 IN |
| Calibration Included | Factory Calibration |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Thailand |
