Fluke LIQ-KIT-VFL-FBRLRT – LinkIQ Essential Copper Fiber Troubleshooting Kit

• LinkIQ Essential Copper Fiber Troubleshooting Kit
• Validate Cable Performance up to 10GBASE-T via frequency-based measurements
• Get connected switch data rate, switch name, IP address, port number, and VLAN
• Detect the PoE class (1-8) and power, and perform a load test
• Test connectivity to TCP/IP network through IP configuration and pingQualify Copper Cable to 10 Gb/s

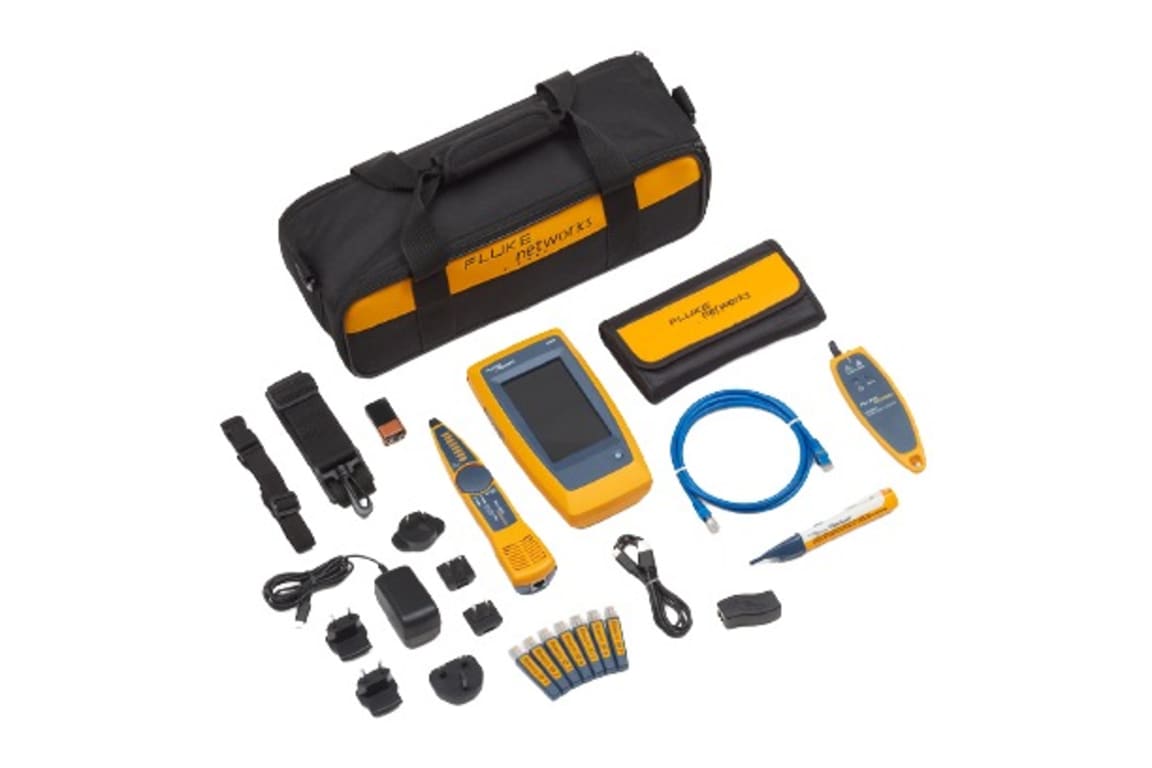

LinkIQ Essential Copper Fiber Troubleshooting Kit includes:

• LinkIQ Cable+Network tester with remote IDs #1-7, RJ45-RJ45 patch cord, AC charger, RJ45/11 universal coupler
• IntelliTone Pro 200 probe and duffle bag carrying case
• VisiFault Visual Fault Locator with 2.5mm universal adapter, two AAA batteries
• FiberLert live fiber detector, 850 nm to 1625 nm with two AAA batteries

The LinkIQ Cable+Network Tester is the trusted solution to verify cable performance up to 10G and solve network connectivity problems.

LinkIQ validates cable performance using frequency-based measurements to calculate maximum bandwidth (10BASE-T to 10GBASE-T), which ensures that tested links meet performance requirements.

LinkIQ also performs ping tests to verify connectivity and provides nearest switch diagnostics including advertised data rate, switch name, IP address, port number, and VLAN information, plus PoE testing and load test up to Class 8 (90 W). Ethernet Alliance PoE Certified for reliable multivendor interoperability.

Additional features include: Cable Toning, Port Blink, Remote Office Locators, and the ability to manage results via LinkWare PC.
