Name: Fluke Networks 52801009 TS52 PRO Test Set with ABN - NESTES Instruments
SKU: Fluke Networks 52801009
Price: 676.82 USD
Availability: InStock

Description

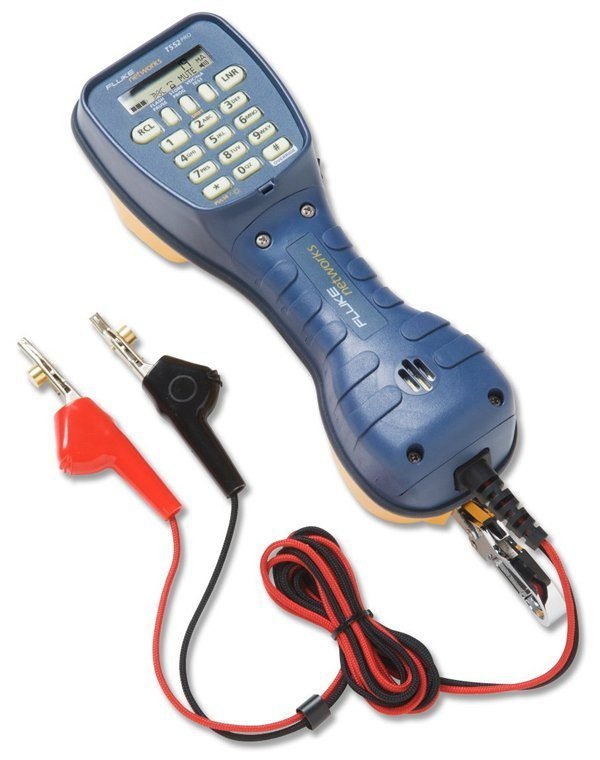

Fluke Networks 52801009 TS52 PRO Test Set with ABN/PP Clips

DataSafe Pro

Superior high-impedance monitoring, lockout and override, making you completely safe in any mode

DropSafe and RainSafe

Passes 20-foot drop test, Designed for use in rain conditions

DSL/POTS Filtering Technology

Allows technicians to clip on a live DSL line to test POTS service without downing or disrupting data service

Fluke Networks’ new TS®52 PRO Test Set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment.

The back lit LCD and phosphorescent (glow-in-the-dark) keypad brings light to even the darkest of work environments, providing perfect line diagnostic clarity.

The TS®52 PRO Test Set is also equipped with 2-WaySpeakerphone and DataSafe™ Pro data protection technology featuring superior high-impedance monitoring, Data Lockout and Lockout Override, making you completely safe.

Handy features

This easy-to-use unit comes with all the features that make a technician more productive, including a crystal clear LCD (liquid crystal display) with backlight, caller-id, a high-fidelity, two-way hands-free amplified speakerphone, speed dialing, a low battery warning indicator and a rugged oversized locking belt clip for universal needs.

Data protection for your network:

DataSafe (Extended range high-impedance)
Data lockout with single button override

Testing benefits that increase your productivity:

Caller-ID
DTMF Digit Grabbing
Data indication/warning
Voltage indication
Current (mA) indication
Visual ANAC Mode (Automatic Number Announcement Circuit)

Durability and design that exceeds your needs:

LCD (Liquid Crystal Display) with backlight
DropSafe 20 feet
Enhanced weatherproof/ waterproof case design
Line cord strain relief
Low profile keypad with protection ridge
Mountable, top or bottom, extra large metal locking belt clip

Display: Easy-to-read Visual Indicator Icons

TS52 PRO Test Set Quick Guide
Feature	Operation
Data Test/ Lockout Override	Connect the unit to Tip and Ring and move the T/M switch to T. If high speed data is present, a warning beep sounds, the test set will lockout, will not go off-hook, and the display shows LOCKOUT. If there is no high speed data, the unit will go off-hook. If the test set is locked out and you are certain that you want to go off-hook, press the OVERRIDE key.
Line Voltage Test	In Monitor mode, press the Vdc/mA TEST key.
Loop Current Test	Switch to Talk mode and press the Vdc/mA TEST key.
Redial the Last Number Dialed	Switch to Talk mode and press the LNR key.
Pulse Dialing	By default the unit is configured to Tone dial. Any time the test set goes off-hook, it is automatically set to tone dialing. If you want to Pulse dial, switch to Talk mode and once off-hook, press the SHIFT (STORE PROG) key and then the PULSE key to change the dialing mode to pulse dialing. You can then enter the number to call.
Program Speed Dial Numbers	Switch to Monitor mode and press RCL. Enter the number to be stored. Press STORE/PROG, then press the number of the memory location (0-9) where you want to store it. The test set gives a confirmation tone and the display shows STORED. Dialing a number from Speed Dial location 9 automatically puts the test set into Visual ANAC mode and the test set is muted.
Set Receive-Only Loud Speaker as Default(for use in noisy environments)	Switch to Monitor mode and press STORE/PROG, then press MUTE. The confirmation tone sounds. To restore the Speakerphone as the default Speaker mode, repeat the above steps.
Speed Dial a Stored Number	Switch to Talk mode and press RCL. Press the key (0-9) of the memory location where the number is stored. The display shows the number being called.
Two-Way Speakerphone	Switch to Talk mode and press SPKR. Press SPKR again to deactivate. If you are listening only, press MUTE to activate the Receive-Only Loud Speaker. Press MUTE again to restore the two-way Speakerphone.
Turn on visual ANAC mode (For service provider use only, visual ANAC not available in all regions)	You can get a visual ANAC DTMF response by putting the test set in visual ANAC mode. Use speed dial location 9 or switch to Talk mode, press the STORE/PROG key and then the # key. When you dial your ANAC number, the number that you are dialing from is shown on the display and the test set is muted.
Display and Backlight	Turn on the display by switching to Talk mode or press the VOL or Vdc/mA TEST key in Monitor mode. Turn on or off the backlight in Monitor mode by pressing STORE/PROG followed by *. The default is off, this conserves battery power.
DTMF Digit Grabbing	Switch to Monitor mode, press the STORE/PROG key and then the Vdc/mA TEST key. Digit grabbing is deactivated when the display times out.
Caller ID	The display shows the Caller ID (CID) after the first ring while in Monitor mode. The CID messages are: The incoming phone number Blocked (if CID is blocked by the originating device) Line error (CID data is incomplete) Unknown ID (CID is not available) Lines carrying high speed data and voice must have a splitter (filter) to detect Caller ID.
Polarity	If normal, no icon is displayed. If reversed, the icon is shown.

Telephone Butt-In Test Sets Comparison Chart
	TS®54 TDR	TS®52 PRO	TS®22A	TS®22	TS®25D	TS®30 / TS®120*	TS®19
TDR for distance to Open, Shorts	✔
Built-in toner	✔
Display—backlit LCD and glow-in-the-the dark keypad	✔	✔			LCD only
Extended range high-impedance DataSafe operation in monitor mode	✔	✔			✔
High-impedance DataSafe™ operation in monitor mode	✔	✔	✔		✔	✔	✔
Data lockout protection	✔	✔			✔
DSL/POTS filtering technology	✔	✔			✔
Low/high voltage indication	✔	✔			✔
Low current (mA) indication	✔	✔			✔
Over voltage and current protection	✔	✔	✔	✔	✔	✔
Waterproof—exceeds American Military Spec. MIL-STD-810E	✔	✔
RainSafe™—safe in severe weather conditions	✔	✔	✔	✔		✔
DropSafe™—passes 20 foot (6 meter) drop test onto concrete	✔	✔	✔	✔		✔
Stores nine 18-digit numbers in repertory dialer (speed dialing)	✔	✔	✔	✔	✔
*TS120 for outside North America only. 67/33 break/make ratio.

Product General Attributes
Product Height	4.00 IN
Product Length	13.50 IN
Product Width	4.50 IN
Country of Origin	China
Shipping Height	4.00 IN
Shipping Length	13.50 IN
Shipping Width	4.50 IN

Reviews

There are no reviews yet.

Be the first to review “Fluke Networks 52801009 TS52 PRO Test Set with ABN”

You must be logged in to post a review.

Manuals/Guides

Brochures

Manuals

Spec Sheets

Fluke Networks PRO LCD Test Set Data Sheet

Other

Dimensions	13.5 × 4.5 × 4 in
