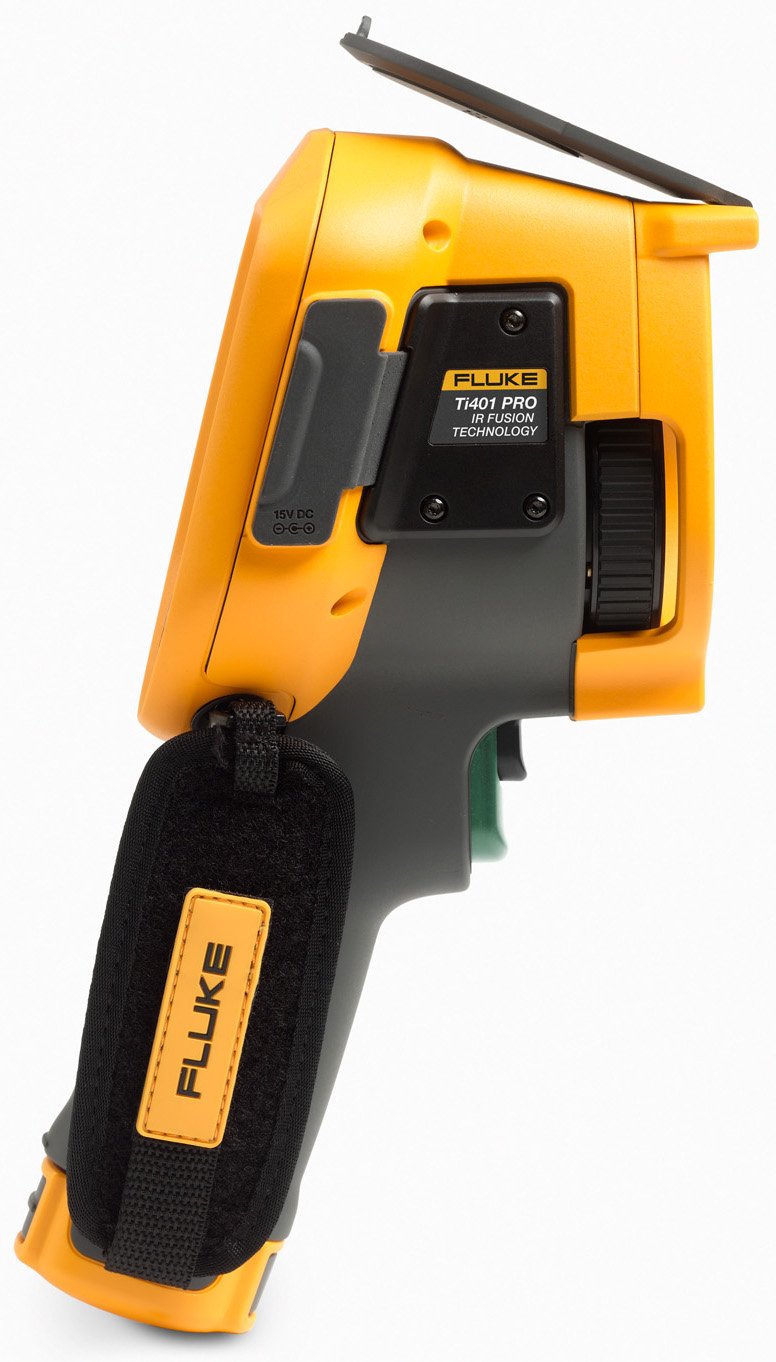

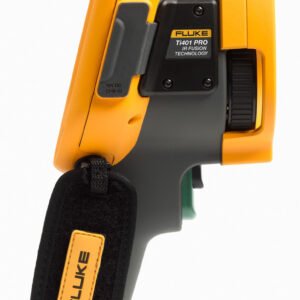

Fluke TI401-PRO 60HZ Thermal Imager
12 people are viewing this product right now
$12,429.98
Shipping calculated at checkout.
Estimated delivery:5 days
THERMAL IMAGER; HS1; 60 HZ
- Fluke Ti401 PRO 60HZ Thermal Imager
- Reduce the need to take notes in the field with two helpful features; IR-PhotoNotes and voice annotations
- Highlight areas that are outside your pre-set ‘normal’ temperature ranges quickly with color alarms
- Increased sensitivity to visualize temperature differences, NETD for the Ti401 PRO is ≤ 0.075 °C at 30 °C target temp (75 mK)
- Easier to visualize and diagnose issues with sharper on-screen images, multiple rectangle markers and 9 color palettes
- More intuitive visual interface, improved, user-tested, touch screen interface
- Save time-wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order. Make faster decisions by accessing inspection measurements from anywhere. Team members can instantly see the same data, at the inspection site and the office
- Capture a clear, accurate image focused throughout the field of view with MultiSharp Focus
- Get an instant in-focus image of your designated target. LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target
Guarantee Safe and Secure Payment Checkout
Description
Fluke Ti401 PRO 60HZ Thermal Imager
- Fluke Ti401 PRO 60HZ Thermal Imager
- Reduce the need to take notes in the field with two helpful features; IR-PhotoNotes and voice annotations
- Highlight areas that are outside your pre-set ‘normal’ temperature ranges quickly with color alarms
- Increased sensitivity to visualize temperature differences, NETD for the Ti401 PRO is ≤ 0.075 °C at 30 °C target temp (75 mK)
- More intuitive visual interface, improved, user-tested, touch screen interface
The Fluke PRO series cameras introduce a leading-edge visual infrared experience. Smartest, most intuitive user interface. Increased thermal sensitivity to capture the smallest differences. Latest technology for on-screen clarity. Lens compatibility to capture targets tiny-to-large.
Powerful, easy-to-use Fluke Connect
A comprehensive and connected platform that represents the future of integrated equipment maintenance, monitoring, analysis and reporting. It’s easier than ever to optimize thermal images, perform analytics, generate quick, customizable, robust reports, and export images to the format of your choice in the cloud. And you will be able to integrate with Fluke Connect—the largest integrated system of maintenance software and tools in the world.
- Modern visual design
- Intuitive navigation – easier to learn, easier and faster to work in
- Simplified work flows
- Simplified reporting workflow and better report templates
- Fluke Connect Cloud storage
100 % Focused–Every object. Near and far. MultiSharp Focus. | |
 |  |
| Manual focus | MultiSharp Focus, available on the Ti450 PRO |
Thermal Imagers/Building and Industrial Thermal Imagers Template | |
|---|---|
| Detector Size | 640 x 480 Sensor |
| Thermal Sensitivity | 75 mK (NETD) |
| Temperature Range Max | 1202 F |
| Temperature Range Min | -4 F |
| Image Frequency | 60 Hz |
| Field of View | 34 x 24 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | No |
| Focus | Auto Focus |
| Laser Spot | Yes |
| Picture in Picture | Yes |
| Video Recording | No |
| Moveable Spots | No |
| Touch Screen Display | Yes |
| Minimum Focus Distance | 6 IN (0.152 M) |
| Accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| Battery operating time Continuous | 3 HR |
| Camera Light | Yes |
| IR Digital Zoom | No |
| Voice Annotation | Yes |
| Intrinsically Safe | No |
Product General Attributes | |
| Unique Features | LaserSharp™ Auto Focus Smart Lenses IR-Fusion™ technology One-handed image capture, review, and save capability IR-PhotoNotes Yes – 2 images Standard palettes 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted User defined measurement box: expandable-contractible measurement box with MIN-MAX-AVG temp display Hard Case Rugged, hard carrying case; soft transport bag Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
| Warranty | 2 YEARS |
| Warranty Details | Two-years (standard), extended warranties are available |
| Safety Approval | RoHS |
| Interfaces I/O | HDMI, USB |
| Storage | Micro SD |
| IP Rating | IP54 |
| Product Weight | 2.3 LBS |
| Product Height | 10.9 IN |
| Product Length | 6.5 IN |
| Product Width | 4.8 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027504020 |
| ECCN Number | 6A003.b.4.b |
| Calibration Included | None |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 11.02 IN |
| Shipping Length | 15.35 IN |
| Shipping Width | 12.20 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresManuals
- Fluke Ti401 PRO Quick Reference Guide
- Fluke Professional Series Thermal Imagers - Manual
- Fluke Advanced Thermal Imaging Buying Guide
| Weight | 2.3 lbs |
|---|---|
| Dimensions | 6.5 × 4.8 × 10.9 in |
