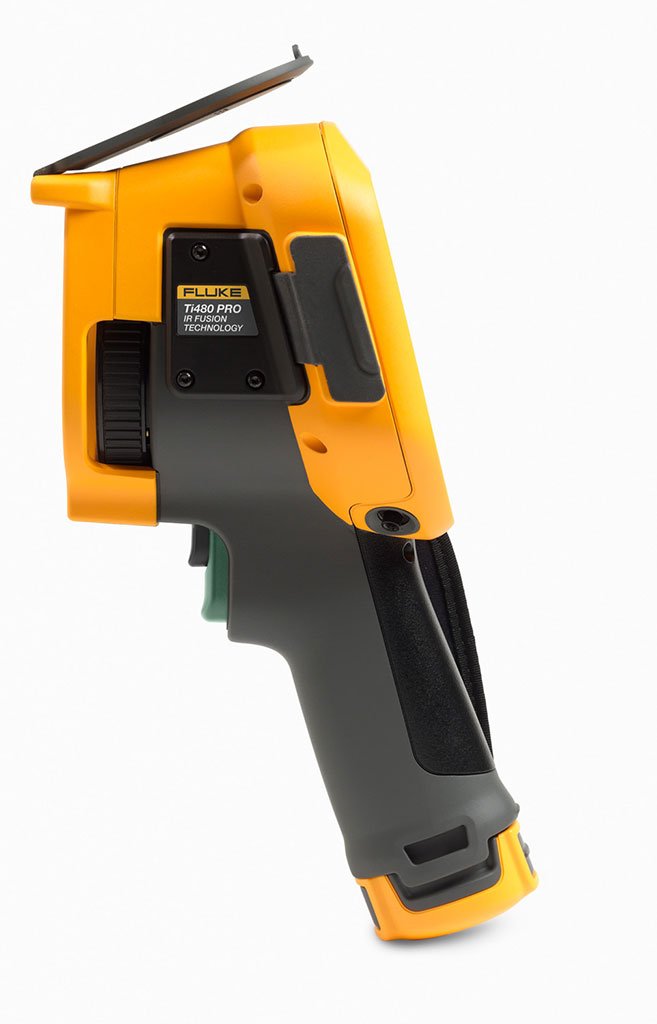

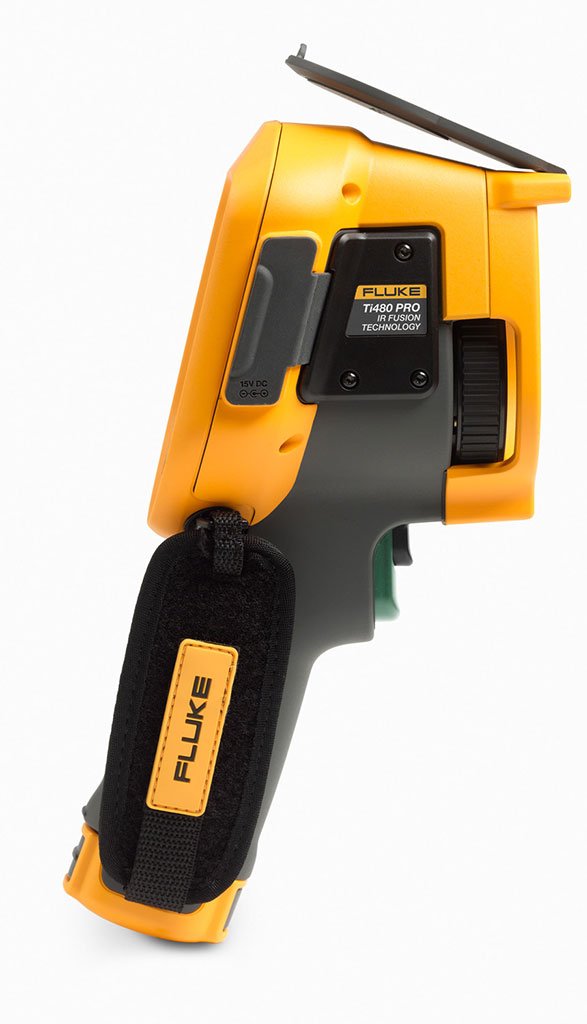

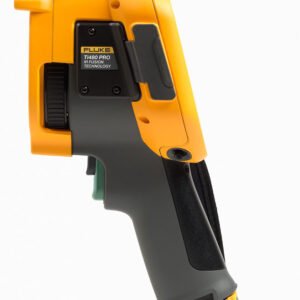

Fluke Ti480 PRO 60HZ Thermal Imager
36 people are viewing this product right now
$14,739.98
Shipping calculated at checkout.
Estimated delivery:5 days
TI480 PRO 60 Hz, 640 x 480, .93 mRad High-Performance Infrared Thermal Imaging Camera with Connect, 14 Degree F to 1832 Degree F
- Reduce the need to take notes in the field with two helpful features; IR-PhotoNotes and voice annotations
- Highlight areas that are outside your pre-set ‘normal’ temperature ranges quickly with color alarms
- Increased sensitivity to visualize temperature differences, NETD for the Ti480 PRO is ≤0.05 °C at 30 °C target temp (50 mK)
- Easier to visualize and diagnose issues with sharper on-screen images, multiple rectangle markers and 9 color palettes
- More intuitive visual interface, improved, user-tested, touch screen interface
- Save time-wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order. Make faster decisions by accessing inspection measurements from anywhere. Team members can instantly see the same data, at the inspection site and the office
- More flexibility to visualize targets-tiny to large with interchangeable smart lenses—no calibration required, 2x and 4x telephoto, wide angle and macro lenses are compatible with Ti480 PRO and Ti450 PRO
- Capture a clear, accurate image focused throughout the field of view with MultiSharp Focus
- Get an instant in-focus image of your designated target. LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target
- Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 1280 x 960 image (Ti480 PRO) or a 640 x 480 image (Ti450 PRO)
Guarantee Safe and Secure Payment Checkout
Description
Fluke Ti480 PRO 60HZ Thermal Imager
- Capture a clear, accurate image focused throughout the field of view with MultiSharp Focus
- Reduce the need to take notes in the field with two helpful features; IR-PhotoNotes and voice annotations
- Highlight areas that are outside your pre-set ‘normal’ temperature ranges quickly with color alarms
- More intuitive visual interface, improved, user-tested, touch screen interface
The Fluke PRO series cameras introduce a leading-edge visual infrared experience. Smartest, most intuitive user interface. Increased thermal sensitivity to capture the smallest differences. Latest technology for on-screen clarity. Lens compatibility to capture targets tiny-to-large.
Powerful, easy-to-use Fluke Connect
A comprehensive and connected platform that represents the future of integrated equipment maintenance, monitoring, analysis and reporting. It’s easier than ever to optimize thermal images, perform analytics, generate quick, customizable, robust reports, and export images to the format of your choice in the cloud. And you will be able to integrate with Fluke Connect—the largest integrated system of maintenance software and tools in the world.
- Modern visual design
- Intuitive navigation easier to learn, easier and faster to work in
- Simplified work flows
- Simplified reporting workflow and better report templates
- Fluke Connect Cloud storage
100 % Focused–Every object. Near and far. MultiSharp Focus.
Manual focus
MultiSharp Focus, available on the Ti450 PRO
Preventive maintenance simplified. Rework eliminated.
Save time and improve the reliability of your maintenance data by wirelessly syncing measurements using the Fluke Connect system.
- Eliminate data-entry errors by saving measurements directly from the tool and associating them with the work order, report or asset record.
- Maximize uptime and make confident maintenance decisions with data you can trust and trace.
- Move away from clipboards, notebooks and multiple spreadsheets with a wireless one-step measurement transfer.
- Access baseline, historical and current measurements by asset.
- Share your measurement data using ShareLiveTM video calls and emails.
- The Ti450 PRO and Ti480 PRO infrared cameras are part of a growing system of connected test tools and equipment maintenance software. Visit the website to learn more about the Fluke Connect system.
Thermal Imagers/Building and Industrial Thermal Imagers Template | |
|---|---|
| Detector Size | 640 x 480 Sensor |
| Thermal Sensitivity | 50 mK (NETD) |
| Temperature Range Max | 1832 F |
| Temperature Range Min | -14 F |
| Image Frequency | 60 Hz |
| Field of View | 34 x 24 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | Yes |
| Focus | Adjustable and Fixed |
| Laser Spot | Yes |
| Picture in Picture | Yes |
| Video Recording | Yes |
| Moveable Spots | Yes |
| Touch Screen Display | Yes |
| Minimum Focus Distance | 6 IN (0.152 M) |
| Accuracy | ± 2 °C or 2% (at 25 °C nominal, whichever is greater) |
| Battery operating time Continuous | 3 HR |
| Camera Light | Yes |
| IR Digital Zoom | Yes |
| Voice Annotation | Yes |
Product General Attributes | |
| Unique Features | MultiSharp™ Focus. Keeps everything in view, in focus. SuperResolution mode makes images 640 x 480. IR Fusion® technology with AutoBlend™ mode. Communicate with other Fluke Connect devices. Interchangeable Smart Lenses, no calibration needed. LaserSharp® Auto Focus with Built in laser distance meter for consistently in-focus images. Every. Single. Time |
| Warranty | 2 YEARS |
| Warranty Details | Two-years (standard), extended warranties are available |
| Safety Approval | CSA, UL |
| Interfaces I/O | Bluetooth, Wifi, HDMI |
| Storage | Internal Memory, Micro SD, USB Flash Drive |
| IP Rating | IP54 |
| Product Weight | 2.3 LBS |
| Product Height | 10.9 IN |
| Product Length | 6.5 IN |
| Product Width | 4.8 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027.50.4020 |
| ECCN Number | 6A003.b.4.b |
| Calibration Included | None |
| Battery Type | Li-ion |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Country of Origin | United States |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsApplication Notes
- Fluke 5 Enhanced Features of Fluke Professional Series Infrared Cameras Application Notes
- Understanding and Fixing Infrared Thermography Issues on Reflective Surfaces - Application Note
- Thermal Imaging Inspection Checklist - Application Note
- What to Consider when Adding Thermal Imaging to your Business - Application Note
- Fluke Solar Energy Resources
| Weight | 2.3 lbs |
|---|---|
| Dimensions | 6.5 × 4.8 × 10.9 in |
