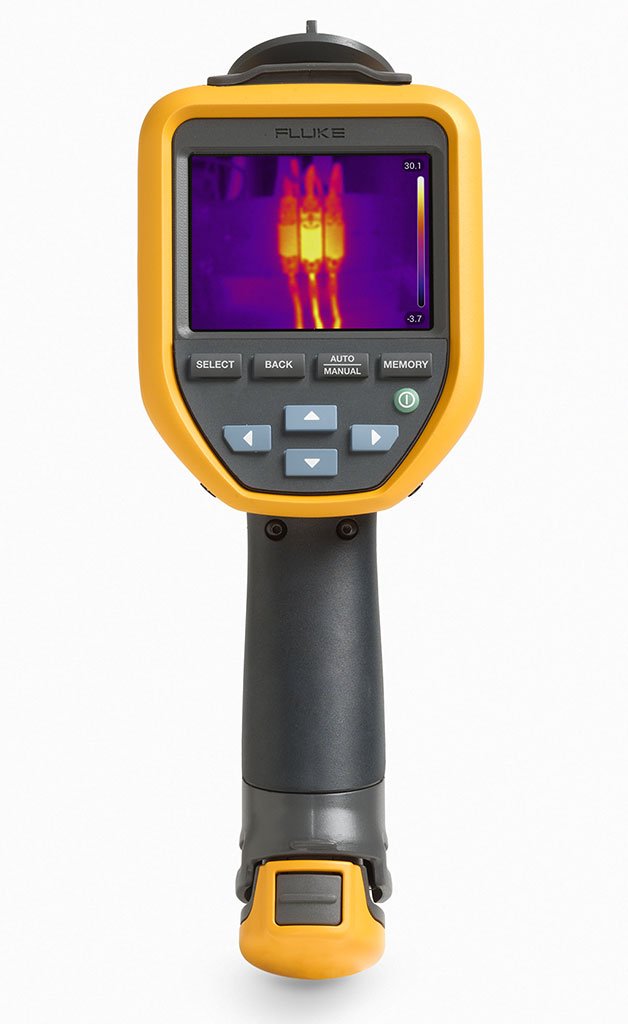

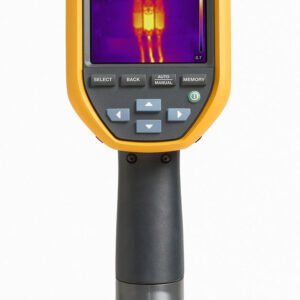

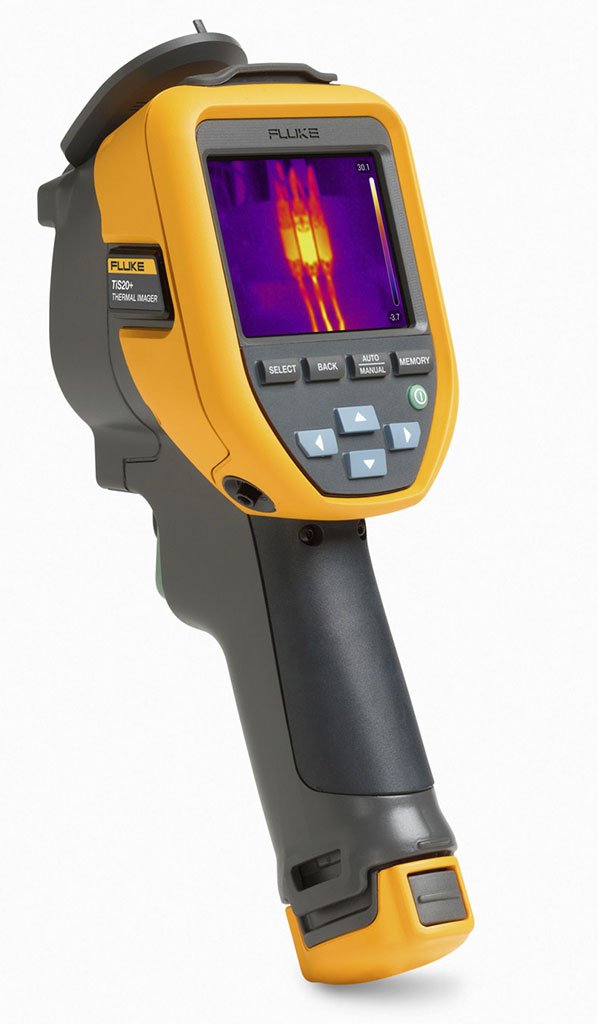

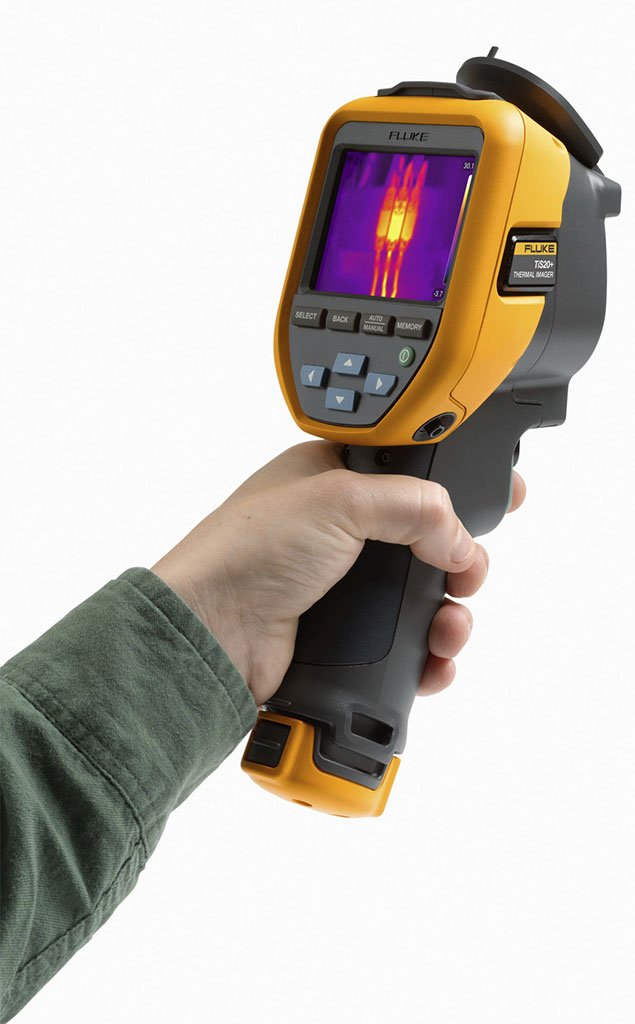

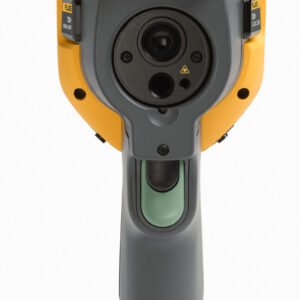

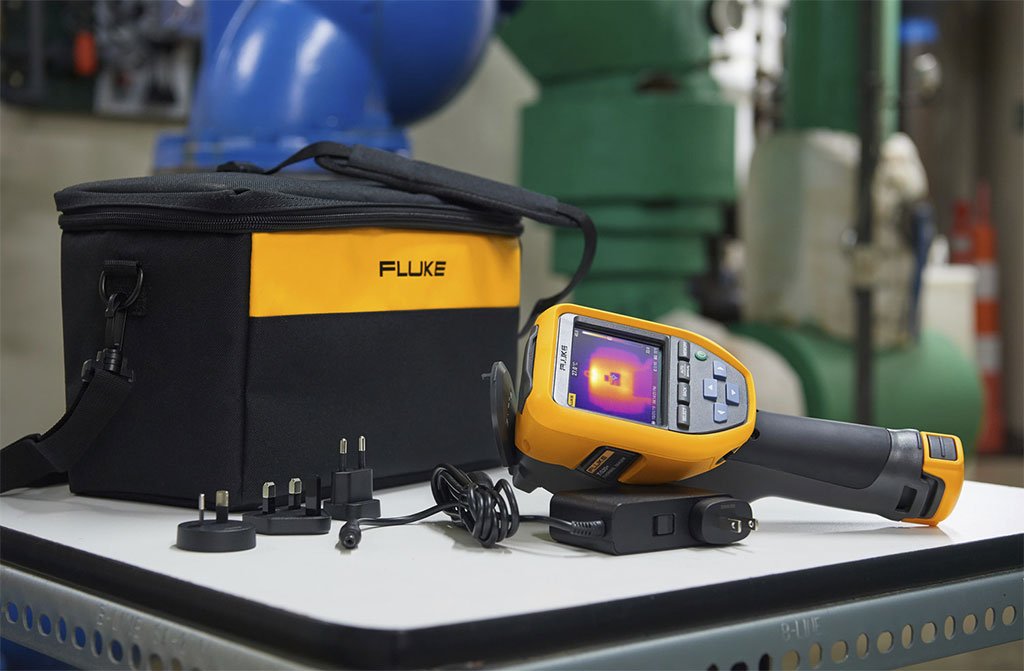

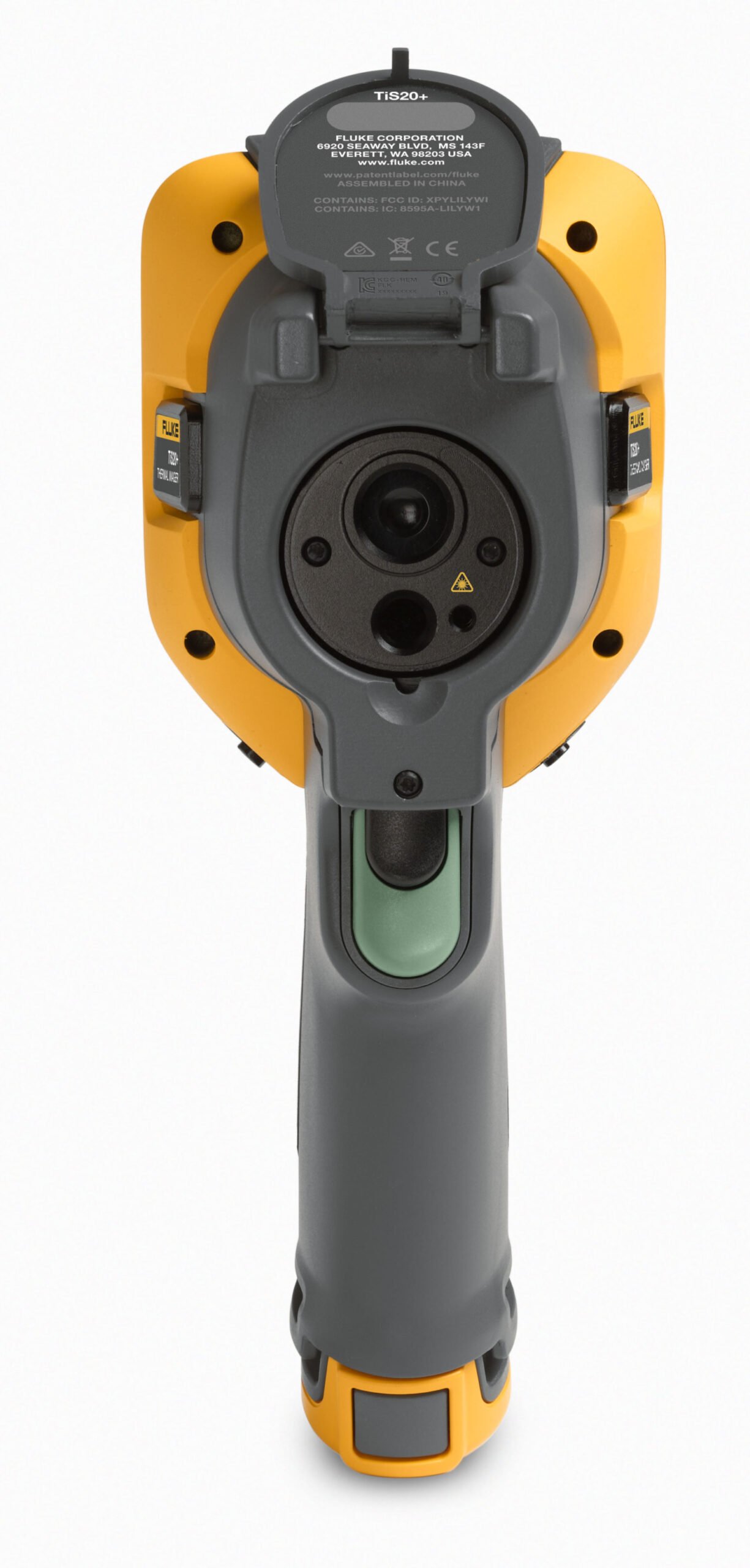

Fluke TIS20+ Max – 9Hz Thermal Camera (-4°F to 752 °F)
26 people are viewing this product right now
$2,364.98
Shipping calculated at checkout.
Estimated delivery:5 days
TiS20 Max
- 9Hz thermal camera
- Temperature range: -4°F to 752 °F
- Save time with the right level of infrared and analysis
- Continuous touchscreen IR-Fusion, slide your finger across the screen to adjust the setting
- 120 x 90 infrared resolution (10,800 pixels)
- 3.5″ LCD touchscreen display for easy troubleshooting
- Automatically sort images with Fluke Connect Asset Tagging
- Can withstand drop up to 2 meters
- Water and dust resistant – IP54 enclosure rating
- IR-Fusion technology combines visible and infrared images for faster inspections and better reporting
- Compatible with Fluke Connect
Guarantee Safe and Secure Payment Checkout
Description
Fluke TIS20+ Max – 9Hz Thermal Camera (-4°F to 752 °F)
- 9Hz thermal camera
- Temperature range: -4°F to 752 °F
- Save time with the right level of infrared and analysis
- Continuous touchscreen IR-Fusion, slide your finger across the screen to adjust the setting
- 120 x 90 infrared resolution (10,800 pixels)
Fluke TIS20+ Max is an easy to use thermal camera with very good image quality for everyday use. This camera is designed to make your job easier and quicker by empowering you to point, shoot, sort, and fix issues on the spot.
Save time with the right level of infrared and analysis
- Continuous touchscreen IR-Fusion, slide your finger across the screen to adjust the setting.
- 120 x 90 infrared resolution (10,800 pixels)
- 3.5″ LCD touchscreen display for easy troubleshooting
- Automatically sort images with Fluke Connect Asset Tagging
Rugged
Whether you are finding an uneven load on a switchgear or inspecting a ventilation system, the Fluke TIS20+ Max helps you detect issues quickly.
- Can withstand a drop up to 2 meters
- Water and dust resistant-IP54 enclosure rating
IR-Fusion
Fluke IR-Fusion technology combines visible and infrared images for faster inspections and better reporting. With a single touch, you can scan from full infrared to full visible images to pinpoint the location of an issue.
Full infrared image*
75 % blended image*
50 % blended image*
Full visible imageTIS20+ Max Benefits
- Asset Tagging
- Streamline image sorting and reporting
- IR-Fusion™ technology
- Blending and overlay give context to images
- Battery life
- 20% more than closest competitor
- Display Size
- 17% larger than the closest competitor
- Fluke Connect™
- Include measurements from other Fluke tools (voltage/current along with your IR image)
Thermal Imagers/Building and Industrial Thermal Imagers Template | |
|---|---|
| Detector Size | 120 x 90 Sensor |
| Thermal Sensitivity | 60 mK (NETD) |
| Temperature Range Max | 752 F |
| Temperature Range Min | -4 F |
| Image Frequency | 9 Hz |
| Field of View | 50×37.5 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | No |
| Focus | Fixed |
| Laser Spot | No |
| Picture in Picture | Yes |
| Video Recording | No |
| Moveable Spots | No |
| Touch Screen Display | Yes |
| Minimum Focus Distance | 20 IN (0.508 M) |
| Accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| Battery operating time Continuous | 5 HR |
| Camera Light | No |
| IR Digital Zoom | No |
| Voice Annotation | No |
| Intrinsically Safe | No |
Product General Attributes | |
| Unique Features | Fluke Connect IFOV (spatial resolution) 7.6 mRad, D:S 130:1 IR Fusion – AutoBlend continuous 0 % to 100 %. Adds the context of the visible details to One-handed image capture, review, and save capability |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Interfaces I/O | Wifi, USB |
| Storage | Internal Memory, Micro SD |
| IP Rating | IP54 |
| Product Height | 10.50 IN |
| Product Length | 5.70 IN |
| Product Width | 4.00 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027.50.4020 |
| ECCN Number | 6A993 |
| Calibration Included | None |
| Battery Type | Li-ion |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 5.7 × 4 × 10.5 in |
|---|
