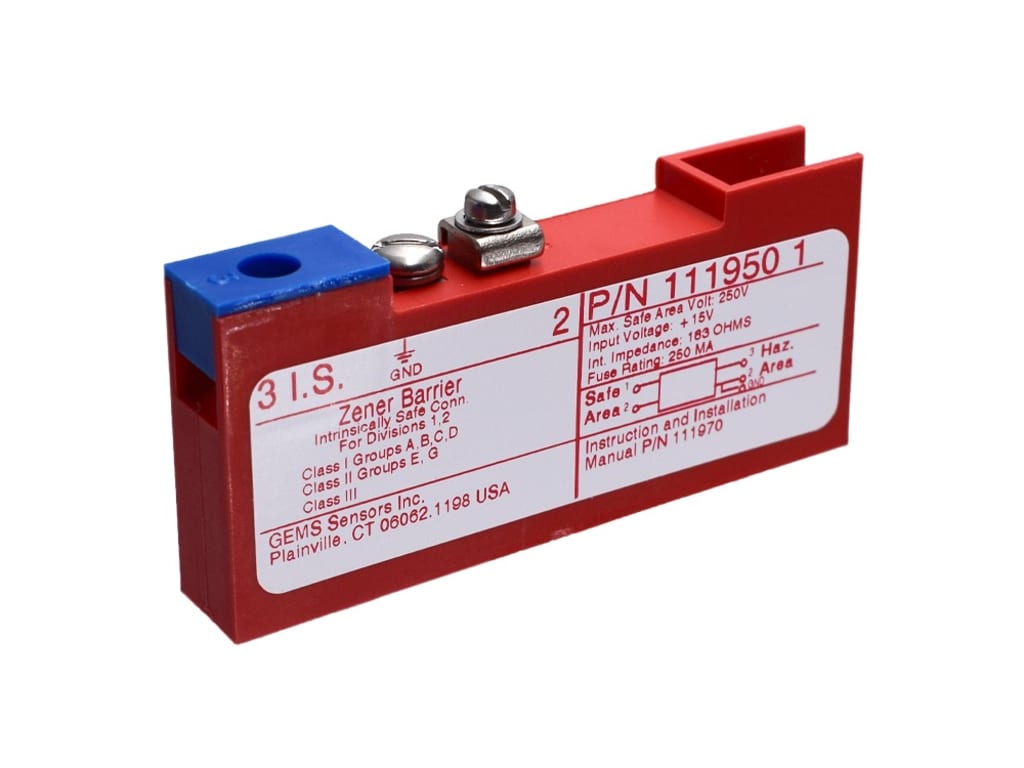

GEMS Sensors 113000 – 65800 Series Single Channel Zener Barrier

• Limits D.C. voltage and current to the hazardous area and provides a path for fault current
• Intrinsic safety with solid-state reliability
• Compact size streamlines installation
• Space-saving in multiples
• Encapsulated construction is impervious to dust and moisture

65800 Series units are exceptionally compact resulting in installation flexibility and simplification; especially in multiples on a common mounting plate. They provide great economy as well since no explosion-proof enclosures are needed for sensor wiring. Encapsulated construction is impervious to dust and moisture. Single-screw mounting is standard, but units can be supplied with an optional clip for rail mounting. The single through-mounting screw also provides an electrical connection to the ground through the earth-grounded mounting surface. Any non-voltage-producing sensor or switch is rendered intrinsically safe for hazardous locations when properly connected to the output of these Zener Barriers.
