Description
GEMS Sensors 138167
- General Purpose
- Variety of Mountings
- Economically priced
- Polysulfone or Nylon Housing and Prism
- Operating Temperature: 0 to 176°F

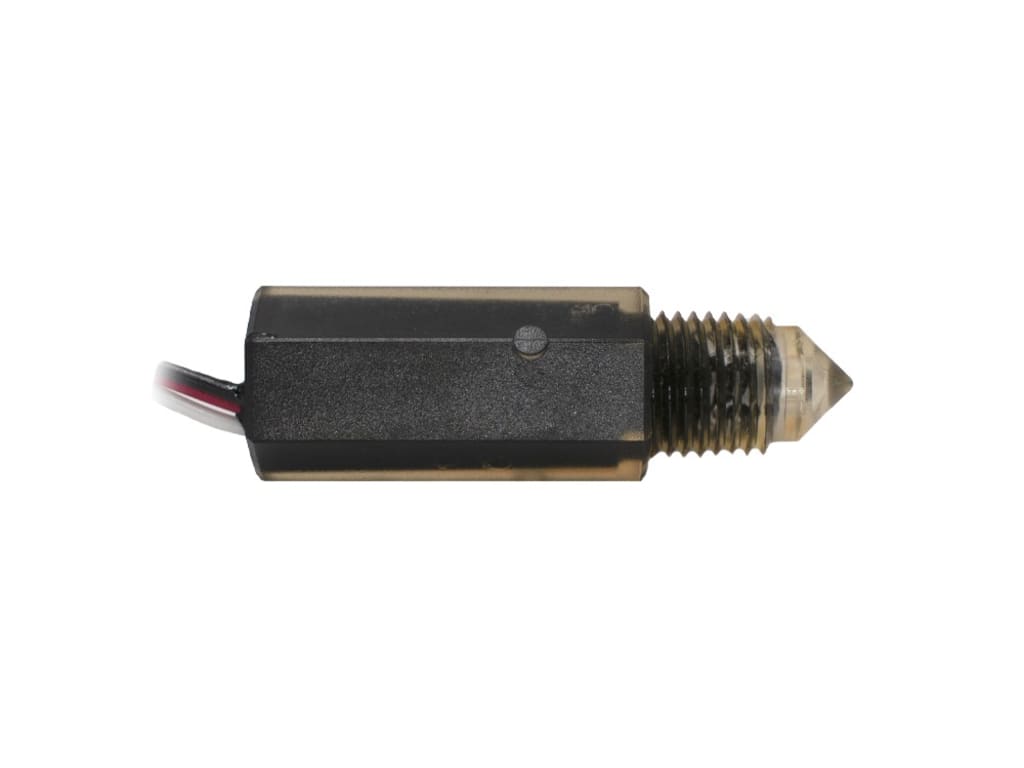

ELS-1100 Series Single Point Level Switch
ELS-1100 Series Single-Point Level Switch is a compact, economical, no-moving parts polysulfone level sensor with built-in switching electronics. A variety of mountings, power requirements and electrical terminations are available. These level switch units are suitable for high, low or intermediate level detection. Installation is simple and quick through the tank top, bottom or side. The sensor offers ±1 mm repeatability and broad liquid compatibility. They are not recommended for use in any liquid that crystallizes or leaves a solid residue.
level Switches template | |
|---|---|
| Type (Level) | Optical |
| Output Types (Level) | Switch |
| Process Connection | NPT (National Pipe Thread) |
| Electrical Connection (Process) | Flying Leads / Pigtail |
| Max Process Temperature | 176 F |
| Max Process Pressure | 150 psi |
Product General Attributes | |
| Safety Approval | CE, CSA, RoHS, UL |
| Product Weight | 0.125 LBS |
| Shipping Weight | 5.00 LBS |
| Country of Origin | United States |
