General Tools CIH20DL – Data Logging Hot Wire Anemometer with 8:1 IR Thermometer
10 people are viewing this product right now
Original price was: $560.43.$451.96Current price is: $451.96.
Shipping calculated at checkout.
Estimated delivery:5 days
DATA LOGGING HOT WIRE ANEMOMETER WITH CFM/CMM AND 8:1 IR THERMOMETER
- Data logging capacity: 20,000 data points viaUSB interface
- Measures airflow volumes up to 2.5 millionCFM (72,000 CMM)
- Hot wire sensor handles even the slightest(2 ft./min) air movement with ±3% accuracy
- Five available air speed units: ft/min, m/sec,mph, km/hr, knots
- 8:1 IR thermometer with laser pointer hasmeasurement range of -25° to 999°F(-32° to 537°C)
- Large backlit LCD simultaneously displays airflow volume or speed plus remote surfacetemperature
Applications:
- HVAC
Guarantee Safe and Secure Payment Checkout
Description

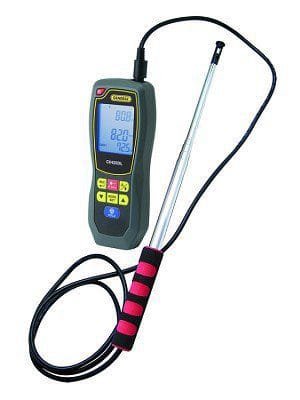

General CIH20DL Data Logging Hot Wire Anemometer with 8:1 IR Thermometer

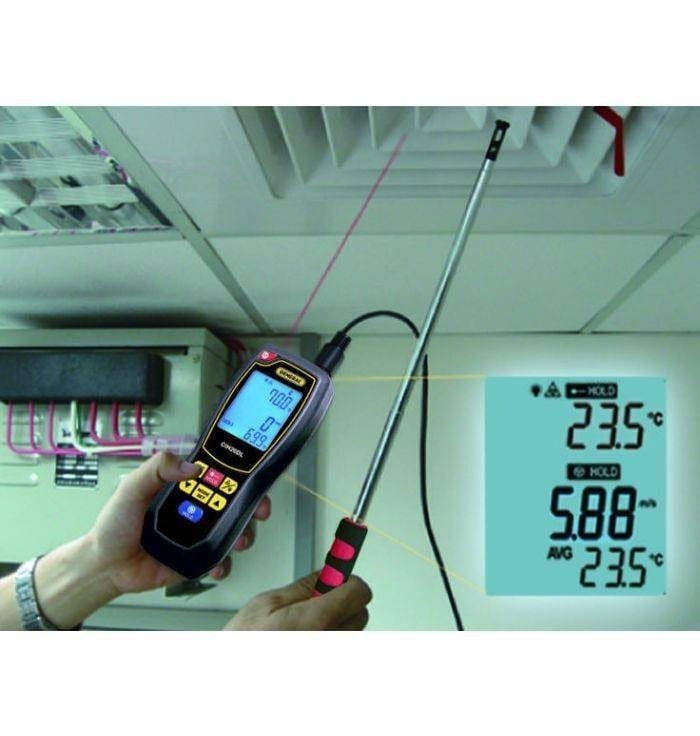

This Hotwire Anemometer lets you measure air flow volumes up to 2.5 million CFM (72,000 CMM), but also features a hot wire sensor that handles exceptionally low air speeds with ±3% accuracy. Includes 8:1 IR thermometer with laser pointer that allows precise capture and logging of up to 2000 data points with the USB interface. Backlit display provides three simultaneous readouts: air speed or airflow volume; surface temperature and air temperature. Readouts default to real-time values, but you can choose to display maximum, minimum or average measurements. The unit can store and recall up to nine sets of these three readings in chronological order.
Environmental Testers / Physical Property/Anemometer / Air Flow Template | |
|---|---|
| Type (anemometer) | Hot-Wire |
| Measurement (anemometer) | knots, MPH |
| Air Velocity Max | 7874 ft/min |
| Air Velocity Min | 2 ft/min |
| Accuracy Air Velocity | Air Velocity Accuracy +/-3% of Reading Air Volume 0 to 72,000 cmm |
| Humidity | No |
| Temperature | Yes |
| IR Sensor for Tempature | Yes |
| Thermocouple Sensor for Temperature | Yes |
| Dew Point | No |
| Windchill | No |
| Light Meter | No |
| Water Proof | No |
| Min/Max Display | Yes |
| Thermal Printer Option | No |
| Interchangable Probe Options | Yes |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | Internal Memory |
| Product Weight | 0.7 LBS |
| Product Height | 7.24 IN |
| Product Length | 1.57 IN |
| Product Width | 2.75 IN |
| Shipping Weight | 0.8 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9026.20.8000 |
| ECCN Number | 3A992 |
| Battery Type | 9v |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Country of Origin | United States |
| Shipping Height | 2.75 IN |
| Shipping Length | 10.75 IN |
| Shipping Width | 10.60 IN |
You must be logged in to post a review.
| Weight | 0.7 lbs |
|---|---|
| Dimensions | 1.57 × 2.75 × 7.24 in |
