General Tools DAF2005MDL – Metal Vane Data Logging Airflow Volume Anemometer with “K/J” Port
20 people are viewing this product right now
Original price was: $561.50.$452.82Current price is: $452.82.
Shipping calculated at checkout.
Estimated delivery:5 days

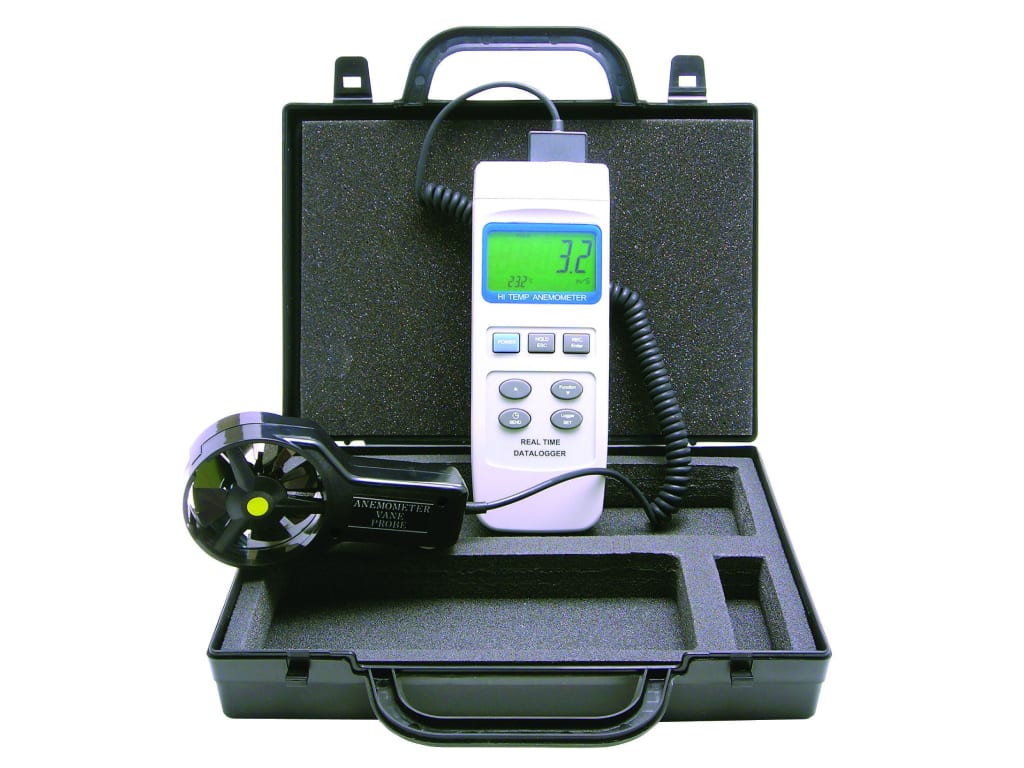

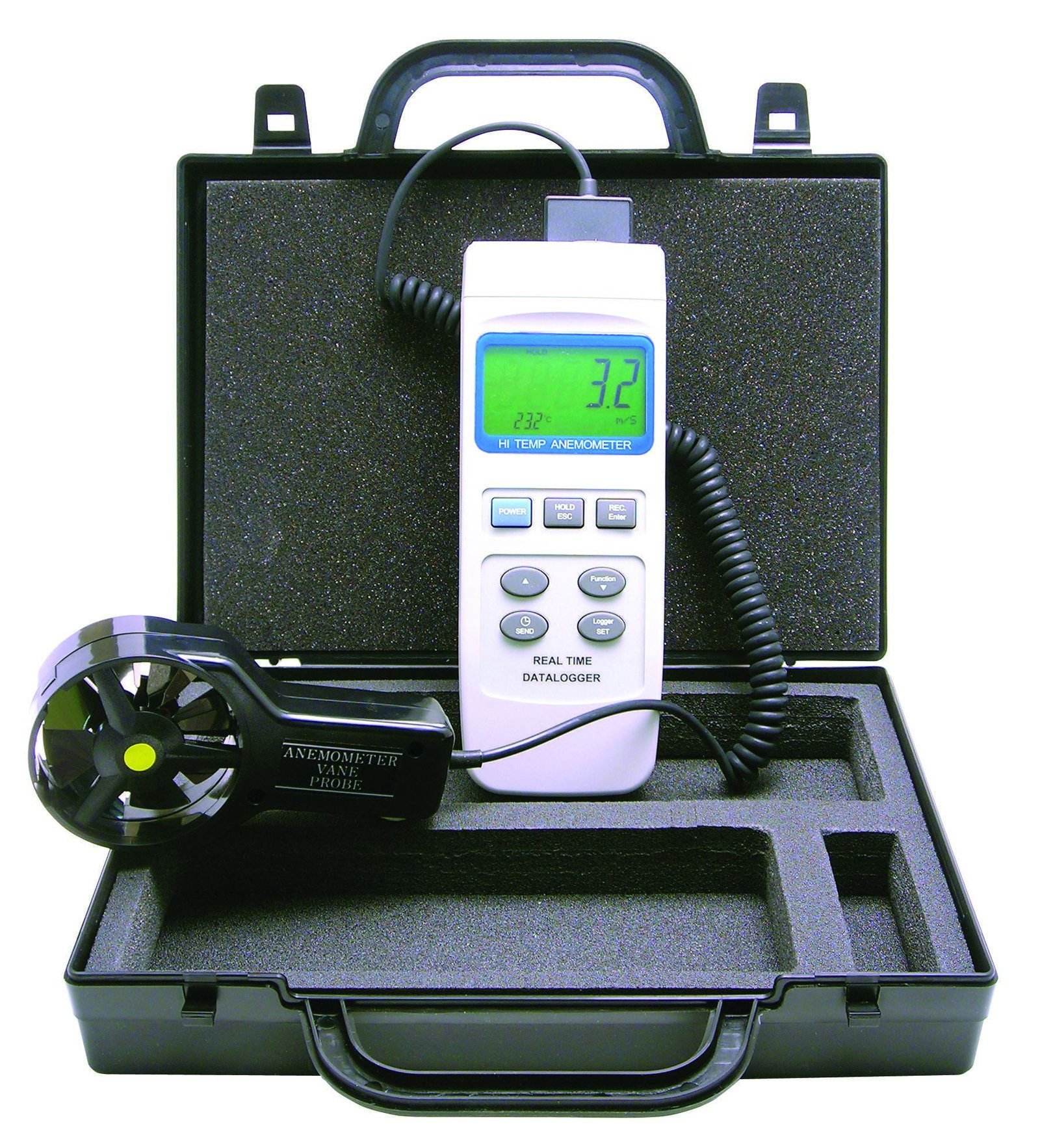

General DAF2005MDL Digital Vane Anemometer with Real Time Data Logging
- Measures and displays air speed and airflow volume in several Imperial or metric units
- Also measures and displays ambient temperature
- “K/J” port with automatic temperature compensation (ATC) for measuring surface temperature using an optional Type “K” or “J” thermocouple
- Includes the replaceable #P2005DAF metal vane air speed-temperature probe
- Jumbo 4-digit LCD
- Min/Max memory + data hold
- Optional #LSFTKIT PC data logging software/hardware is available
- °F/°C switch
- Auto power off (can be disabled for data logging)
Guarantee Safe and Secure Payment Checkout
Description
General Tools DAF2005MDL
- Airflow volume measurement resolutions: 0.01 CFM (max), 0.001 CMM (max)
- “K/J” port measurement range: -148° to 2372°F (-100° to 1300°C) with Type “K” thermocouple; -148° to 2012°F (-100° to 1100°C) with Type “J” thermocouple
- “K/J” port measurement accuracy/resolution: ±0.2% of reading/0.1°
- Data logging sampling time: Adjustable from 2 seconds to 9 hours
- LCD size: 1.3 x 2.3 in. (34 x 58mm)
Metal Vane Data Logging Airflow Volume Anemometer with “K/J” Port
The #DAF2005MDL data logging airflow volume anemometer is ideal for measuring and tracking the output of exhaust fans and blowers. It includes a heavy-duty metal vane probe and can use a thermocouple to measure surface temperature.
Environmental Testers / Physical Property/Anemometer / Air Flow Template | |
|---|---|
| Type (anemometer) | Mini-Vane, Vane |
| Measurement (anemometer) | Ft/Min, km/hr, knots, m/s, MPH |
| Air Velocity Max | 5910 ft/min |
| Air Velocity Min | 80 ft/min |
| Accuracy Air Velocity | ±2% |
| Humidity | No |
| Temperature | Yes |
| IR Sensor for Tempature | No |
| Dew Point | No |
| Windchill | Yes |
| Light Meter | No |
| Water Proof | Yes |
| Thermal Printer Option | No |
| Replaceable Vane | No |
| Metal Vane | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | RoHS |
| Interfaces I/O | RS-232 |
| Product Weight | 1.13 LBS |
| Product Height | 1.4 IN |
| Product Length | 7.9 IN |
| Product Width | 2.9 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9025.80.5000 |
| ECCN Number | 3A992 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
