General Tools DCS500 – Wireless Recording Video Inspection Camera/Borescope, 5 In. Screen, 9mm Probe

Please, activate Wishlist option to use this widget.
Please, activate Compare option to use this widget.
44 people are viewing this product right now

Original price was: $458.45.Current price is: $369.71.

Shipping calculated at checkout.
or
Add to quote
Estimated delivery:5 days

WIRELESS RECORDING VIDEO INSPECTION CAMERA/BORESCOPE+5IN SCREEN and 9MM PROBE

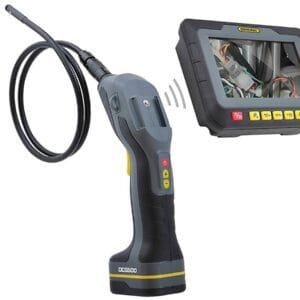

  • The monitor (with a 5 in. color LCD) can be detached from the pistol grip and the probe to receive video wirelessly
  • The grip and monitor are IP54 splash-proof
  • The included 1m long x 9mm diameter #P495-1N probe is IP67 oil-, dust- and waterproof. The probe can be replaced by a 2m or 3m version (#P495-2N and #P495-3N) with the same camera head and specs. These probes include an adaptor to make them compatible wit
  • Squeezing the trigger on the pistol grip manually records video clips and still photos onto the included 2GB MicroSD card or into the integral 128MByte flash memory
  • The console has a 1 to 4X zoom function, an adjustable Auto Power Off trigger, magnets on the back for attaching to a metal surfaces, and a built-in microphone and speaker for recording and playing back voice-annotated video clips

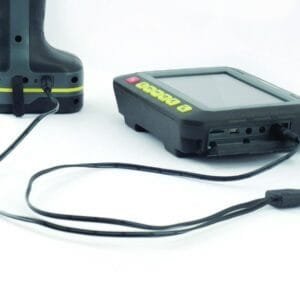

  • ScopeView software and USB cable for organizing and viewing live and recorded photos and videos on any Windows PC
  • The monitor and grip are powered by separate rechargeable Li-ion batteries or the included AC adaptor/charger
  • Four probe tip accessories (magnetic pickup, pickup hook, 45° mirror, thread protector ring)
SKU: General Tools DCS500 EAN: 681035016886 Tags: , Categories:
Pay safely with Visa Pay safely with Master Card Pay safely with PayPal Pay safely with Maestro Tooltip text
Guarantee Safe and Secure Payment Checkout

Description

General Tools DCS500

  • DETACHABLE WIRELESS MONITOR:
      • Display: 5 in. (127mm) TFT color LCD
      • Resolution: 800 x 480 pixels
      • Zoom levels: 1 to 4X in 0.5 steps
      • Flash memory capacity: 128Mbyte
      • TV output formats: NTSC and PAL
  • CAMERA-TIPPED PROBE:
      • Camera resolution: 640 x 480 pixels
      • Transmission range: 10m (33 ft.) with no obstacles
      • Transmission frequency: 2.468GHz

Wireless Recording Video Inspection Camera/Borescope, 5 In. Screen, 9mm Probe

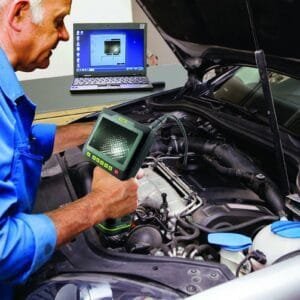

The #DCS500 Wireless Recording Video Inspection Camera/Borescope with 5 In. Screen and 9mm Probe is ideal for viewing inaccessible areas of buildings, vehicles and equipment. It combines a slim, high-quality 9mm diameter camera-tipped probe with a wireless console featuring a 5 in. (diagonal) color LCD.

The General Tools DCS500 Video Borescope Wireless Recording is an advanced borescope camera with a detachable monitor for wireless transmission of video making it ideal for viewing hard to reach areas in buildings, vehicles and other equipment. The General tools DCS500 is IP54 Splash-proof, records through easy and intuitive “trigger” on pistol-style grip, includes PC software for video and image storage and analysis, and features a built-in microphone for voice annotations.

The DCS500 is ideal for viewing inaccessible areas of buildings, vehicles and equipment. It combines a slim, high-quality 0.35 in. diameter camera-tipped probe with a wireless console/monitor that can be detached from the pistol grip and probe to receive video wirelessly from up to 33 ft. away. The monitor has 800 x 480 pixel resolution, 1 to 4X zoom function, adjustable auto power off trigger and magnets on back for attaching to metal surfaces and built-in microphone and speaker for recording and playing back voice-annotated video clips.

Borescopes / Boroscopes/Video Borescopes Template

Shaft Length3.3 Ft (39.6 IN)
Shaft Diameter0.35 IN (0.025 M)
Screen Size5 IN
Detachable ScreenYes
Screen TypeTFT LCD
Video Resolution (Boroscopes)800×480
Image Resolution640 x 480
Digital Zoom X4
Video Output FormatNTSC, PAL
IP RatingIP67

Product General Attributes

Warranty1 YEARS
Interfaces I/OUSB
StorageSD Card
Product Weight12.5 OUNCES (0.781 LBS)
Product Height5.25 IN
Product Length15.50 IN
Product Width12.50 IN
Battery TypeLi-ion
Power Supply VoltageBattery Powered
Shipping Height5.25 IN
Shipping Length15.50 IN
Shipping Width12.50 IN

Reviews

There are no reviews yet.

Be the first to review “General Tools DCS500 – Wireless Recording Video Inspection Camera/Borescope, 5 In. Screen, 9mm Probe”

Manuals/Guides

Dimensions15.5 × 12.5 × 5.25 in
