General Tools DPS16 – Pipe & Duct Video Borescope Inspection System
13 people are viewing this product right now
Original price was: $2,890.61.$2,057.66Current price is: $2,057.66.
Shipping calculated at checkout.
Estimated delivery:5 days
PIPE and DUCT VIDEO VIDEO INSPECTION (DD) CAMERA/BORESCOPE
- Ideal for examining the interior of water pipes, sewer pipes, and HVAC ducts. Especially tailored for 2, 4 and 6 in. I.D. pipes by included probe centering accessories
- 72 ft. (22m) long probe with 1.1 in. (28mm) diameter camera head
- Eight super-bright white LEDs give probe 640 x 480 pixel (VGA) resolution; superior optics yield excellent depth of field of 0.4 in. (10mm) to infinity

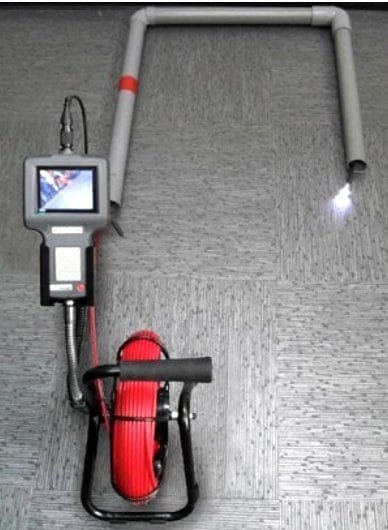

- Probe is water-tight to IP68 standard (depth of 33 ft./10m) and flexible enough to make two or more (depending on conditions inside the pipe) 90° bends in a 1.6 in. (40mm) I.D. pipe
- Stainless steel camera head is immune to bathroom toilet cleaner, pipe and drain cleaning chemicals, gasoline, brake/transmission fluid and machine oil

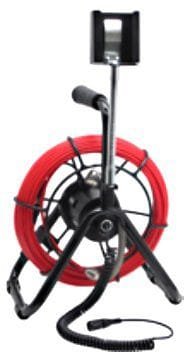

- Steel probe reel is sturdy and dust-tight to IP6X standard, works vertically or horizontally, and has bracket for H16 (DCS1600) console

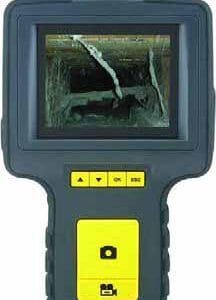

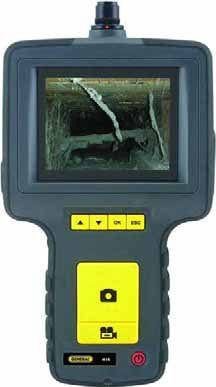

- 3.5 in. diagonal color LCD for viewing probe video in real time and saved video and pictures later
- Compatible with dozens of high-performance camera-tipped probes from General (see p. 21)
- Thumbwheel for adjusting brightness of camera lighting
- Familiar menu-driven user interface for viewing and recording videos and photos on standard SD memory card (2GB card included) and playing back media on console, TV or PC
Guarantee Safe and Secure Payment Checkout
Description
General Tools DPS16
- Display Type: Color TFT LCD
- Display Size: 3.5 in (89mm) diagonal
- Display Resolution: 320 by 240 pixels (QVGA)
- Video Recording Resolution: 320 x 240 pixels (QVGA)
- Video File Format: .asf
- Photo Recording Resolution: 640 x 480 pixels (VGA)
- Photo File Format: .jpg
- Video Out Formats: NTSC, PAL
Pipe & Duct Video Borescope Inspection System

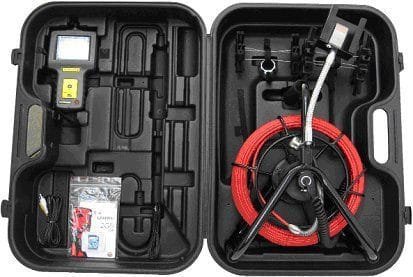

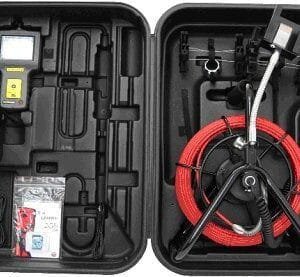

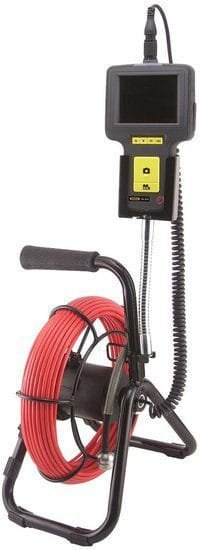

The DPS16 has two components: the H16 Handheld Recording Video Borescope Console and the P16PIP Pipe & Duct Inspection Probe & Reel Set. A thumbwheel on the left side of the H16 allows you to adjust the brightness of the LEDs illuminating the camera at the end of any probe attached to it. The P16PIP probe and reel set included in the DPS16 system is tailored for inspecting water and sewer pipes carrying running water, as well as HVAC ducts.
The Pipe and Duct Video Borescope Inspection System (DPS16) Offers Flexibility and Performance for Examining and Documenting Interior Conditions of Ductwork and Water/Sewer Pipes. System is Comprised of Pipe and Duct Inspection Probe and Reel Set (P16PIP) and Video Borescope Handheld Recording Console (H16). Able to Maneuver Through Two 90-Degree Bends, IP68 Waterproof Probe Is 72-Feet Long And Employs 1.1-Inch. Dia Camera.
Ideal for examining the interior of water pipes, sewer pipes and HVAC ducts. Especially tailored for 2, 4 and 6 in. I.D. pipes by the included probe centering accessories. Complete System (DPS16) Probe & Reel Set only (P16PIP) DCS1600 Console only (H16) The DCS1600 Video Borescope Handheld Recording Console is also available separately as No. H16. It is compatible with all QVGA and VGA resolution probes offered by General, except the P18ART-1SM, -2SM and -3SM articulating probes.
Borescopes / Boroscopes/Video Borescopes Template | |
|---|---|
| Shaft Length | 72 IN |
| Shaft Diameter | 0.23 IN (0.025 M) |
| Screen Size | 3.5 IN |
| Video Resolution (Boroscopes) | 640 x 480 pixels |
| Image Resolution | 640 x 480 pixels |
| IP Rating | IP65 |
Product General Attributes | |
| Product Weight | 3 KILOS (6.61 LBS) |
| Other Information | Waterproof Depth (IP68): 50 ft. (10m) Operating Temperature: 14 to 158F (-10 to 70C) Light Source: 8 white LEDs Minimum Bending Radius: 6 in. (150mm) Material: Fiberglass Camera Head |
