General Tools DS2239 – Digital Stroboscope
13 people are viewing this product right now
Original price was: $327.56.$264.16Current price is: $264.16.
Shipping calculated at checkout.
Estimated delivery:4 days

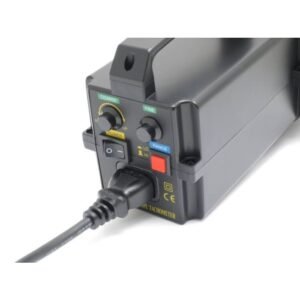

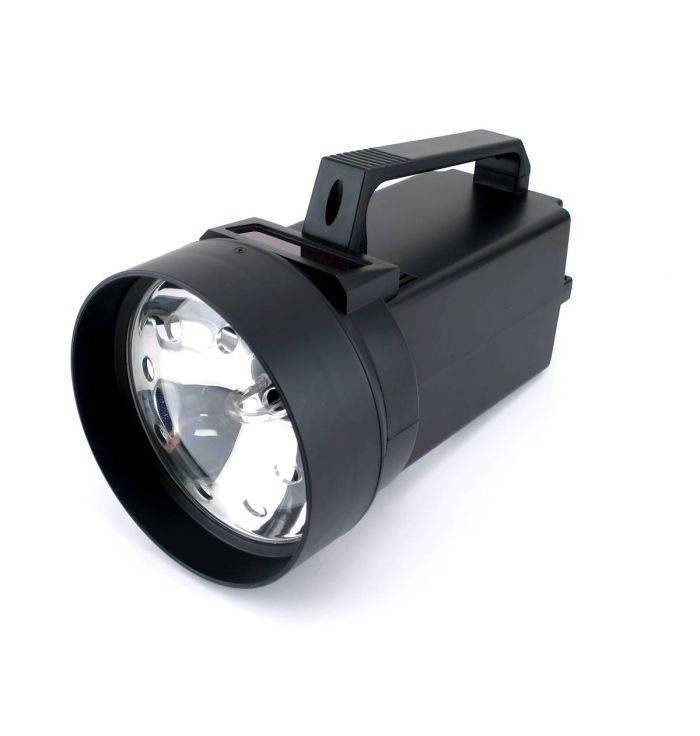

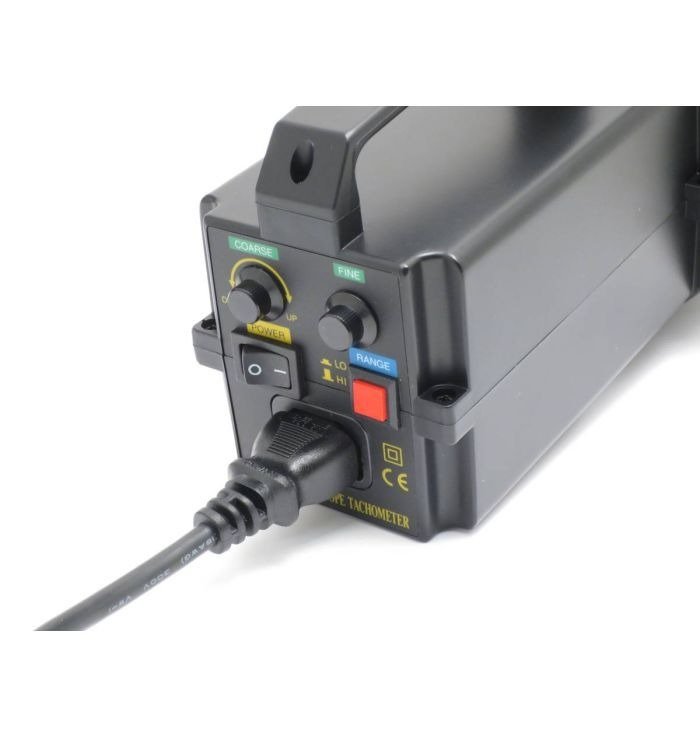

General DS2239 Digital Stroboscope
- Super-accurate Xenon tube light source

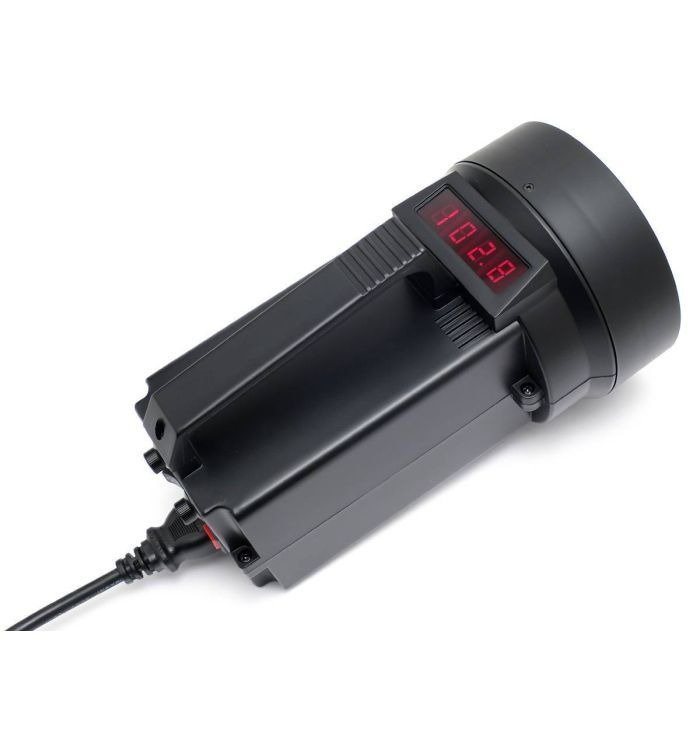

- Jumbo 4-digit LED digital readout
- Two ranges
- Powered by 110VAC or 220VAC
Guarantee Safe and Secure Payment Checkout
Description
General Tools DS2239
- Measurement ranges: 100 to 1200 rpm and 1200 to 9999 rpm
- Measurement accuracy: ±(0.05% + 1 digit)
- Measurement resolution: 0.1 rpm below 1000 rpm; 1 rpm at and above 1000 rpm
- Display size and type: Four red LEDs, each 0.4 in. (10mm) high
- Operating temperature: 32° to 122°F (0° to 50°C) @ <80% RH
Digital Stroboscope
The General Tools DS2239 stroboscope can be used in timing applications or to measure the rotational speed of motor and fan shafts.
Specifications
Measurement ranges: 100 to 1200 rpm and 1200 to 9999 rpm
Measurement accuracy: ±(0.05% + 1 digit)
Measurement resolution: 0.1 rpm below 1000 rpm; 1 rpm at and above 1000 rpm
Display size and type: Four red LEDs, each 0.4 in. (10mm) high
Operating temperature: 32° to 122°F (0° to 50°C) @ <80% RH
Weight: 2.2 lb. (1kg)
PROP 65 WARNING:
This product can expose you to chemicals including di2-ethylhexylphthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Reliability / Preventative Maint / Rotational/Stroboscopes Template | |
|---|---|
| Style (Stroboscope) | Hand Held |
| Digital Display | 4 Digits |
| Revolution Rate Maximum | 9999 RPM |
| Flash Rate Maximum | 9999 RPM |
| Flash Rate Duration | 1000 MILISECONDS (1 s) |
| External Trigger | No |
| Phase Shift (Stroboscope) | No |
| Programmable Steps | No |
| Rechargable Power | No |
| Memory Capability | No |
| Waterproof Housing | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Product Weight | 2.2 LBS |
| Product Height | 4.7 IN |
| Product Length | 8.3 IN |
| Product Width | 4.7 IN |
| Shipping Weight | 2.53 LBS |
| Data Logging | No |
| CA Residents | Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Power Supply Voltage | 120V/220V Universal |
