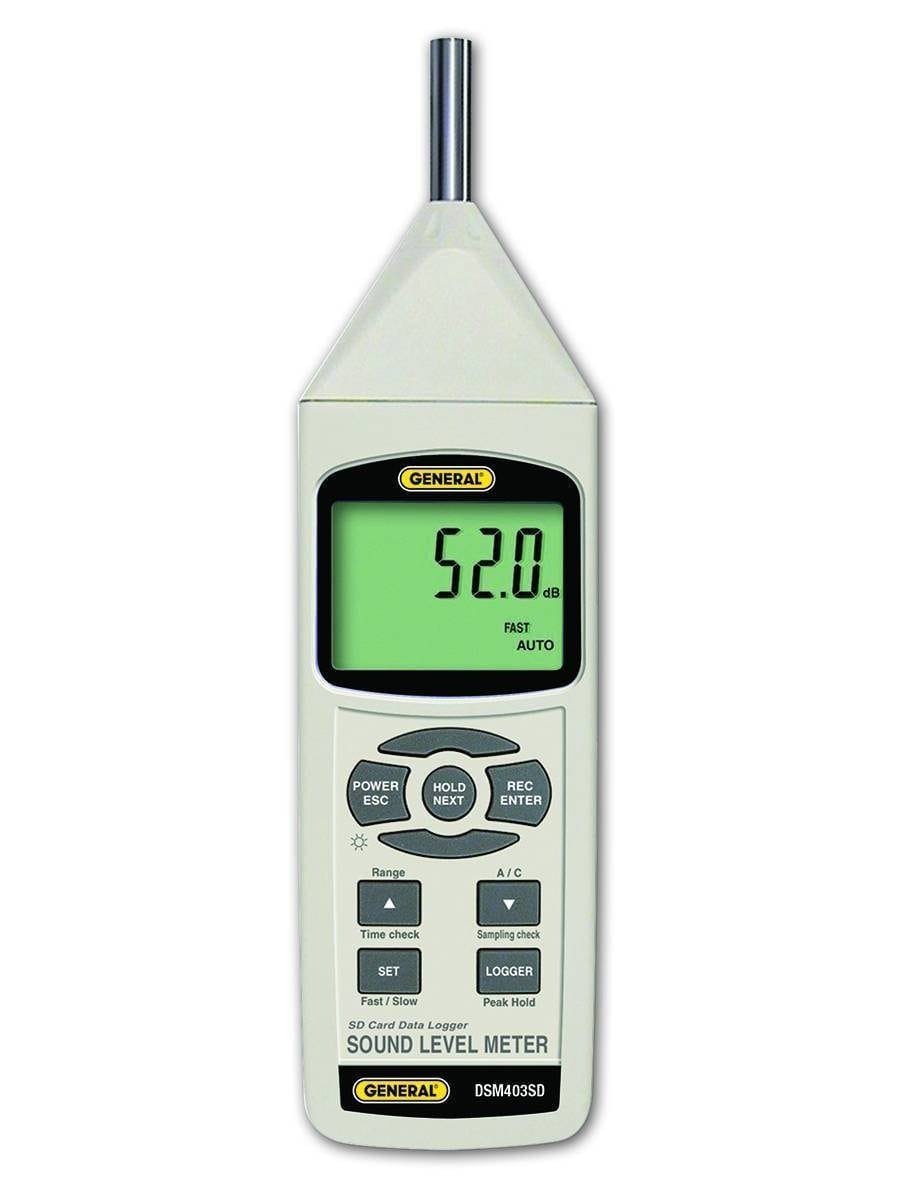

General Tools DSM403SD – Class 1 Sound Level Meter With Excel-Formatted Data Logging SD Card
8 people are viewing this product right now
Original price was: $561.53.$452.85Current price is: $452.85.
Shipping calculated at checkout.
Estimated delivery:3 days
Class 1 Sound Level Meter With Excel-Formatted Data Logging SD Card
- Measurement ranges: 30 to 80 dB, 50 to 100 dB, 80 to 130 dB
- Measurement accuracy (with “A” frequency weighting): 2.0 dB @ 31.5 Hz, 1.5 dB @ 63 Hz, 1.5 dB @ 125 Hz, 1.4 dB @ 250 Hz, 1.4 dB @ 500 Hz, 1.1 dB @ 1 kHz, 1.6 dB @ 2 kHz, 1.6 dB @ 4 kHz, +2.1 dB and -3.1 dB @ 8 kHz; +3.0 dB and -6.0 dB @ 12.5 kHz; +3.5 dB
- Frequency range: 31.5 Hz to 16 kHz (Class 1)
- Data logging sampling time: Adjustable from 1 second to 1 hour
- LCD size: 2.05 x 1.5 in. (52 x 38 mm)
- Auto power off: After 10 minutes of inactivity
- Operating temperature: 32° to 122°F (0° to 50°C) @ <85% RH
- Downloads logs in Excel format
- Auto power off (can be disabled for data logging)
- 1-year limited warranty
Guarantee Safe and Secure Payment Checkout
Description
General Tools DSM403SD
- Large backlit LCD
- Auto ranging or manual ranging
- “A” or “C” frequency weighting
- Fast or slow time weighting
- Min/max/peak memory + data hold
Class 1 Sound Level Meter With Excel-Formatted Data Logging SD Card
The #DSM403D sound data logger is ideal for measuring and documenting environmental and industrial noise for compliance purposes.
Environmental Testers / Physical Property/Sound Level Meters Template | |
|---|---|
| Minimum Sound Level | 30 dB |
| Maximum Sound Level | 130 dB |
| Display (Sound Level Meter) | Digital |
| Single Range | No |
| Dual Range | Yes |
| A Frequency Weighting | Yes |
| B Frequency Weighting | No |
| C Frequency Weighting | Yes |
| Frequency Range Max | 8 GHz (8000000000 Hz) |
| Resolution (Sound Level Meters) | 0.1 dB |
| Calibrator Capability | Yes |
| Vibration Measurement | No |
| Noise Level Measurement | Yes |
| Fast/Slow Time Adjustment | Yes |
| Min/Max Display | Yes |
| Tripod Mount | No |
| Type (Sound Level Meter) | II |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | RoHS |
| Interfaces I/O | RS-232 |
| Storage | SD Card |
| Product Weight | 1.08 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027.89.8090 |
| ECCN Number | EAR99 |
| Battery Type | 9v, AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
