Description

General Tools IRT5000
- Safely measures temperatures up to 4352°F (2400°C)
- Adjustable emissivity
- Stores/recalls 24 data sets (measured temperature + emissivity setting)
- Min/max/dif memory

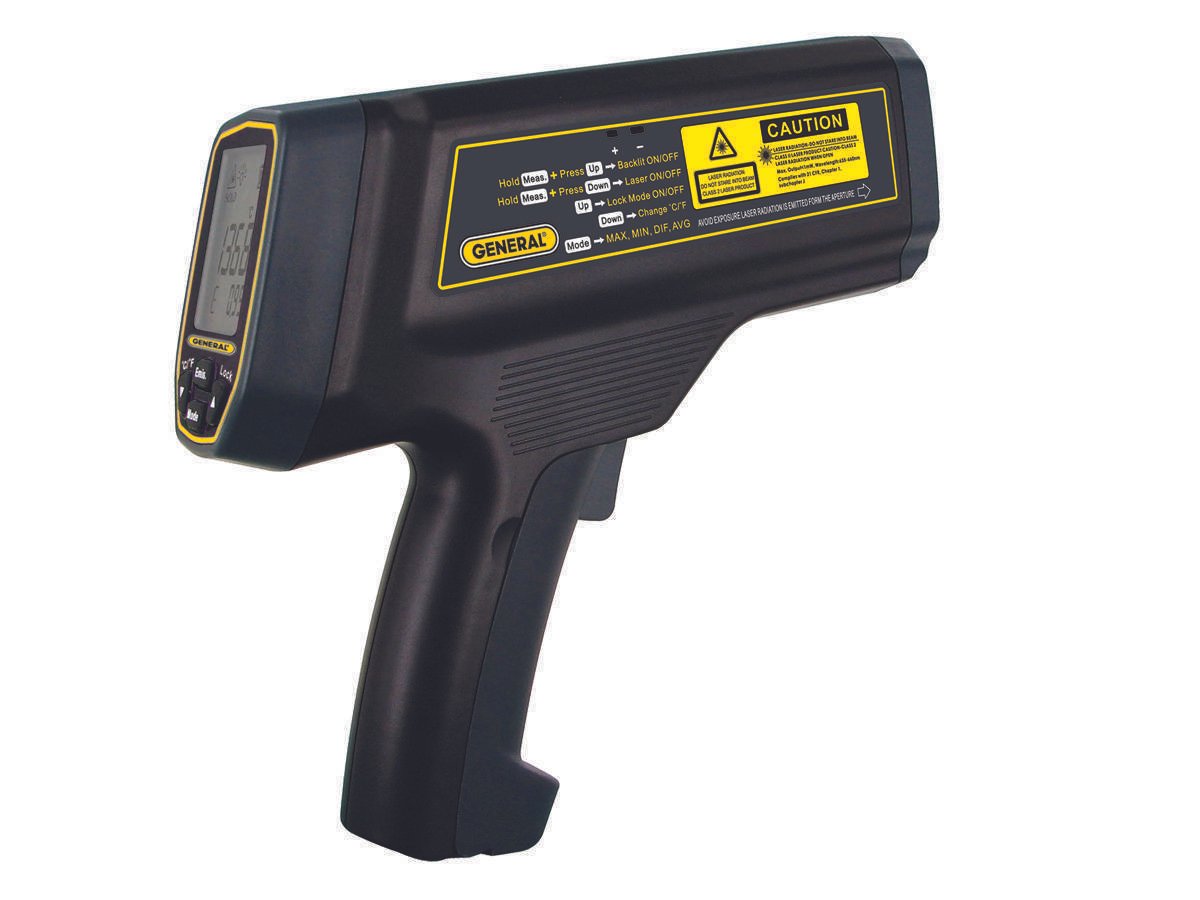

100:1 Ultra-High Temperature Infrared Thermometer With Dual Laser Target Tracking System
The #IRT5000 high-temperature laser thermometer is ideal for applications in power generation and transmission, maintenance, foundry operations, industrial site inspection, manufacturing MRO and firefighting operations.
Specifications
- Distance-to-spot (D:S) ratio: 100:1
- IRT measurement range: 392° to 4352°F (200° to 2400°C)
- IRT measurement accuracy: ±2% of reading
- “K” port measurement range: -83.2° to 2552°F (-64° to 1400°C)
- “K” port measurement accuracy: ±1% of reading or ±1.8°F (±1°C), whichever is greater
- Measurement resolution: 0.1° below 1000°; 1° at and above 1000°
- Emissivity: Adjustable from 0.1 to 1.0 in 0.01 increments (factory set to 0.95 )
- Display size/type: 2.1 in. (diagonal) LCD
- Response time: 1 second for 90% response
- Operating temperature: 32° to 122°F (0° to 50°C)
- Weight: 16.8 oz. (475g)
- Power source: Two “AA” batteries (included)
PROP 65 WARNING: This product can expose you to chemicals including di2-ethylhexylphthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Thermometers/IR Thermometers Template | |
|---|---|
| IR Temperature Max | 4352 F |
| IR Temperature Min | 392 F |
| Field View Ratio (Spot Ratio) | 100:1 |
| Accuracy | IRT measurement accuracy: ±2% of reading “K” port measurement accuracy: ±1% of reading or ±1.8°F (±1°C), whichever is greater |
| Laser Pointer | Yes |
| Backlight | Yes |
| Emissivity Adjustable | Yes |
| Alarm | Yes |
| Data Hold | Yes |
| Max./Min. | Yes |
| Thermocouple Input | Yes |
Product General Attributes | |
| Unique Features | 100:1 distance to spot (D:S) ratio Stores up to 24 data points Ultra-high temperature operation up to 4352°F(2400°C) High/Low alarm levels Fast response time of 0.5 seconds Min/Max/Dif memory Dual lasers to track target/spot size |
| Warranty | 2 YEARS |
| Safety Approval | RoHS |
| Product Weight | 1.05 LBS |
| Product Height | 9.2 IN |
| Product Length | 8.17 IN |
| Product Width | 2.38 IN |
| Shipping Weight | 1.21 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 90251940 |
| ECCN Number | 3A992 |
| Calibration Included | NIST Calibration |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 679.45 MM (26.75 IN) |
| Shipping Length | 431.8 MM (17 IN) |
| Shipping Width | 466.85 MM (18.38 IN) |
