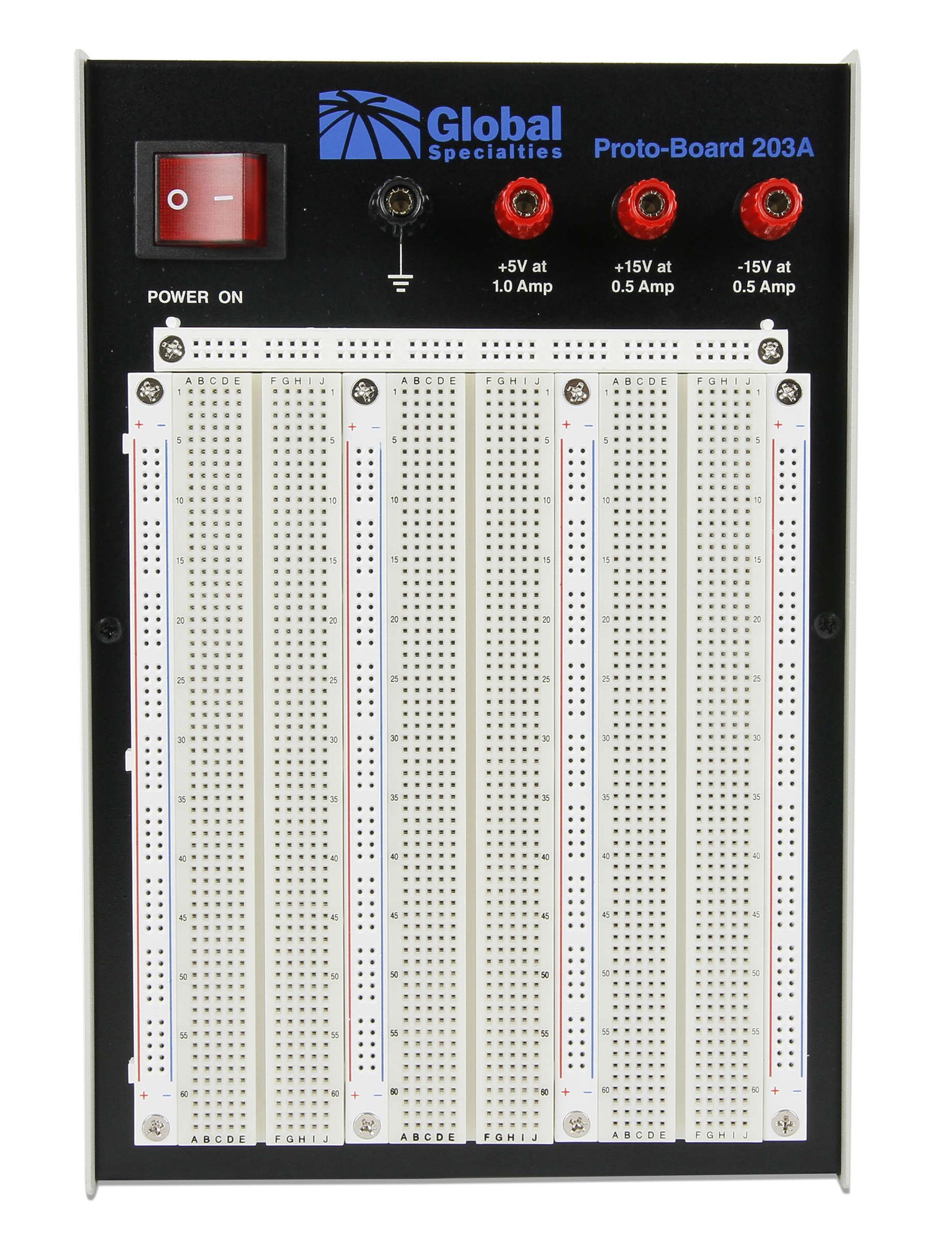

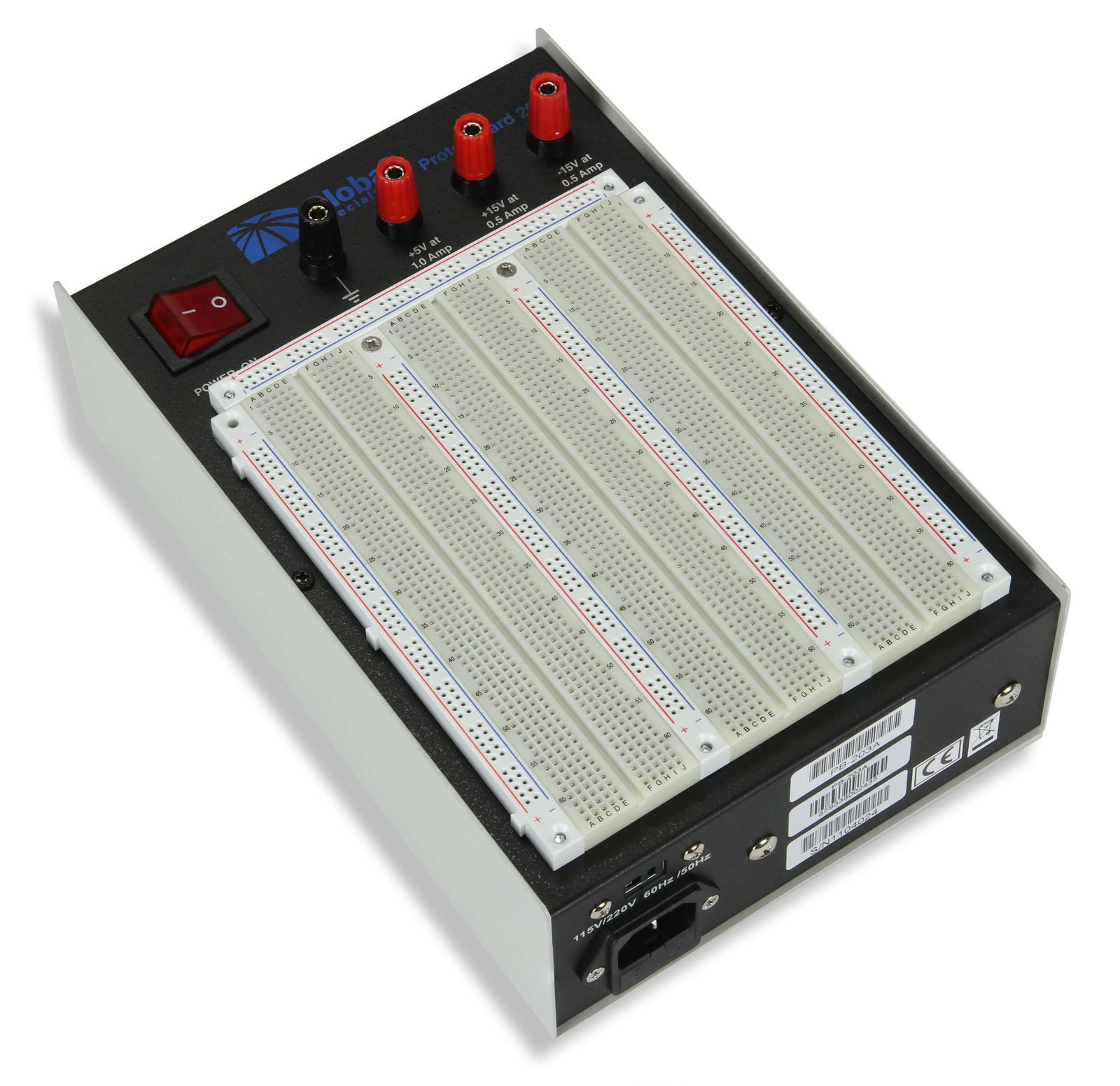

Global Specialties PB-203A – Triple Output ±15 V Powered Breadboard
36 people are viewing this product right now
Original price was: $357.50.$303.87Current price is: $303.87.
Shipping calculated at checkout.
Estimated delivery:4 days
Powered Breadboard
- Combines utility of a Proto-Board with highly capable regulated DC power supplies
- Housed in a rugged metal case
- Fixed triple output power supply, 5V @1A, +15V & -15V @ 500mA internally available
- Up to (24) 14-pin DIP IC capacity
- Includes three new GS-830, 830 Tie-point Solderless Breadboards & one new GS-080, 80 Tie-point Bus Strip
- 3-year warranty on all parts and workmanship
Guarantee Safe and Secure Payment Checkout
Description
Global Specialties PB-203A
- Housed in a rugged metal case
- Triple output power supply, 5V @1A, +15V & -15V @ 500mA
- Up to (24) 14-pin DIP IC capacity
- Includes three new GS-830, 830 Tie-point Solderless Breadboards & one new GS-080, 80 Tie-point Bus Strip
- 3-year warranty on all parts and workmanship
Triple Output ±15 V Powered Breadboard
The PB-203A is a durable powered breadboard capable of being used to design a multitude of analog, digital, logic, and microcomputer circuits.
The PB-203A’s onboard power supply eliminates the need for an external supply, adding more versatility to circuit design and experiments, as well as saving valuable bench space by eliminating the need for an external prototyping power supply. Due to its ample-sized breadboarding area, the PB-203A is ideally suited to allow for the breadboarding of virtually any type of circuitry, from TTL, CMOS, and ECL, to opamps, audio, comparators, video amps, microprocessor components, phase locks, and more.
The PB-203A’s breadboarding area is comprised of Global’s “Premium” solderless breadboards and is backed by an industry-leading 3-year warranty.
Global Specialties powered breadboards are an important part of the necessary tools required to enable engineers and technicians to train for careers in the rapidly growing field of electronics technology.
Prototyping/Breadboards Template | |
|---|---|
| Type (Breadboards) | Solderless |
| Tie Points | 2250 |
| Binding points | Yes |
| Minimum Wire Size | 0.4 MM |
| Maximum Wire Size | 0.7 MM |
Product General Attributes | |
| Warranty | 3 YEARS |
| Product Weight | 5.5 LBS |
| Product Height | 3.3 IN |
| Product Length | 9.8 IN |
| Product Width | 6.6 IN |
| Shipping Weight | 7.75 LBS |
| HTS/Schedule B Number | 8537.10.9050 |
| ECCN Number | EAR99 |
| Country of Origin | Taiwan |
| Shipping Height | 6.25 IN |
| Shipping Length | 14.75 IN |
| Shipping Width | 9.25 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 5.5 lbs |
|---|---|
| Dimensions | 9.8 × 6.6 × 3.3 in |
