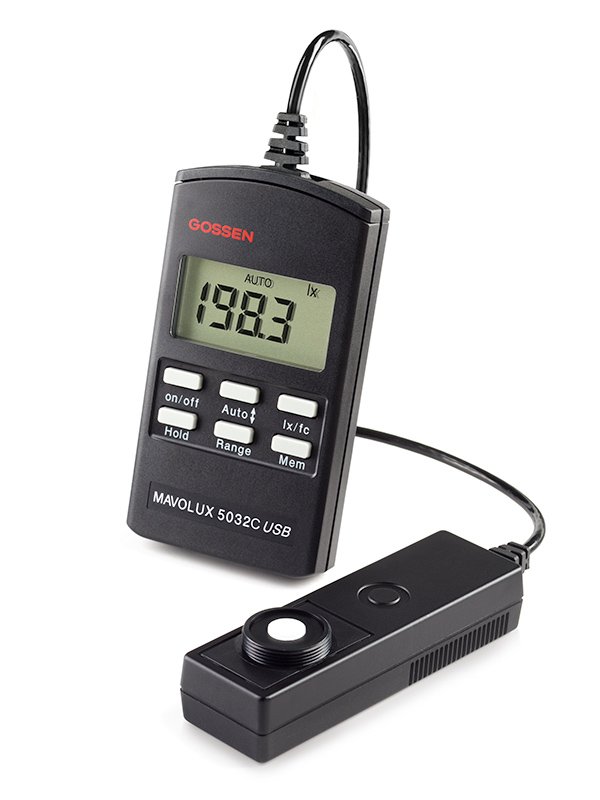

Gossen MAVOLUX 5032 C USB 3m – Illuminance Tester with 3m Probe Cable

• Sensor Cable is Permanently Attached
• 3m Probe Cable
• Precision meter for measuring the illuminance in Lux and Footcandles in accordance with IEC 13032-1, Appendix B
• The silicon photo diode is color corrected, i.e. its spectral response is matched to the photopic daylight vision of the human eye V(λ)
• Cosine correction for light incidence at an angle

The Gossen Foto M502N MavoLux Model 5032 C is a high precision luxmeter that is optimally suited for measuring very high light intensities (brightest daylight, head lights, etc.) without any additional accessories. The 5032C has a USB interface for powering the meter, meter control, and data display/storage using GLUX 2 software (included). The MavoLux 5032 C is typically used in basic/general applications. Sensor cable is permanently attached.

The Mavolux 5032 B & C are high precision luxmeter’s that are optimally suited for measuring very high light intensities (brightest daylight, head lights, etc.) without any additional accessories. Each has a USB interface for powering the meter, meter control, and data display/storage using GLUX 2 software (included). The Mavolux 5032 C is typically used in general applications and the Mavolux 5032 B has improved low light sensitivity for certification and inspection applications.

• Maximum precision – Classified measurement of illuminance in lx or fc in accordance with class B or class C per DIN 5032-7, appendix B of IEC 13032-1 and CIE 69.
• V(λ) adaptation – The spectral sensitivity of the silicon photodiode is color corrected and corresponds to the spectral brightness sensitivity of the human eye V(λ). The quality of this adaptation represents a significant difference between the class B and class C variants.
• Cosine correction – The luminosity of a flat measuring surface is proportional to the cosine of the incident angle of light. This relationship is taken into consideration by the sensor during evaluation.
• Simple expansion of functions – Unclassified measurement of luminance in cd/m2 or fL is made possible by the optional luminance attachment. An additional adapter disc prevents erroneous measurements due to incidence of light from the side.
• Convenient everyday use – Simple operation, easy to read display, compact design, protection during transport in a high-quality aluminum case.
• Non-volatile memory – 100 measured values can be saved, retrieved, or transmitted to a PC via the integrated USB port. Average illuminance values can also be calculated as a result.
• Computer-aided measurement – The meter’s continuous operating mode is assured thanks to power supply via the USB port. Meter control, as well as acquisition, display, and storage of measured values, is managed with the free GLUX 2 software.
