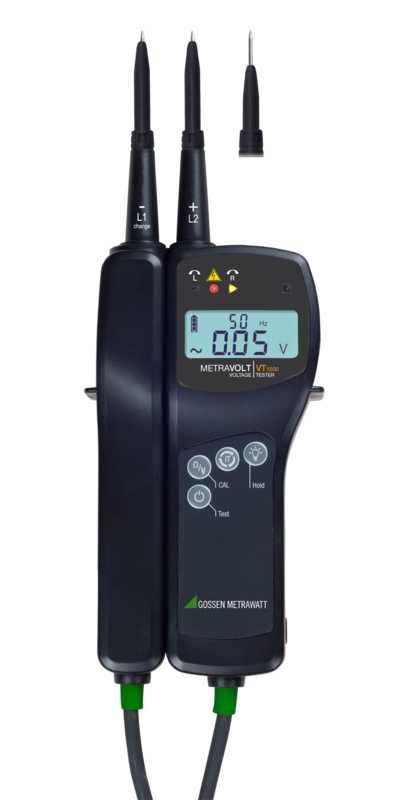

Gossen METRAVOLT 1500 – Voltage and Continuity Tester, 0 to 1200V

• Voltage test from 0 to 1200 V AC and 1500 V DC at frequencies of up to 2 kHz
• Phase and phase sequence indicator
• Continuity testing and resistance measurement
• RCD quick test up to 30 mA at 230 V

The METRAVOLT VT 1500 is a 2-pole voltage tester with a digital display combined with an integrated continuity, phase and phase sequence tester. It permits safe detection and measurement of AC and DC voltages within a range of 0 to 1000 V AC / 1500 V DC at frequencies of up to 2 kHz. Resistance within a range of 0 to 999 kΩ can also be measured with the integrated continuity tester. Voltage and resistance values appear in digital format at the LCD. LEDs and red display illumination also indicate dangerous contact voltage and phase sequence.

Fully Automated Measuring Sequence

The voltage tester is switched on automatically as soon as a voltage of at least 12 V is applied. The respective voltage measuring range and the voltage type are selected automatically.

If interference voltages of greater than 12 V are detected, the instrument switches automatically from the continuity test to the voltage test.

The instrument is switched off automatically approximately 30 seconds after the last measurement to extend battery life.

Measured Value Storage

The displayed measured value can be “frozen” at the LCD by pressing the HOLD key.

Self-Test and Battery Monitoring

The self-test checks all display elements and instrument functions. A signal is generated automatically if the battery requires replacement.

Battery Display

The battery’s momentary charge level is shown on display using a 3-step indicator.

Rugged Housing

The impact-resistant, dust-proof housing makes the instrument virtually indestructible. The display is protected by means of an unbreakable cover. The instrument can be used in the rain thanks to IP 65 protection.

High Safety Levels

Excellent electrical safety is achieved by means of series resistors integrated into both test probes.
