Gossen Metrawatt M235J ASi Bus Tester – Diagnostics and Addressing Tool, ASi Version 3.0
9 people are viewing this product right now
$669.63
Shipping calculated at checkout.
Estimated delivery:5 days
ASi Bus Tester – Diagnostics and Addressing Tool, ASi Version 3.0
- Replaces M235H
- Read-out and selection of slave addresses 0 to 31, 1A to 31A or 1B to 31B for all AS interface slaves
- Measurement of voltage in the AS interface conductor and measurement of operating current for AS-i slaves
- Testing of input and output data from digital and analog slaves in accordance with AS interface specification V3.0, including safety relevant input slaves
- Selection of slave parameters for test purposes and read-back of the parameter echo
- Read-out of the slave profile (IO, ID, ID2)
- Read-out and setting of the ID1 code
- Read-out of data objects, identifiers and diagnostics in the case of CTT2 slaves
- Read-out of the safety code sequences of safety relevant input slaves (ASIsafe)
- Reading and writing of the cyclical input and output channels of CTT2 slaves
- Storage of complete network configurations (profiles of all slaves) as an addressing aide
Guarantee Safe and Secure Payment Checkout
Description
Gossen Metrawatt M235J – ASi Bus Tester, Diagnostics and Addressing Tool, ASi Version 3.0
- Replaces M235H
- Read-out and selection of slave addresses 0 to 31, 1A to 31A or 1B to 31B for all AS interface slaves
- Measurement of voltage in the AS interface conductor and measurement of operating current for AS-i slaves
- Testing of input and output data from digital and analog slaves in accordance with AS interface specification V3.0, including safety relevant input slaves
- Selection of slave parameters for test purposes and read-back of the parameter echo
- Read-out of the slave profile (IO, ID, ID2)

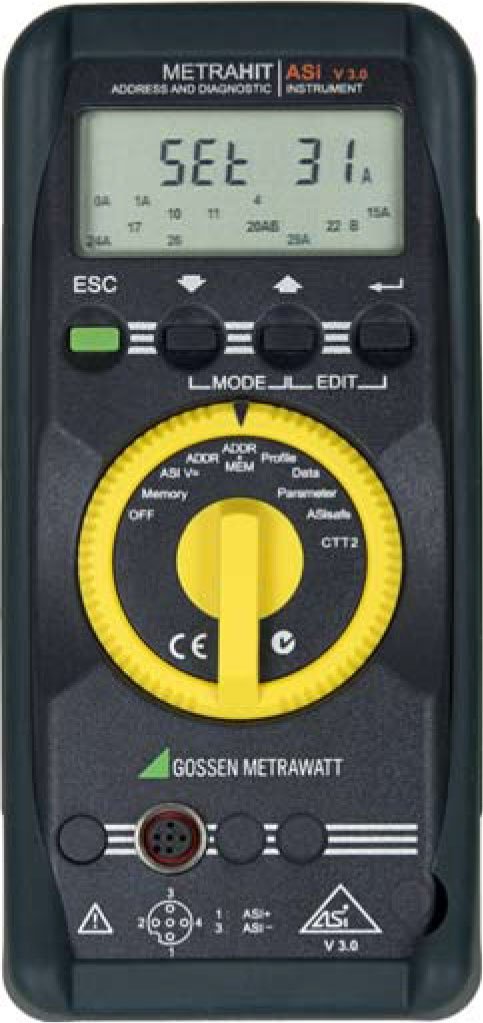

The METRAHITASI v3.0 is an easy-to-operate addressing and diagnosis device for active AS-i modules and intelligent sensors and actuators in accordance with AS-i version 3.0 including extended addressing mode.
Connection
The METRAHITASI v3.0 is connected to the slaves via cables with an M12 connector (90°) to jack plug or directly to the AS-i bus cable with optional cable Z236C.
Display
The high-contrast liquid crystal display (LCD) with primary and sub-displays keeps the user informed about various conditions.
Primary display (8 characters):
- menu function, current data, error conditions
Sub-display (5 characters):
- status displays
- all assigned slave addresses (0 … 31, A, B) within the system
- Selection overview for slave addressing and diagnosis
Two display modes are possible:
- Slave data can be displayed in direct mode or in S7 mode.
Application, Addressing of ASi Slave
Application, Connection of AS-i System
![Gossen-Metrawatt-METRAHit-ASi-V3-Display-01]()
Main display with 8 digits and additional information This symbol represents the information on the 7-segment display- Address field: Display of assigned AS-i addresses
![Gossen-Metrawatt-METRAHit-ASi-V3-Display-02]()
RETURN / Input confirmation![Gossen-Metrawatt-METRAHit-ASi-V3-Display-03]()
Up / Increase value![Gossen-Metrawatt-METRAHit-ASi-V3-Display-08]()
Down / Decrease value![Gossen-Metrawatt-METRAHit-ASi-V3-Display-04]()
Escape / CancelKey combinations:
![Gossen-Metrawatt-METRAHit-ASi-V3-Display-05]()
Edit function / Write outputs![Gossen-Metrawatt-METRAHit-ASi-V3-Display-06]()
Device setting![Gossen-Metrawatt-METRAHit-ASi-V3-Display-07]()
Rotary switch for function selection- M12 sockets for connection of the AS-i slaves
Main display with 8 digits and additional information This symbol represents the information on the 7-segment display
RETURN / Input confirmation
Up / Increase value
Down / Decrease value
Escape / Cancel
Edit function / Write outputs
Device setting
Rotary switch for function selectionNone
