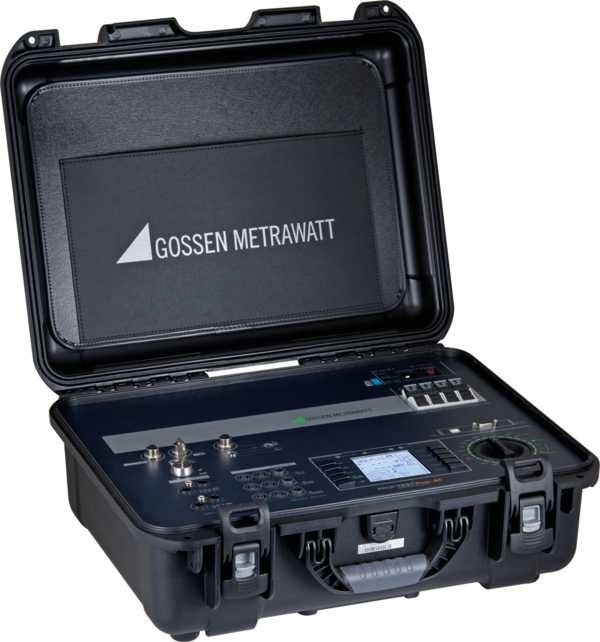

Gossen Metrawatt M506C – Electrical Machines Safety Measurement Tester

• Creation of individualized test sequences
• Push-print function – transmission of the measured value via Bluetooth/USB after the measurement has been completed
• Bluetooth and USB interfaces
• Windows-based user software with database functionality

A broad-range measuring device permits use of the test instrument in all alternating and 3-phase electrical systems with voltages from 65 to 690 V and frequencies of 15.4 to 420 Hz, as well as direct current systems with voltages from 65 to 800 V.

Testing of Electrical Machines, Equipment and Installations

Testing the effectiveness of safety measures in electrical systems is necessary for many applications and is required in accordance with legislation and regulations set forth by official authorities, operating companies and insurance companies.

Advantages

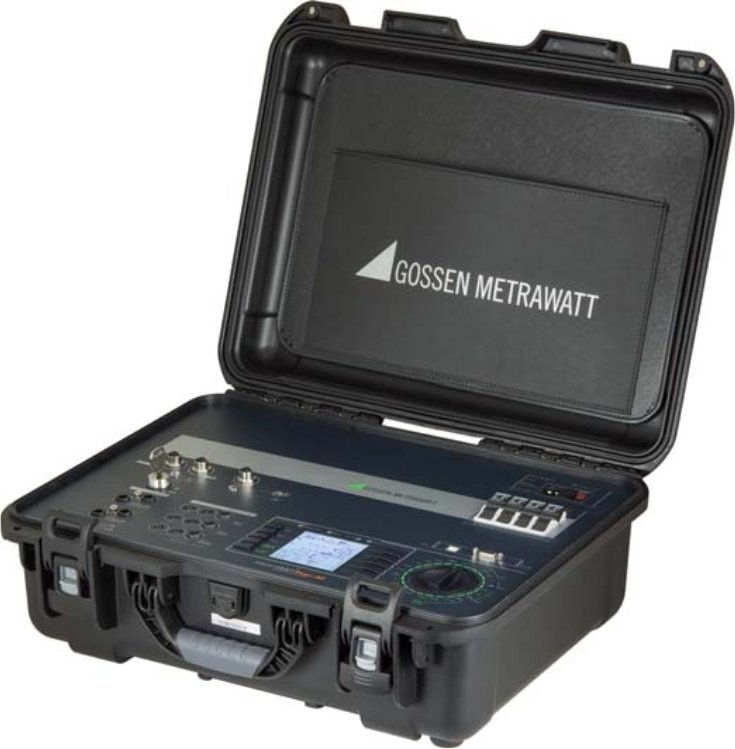

PROFITEST PRIME AC – versatile and future-proof

• Intuitive operation
• Efficient work
• Standards-compliant testing
• Legally secure documentation

PROFITEST PRIME AC – saves time and money

• As a single test instrument for a broad range of applications
• All measurements without any bothersome replugging of the measurement cables
• Interchangeable test tips on the measurement cables
• Can be used all over the world thanks to language selection

PROFITEST PRIME AC – even 10 years down the road

• Future-proof thanks to firmware updates
• 10-year service guarantee
• DAkkS certificate issued by own calibration laboratory
• User support for questions about testing

PROFITEST PRIME AC – quick and easy report generation

• Cascadable, future-proof software concept
• Modern data management by means of customer and measurement data administration
• Creation of system structures – from the system all the way down to the measuring points
• Quick and easy generation of a legally secure report per ZVEH

PROFITEST PRIME AC – reliable measuring and testing

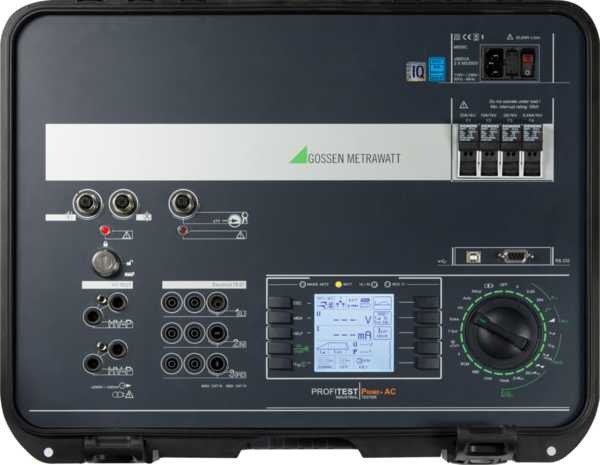

• Easy operation with rotary switch
• Predefined test sequences for structured testing
• Coded plugs assure error-free testing
• On-site help thanks to helping function with wiring diagrams
• Measuring category: 600 V CAT III / 300 V CAT IV
• 4-wire measuring method – no compensation of the measurement cables is required

Applications

Standards-compliant and safe – the PROFITEST PRIME series implements all measuring tasks safely and in compliance with the standards, and it makes testing quick and safe for electricians and other authorized persons in accordance with a variety­ of various application and product standards, for example:

• DIN VDE 0100-600 / IEC 60364-6
• DIN VDE 0105-100 / EN 50110-1
• VDE 0113-1 / DIN EN 60204-1
• VDE 0660-600-1 / DIN EN 61439-1
• VDE 0126-23 / DIN EN 62446
• VDE 0122-1 / DIN EN 61851-1
