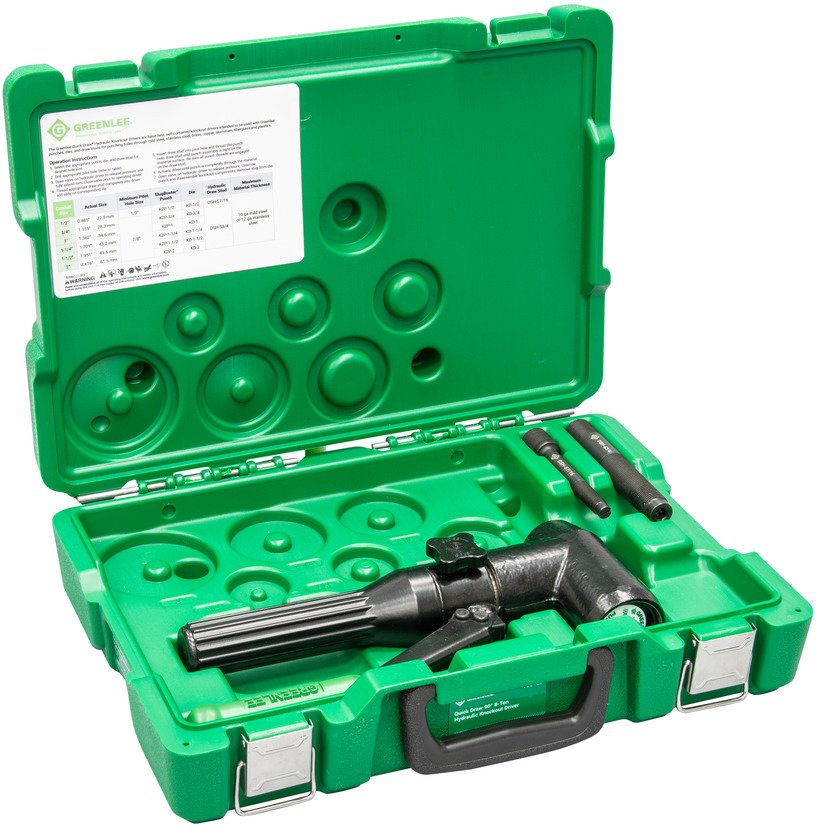

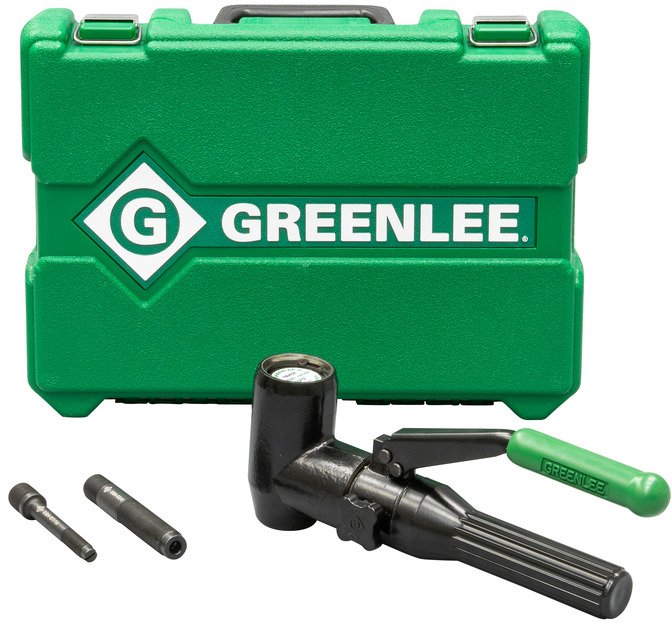

Greenlee 7904SB – Quick Draw 90, 8-Ton Hydraulic Knockout Driver (without Slug Buster)

The Quick Draw’s compact design delivers 8 tons of punching force for portability and fast, easy one-person operation. Punch 1/2″ to 2″ conduit size holes in up to 10-gauge mild steel and 12-gauge stainless steel; also cuts aluminum, brass, copper, fiberglass and plastics. Please see below for more information on cutting capacities.

Available in three orientations

The Quick Draw is available in three styles to offer maximum versatility. Each is also offered with and without a Slug Buster 0.5 to 2″ kit.

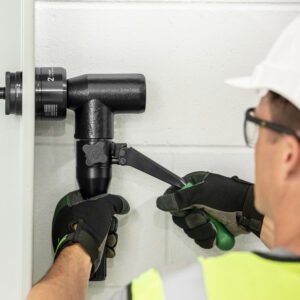

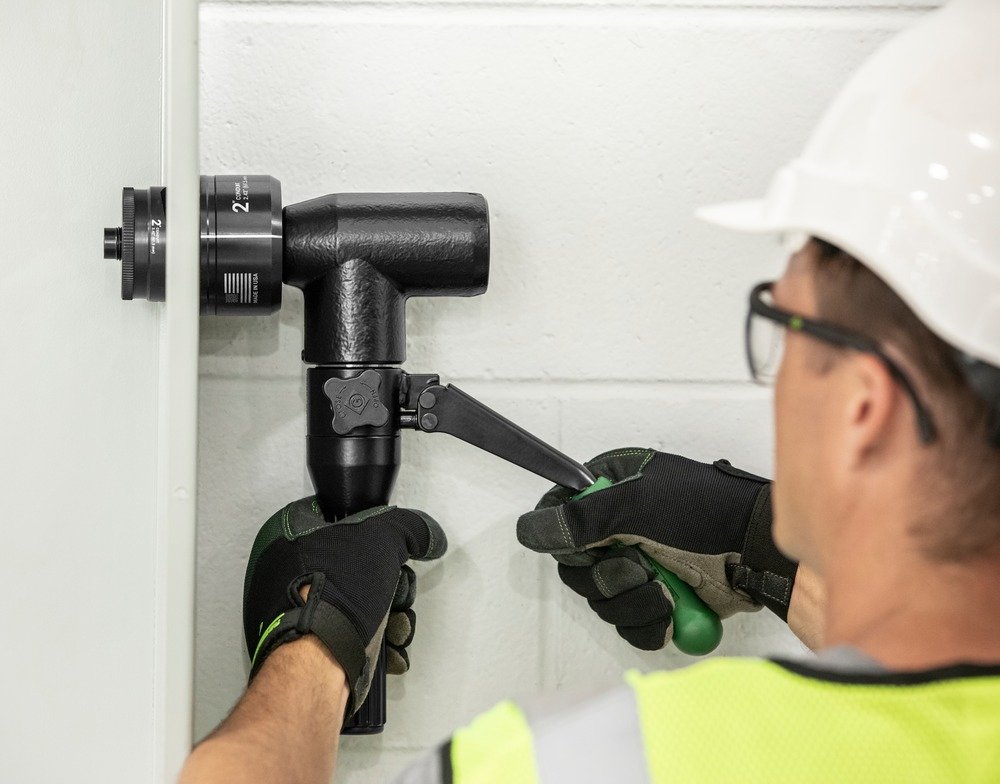

• Quick Draw 90 – head is positioned 90 degrees to the tool
• Quick Draw – for straight on punching
• Quick Draw Flex – flexible head for use in tight areas

Cutting capacity

These tools are designed to be used with the following Greenlee items:

• Standard punches, dies, and draw studs
• Slug-Buster punches, dies, and draw studs
• Slug-Splitter punches, dies, and draw studs
• SPEED PUNCH Knockout System
• Electronic connector panel punches
• Special shape punches, dies, and draw studs (“D”, Double “D”, Key, Square, Rectangular, and Oiltight with notches)

Standard, Slug-Buster, Electronic Connector Panel Punches, and special shape punches can punch holes through mild steel, brass, copper, aluminum, fiberglass, and plastics, with limited stainless steel capability.

Slug-Splitter punches, dies, and draw studs are capable of punching through all of these materials and are optimized for stainless steel.
