Greenlee CM-1560 – Clamp Meter, AC/DC True RMS
47 people are viewing this product right now
Original price was: $417.01.$335.11Current price is: $335.11.
Shipping calculated at checkout.
Estimated delivery:3 days
CLAMPMETER, AC/DC (CM-1560)
- Measures AC+DC current
- AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance and frequency
- Tests continuity and diodes
- Flashlight inside clamp jaw for easier work in dark locations
- Backlight & relative mode for added versatility
- Peak-RMS measures motor inrush current
- AmpTip™ increases accuracy on small wires and low current
- Two voltage detection modes – noncontact or using a single test lead
- Data hold
- Recording of Maximum, Minimum and Average readings
- Crest (peak hold) feature captures current or voltage peaks as short as 5 milliseconds
- Lifetime Limited Warranty
Guarantee Safe and Secure Payment Checkout
Description

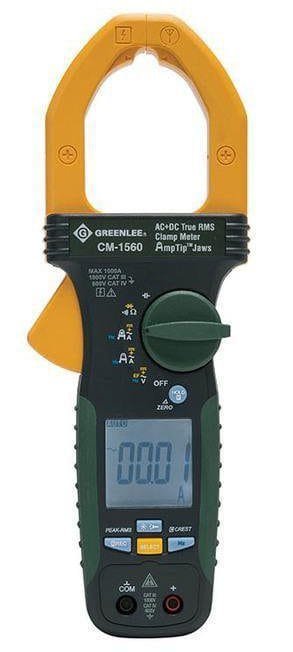

Greenlee CM-1560 – Clamp Meter, AC/DC True RMS
- AC/DC True RMS
- Peak RMS
- Crest factor
- Up to 1000 AC/DC amps and volts
- Jaw flashlight for ease of use
- CAT IV 600V, CAT III 1000V
The Greenlee CM-1560 Clamp Meter is a hand-held testing device with the following measurement capabilities: AC and DC voltage, AC current, AC current AmpTip™, frequency, non-contact electric field (EF) detection, resistance, and capacitance. It also check diodes and verify continuity. This meter is designed to be placed on or removed from insulated or uninsulated conductors.
Other capabilities include:
- Hold Mode to capture the present LCD value
- Record Minimum, Maximum, or Average Mode
- Zero Mode
- Intelligent Auto Power Off
- Automatic ranging
- Backlit LCD
Clamp Meters/Clamp Meters Template | |
|---|---|
| True RMS | Yes |
| Maximum Current AC | 1000 A |
| Maximum Current DC | 1000 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Manual |
Product General Attributes | |
| Unique Features | • Amperage Measurement : 60, 600, 1000 Amps AC+DC • Frequency Rating : Voltage: 50/60 Hz. Current: 40 to 400 Hz • Voltage Measurement : 600, 1000 Volts AC/DC |
| Safety Approval | CE, UL |
| Product Height | 3.7 IN |
| Product Length | 10.1 IN |
| Product Width | 1.7 IN |
| HTS/Schedule B Number | 9030.33.3400 |
| ECCN Number | EAR99 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 3.25 IN |
| UPC | 783310021889 |
| Shipping Length | 14.00 IN |
| Shipping Width | 6.50 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec Sheets
| Dimensions | 10.1 × 1.7 × 3.7 in |
|---|
