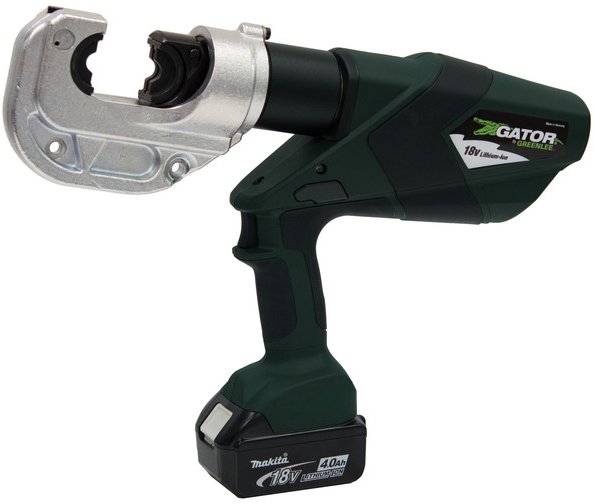

Greenlee EK1240LX11 – 12 Ton Crimper (42mm Opening), with Two Batteries and 120V Charger
8 people are viewing this product right now
Original price was: $6,404.20.$5,251.44Current price is: $5,251.44.
Shipping calculated at checkout.
Estimated delivery:4 days
CRIMPER, 12T LI, STD, 120V
- Twelve ton crimper
- Includes two batteries and a 120 volt charger
- Adapter for corded operation sold separately
- Several power options available – batteries, power cord, or without a power source
- Uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry “U” style crimping dies
- 1.65 IN (42mm) opening
- Intelligent Crimping System Technology provides visual and audible alert if force is below specification
- Automatic Retraction Stop (ARS) retracts the ram just enough to get ready for the next cycle saving time and energy
- Forward handle position improves tool balance
- One trigger controls all tool functions
Guarantee Safe and Secure Payment Checkout
Description
Greenlee EK1240LX11 – 12 Ton Crimper (42mm Opening), with Two Batteries and 120V Charger
- Twelve ton crimper
- Includes two batteries and a 120 volt charger
- Adapter for corded operation sold separately
- Several power options available – batteries, power cord, or without a power source
- Uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry “U” style crimping dies
The Greenlee EK1240LX are hand-held, self-contained tools intended to crimp aluminum and copper connectors onto the electrical cable. These tools have a retraction stop feature which allows the operator to stop the retraction motion of the ram to shorten cycle time. The EK1240LX also contains Bluetooth connectivity, which is enabled through the Gator Eye app.
Several power source options
This product is available with several power source options, which are denoted by the end of the part number (11, 12, 22, 120, 230, B). The options are batteries/charger, a power cord or neither.
- Battery powered (denoted by 11, 12, 22)
- Includes two batteries
- Three options for charger voltage (12V, 120V, 230V)
- Adapter for corded operation is available as an optional item – it snaps on just like a battery, but has a plug coming off of it
- 120V = part number EAC18120
- 230V = part number EAC18230
- Power cord (denoted by 120, 230)
- Does not include batteries or a charger
- Two voltage options (120V, 230V)
- These plug into a power source with an included adapter. The adapter snaps on like a battery, but has a power cord coming off of it
- Bare (denoted by B)
- ***DOES NOT INCLUDE ANY TYPE OF POWER SUPPLY***
- Does not include batteries, a charger or a power cord
This chart below provides an overview of items in this series.
| Batteries and charger | Power Cord | None | ||||
| 120V | 12V | 230V | 120V | 230V | ||
| EK1240LX11 | ✔ | |||||
| EK1240LX12 | ✔ | |||||
| EK1240LX22 | ✔ | |||||
| EK1240LX120 | ✔ | |||||
| EK1240LX230 | ✔ | |||||
| EK1240LXB | ✔ | |||||
Intelligence
Greenlee Gator crimping and cutting tools… investing in technology to improve productivity, safety and reliability
- Monitors Pressure – 32 times every second to ensure proper force is applied at the crimping tool
- Polices the Crimp – Alerts operator visually and audibly if cycle is not performed correctly
- Retracts Automatically – Tool signals user that crimp is complete by retracting ram automatically
- Saves Time – Smart tool minimizes the retraction distance after each cycle utilizing features such as Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle, saving time and energy. Another feature is Retraction Stop Repeat (RSR) which allows the operator to partially retract the ram repeating the retraction for subsequent crimps.
Tools/Crimpers Template | |
|---|---|
| Crimper Tonnage | 12 |
| Insulated | No |
| Wire Gauge Capability (List All) | 8 AWG |
Product General Attributes | |
| Product Height | 13.00 IN |
| Product Length | 16.00 IN |
| Product Width | 3.00 IN |
| Country of Origin | Germany |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsOther
| Dimensions | 16 × 3 × 13 in |
|---|
