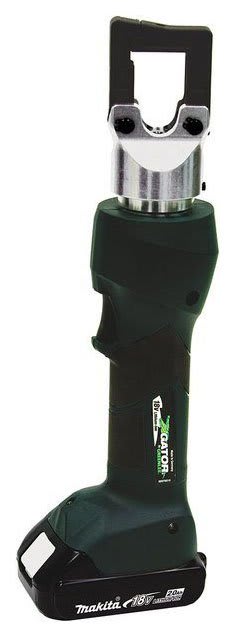

Greenlee EK410LX22 – Four Ton Inline Crimper, with Two Batteries and 230V Charger
37 people are viewing this product right now
Original price was: $2,593.85.$2,092.32Current price is: $2,092.32.
Shipping calculated at checkout.
Estimated delivery:3 days
CRIMPER, 4T LI, STD, 230V
- Includes two batteries and 230 volt charger
- Adapter for corded operation sold separately
- Several power options available – batteries, power cord, or without a power source
- Uses KC4, KA4 and KD4 crimping dies
- Inline tool style is light weight and very easy to control
- Intelligent Crimping System monitors the force of each crimp and a visual and audible alert if the force is below specifications
- One trigger controls all tool functions
- Crimping head rotates 350 degrees
- Tools automatically retract when the crimping cycle is complete
Guarantee Safe and Secure Payment Checkout
Description
Greenlee EK410LX22 – Four Ton Inline Crimper, with Two Batteries and 230V Charger
- Four ton crimper
- Includes two batteries and 230 volt charger
- Adapter for corded operation sold separately
- Several power options available – batteries, power cord, or without a power source
- Uses KC4, KA4 and KD4 crimping dies
The Greenlee EK410LX is a hand-held, self-contained crimping tool intended to crimp copper and aluminum cable. It features Bluetooth connectivity, which is enabled through the Gator Eye app.
Several power source options
This product is available with several power source options, which are denoted by the end of the part number (11, 12, 22, 120, 230, B). The options are batteries/charger, a power cord or neither.
- Battery powered (denoted by 11, 12, 22)
- Includes two batteries
- Three options for charger voltage (12V, 120V, 230V)
- Adapter for corded operation is available as an optional item – it snaps on just like a battery, but has a plug coming off of it
- 120V = part number EAC18120
- 230V = part number EAC18230
- Power cord (denoted by 120, 230)
- Does not include batteries or a charger
- Two voltage options (120V, 230V)
- These plug into a power source with an included adapter. The adapter snaps on like a battery, but has a power cord coming off of it
- Bare (denoted by B)
- ***DOES NOT INCLUDE ANY TYPE OF POWER SUPPLY***
- Does not include batteries, a charger or a power cord
This chart below provides an overview of items in this series.
| Batteries and charger | Power Cord | None | ||||
| 120V | 12V | 230V | 120V | 230V | ||
| EK410LX11 | ||||||
| EK410LX12 | ||||||
| EK410LX22 | ||||||
| EK410LX120 | ||||||
| EK410LX230 | ||||||
| EK410LXB | ||||||
Intelligence
Greenlee Gator crimping and cutting tools… investing in technology to improve productivity, safety and reliability
Monitors Pressure – 32 times every second to ensure proper force is applied at the crimping tool
Polices the Crimp – Alerts operator visually and audibly if cycle is not performed correctly
Retracts Automatically – Tool signals user that crimp is complete by retracting ram automatically
Saves Time – Smart tool minimizes the retraction distance after each cycle utilizing features such as Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle, saving time and energy. Another feature is Retraction Stop Repeat (RSR) which allows the operator to partially retract the ram repeating the retraction for subsequent crimps.
Tools/Crimpers Template | |
|---|---|
| Crimper Tonnage | 4 |
| Insulated | No |
| Wire Gauge Capability (List All) | 8 AWG-Cu,Al |
Product General Attributes | |
| Product Height | 7.00 IN |
| Product Length | 23.00 IN |
| Product Width | 19.00 IN |
| Country of Origin | Germany |
| Shipping Height | 7.00 IN |
| Shipping Length | 23.00 IN |
| Shipping Width | 19.00 IN |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 23 × 19 × 7 in |
|---|
