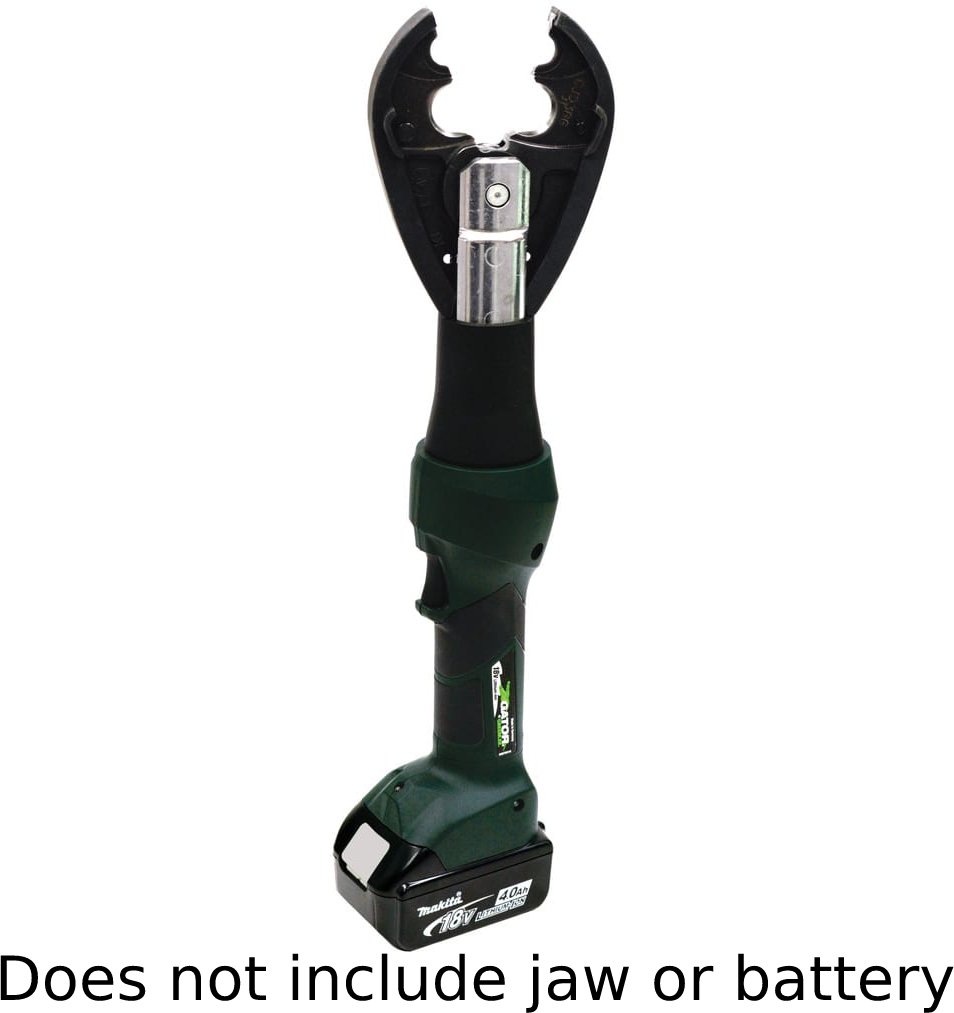

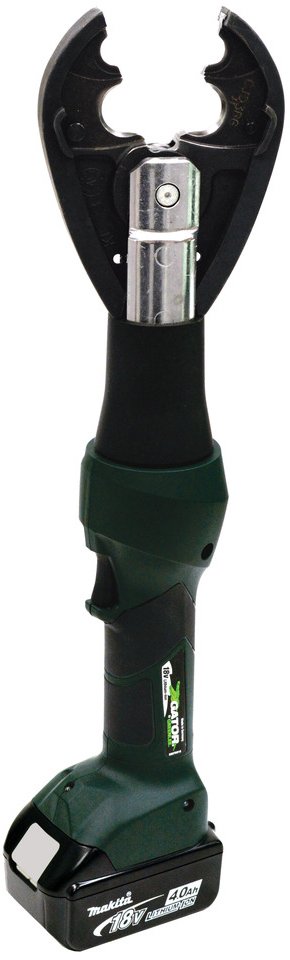

Greenlee EK425LX – 6 Ton Crimper, Li-Ion, Standard (DOES NOT HAVE JAW OR BATTERY)
34 people are viewing this product right now
Original price was: $1,818.62.$1,491.28Current price is: $1,491.28.
Shipping calculated at checkout.
Estimated delivery:5 days
CRIMPER, 6T LI-ION, STD
- THIS VERSION DOES NOT INCLUDE A JAW OR BATTERY
- Six ton crimper
- Intelli-CRIMP Technology
- One trigger controls all tool functions
- Crimping head rotates 350°
- Patented spring pin jaw engagement
- LED work light illuminates dark work areas
- LED display with real time PSI reading
- Bluetooth enabled
Guarantee Safe and Secure Payment Checkout
Description
Greenlee EK425LX – 6 Ton Crimper, Li-Ion, Standard
- Six ton crimper
- Intelli-CRIMP® Technology
- One trigger controls all tool functions
- Crimping head rotates 350°
The Greenlee EK425LX is a six ton, handheld crimping tool with removable jaw. The chart below provides an overview of available models. There are several jaws to choose from, as well as charger voltages for the battery. Please note, “Bare” models do not include a battery or charger.
| Charger voltage | |||||
| Jaw | 120 | 12 | 230 | Bare | |
| EK425LXD11 | CJD3 | ||||
| EK425LXD12 | CJD3 | ||||
| EK425LXD22 | CJD3 | ||||
| EK425LXDB | CJD3 | ||||
| EK425LXDBG11 | CJD3BG | ||||
| EK425LXDBG12 | CJD3BG | ||||
| EK425LXDBG22 | CJD3BG | ||||
| EK425LXDBGB | CJD3BG | ||||
| EK425LXDO11 | CJD30 | ||||
| EK425LXDO12 | CJD30 | ||||
| EK425LXDO22 | CJD30 | ||||
| EK425LXDOB | CJD30 | ||||
| EK425LXK11 | CJK | ||||
| EK425LXK12 | CJK | ||||
| EK425LXK22 | CJK | ||||
| EK425LXKB | CJK | ||||
Also compatible with other jaws
The jaws on the EK425LX are removable. Greenlee offers a variety of optional jaws for other crimping and cutting tasks.
Crimping
- CJD3O
- With D and O grooves
- CJD3BG
- With D and BG die grooves
- Accepts W dies
- CJD3
- With single D die groove – Snub Nose
- Accepts W dies
- CJK
- With Kearney O die grooves
- CJXPJ
- With Nicopress X, P and J die grooves
Cutting
- CJB
- For one time disposable lock hasps
- CJ-CUAL
- For cutting copper and aluminum cable, 600 kcmil
- CJ-ACSR1
- 477 kcmil Pelican ACSR
- 5/16″ Guy Strand (EHS)
- 3/8″ Guy Strand (HS)
Intelligence
Greenlee Gator crimping and cutting tools… investing in technology to improve productivity, safety and reliability
Monitors Pressure – 32 times every second to ensure proper force is applied at the crimping tool
Polices the Crimp – Alerts operator visually and audibly if cycle is not performed correctly
Retracts Automatically – Tool signals user that crimp is complete by retracting ram automatically
Saves Time – Smart tool minimizes the retraction distance after each cycle utilizing features such as Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle, saving time and energy. Another feature is Retraction Stop Repeat (RSR) which allows the operator to partially retract the ram repeating the retraction for subsequent crimps.
Tools/Crimpers Template | |
|---|---|
| Crimper Tonnage | 6 |
| Insulated | No |
Product General Attributes | |
| Product Height | 5.00 IN |
| Product Length | 7.00 IN |
| Product Width | 19.00 IN |
| Shipping Weight | 3.85 LBS |
| Country of Origin | Germany |
| Shipping Height | 5.00 IN |
| Shipping Length | 7.00 IN |
| Shipping Width | 19.00 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec Sheets
| Dimensions | 7 × 19 × 5 in |
|---|
