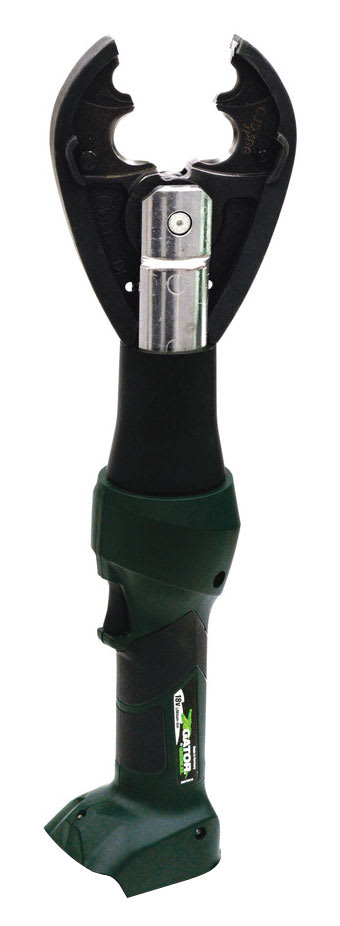

Greenlee EK425LXDOB – Six Ton Crimper with CJD3O Jaw; Bare Model – Does Not Include a Power Supply
33 people are viewing this product right now
Original price was: $2,587.69.$2,121.91Current price is: $2,121.91.
Shipping calculated at checkout.
Estimated delivery:3 days
CRIMPER, 6T LI, STD, CJD3O, BARE
- Six ton crimper
- Includes CJD3O jaw
- CJD3O jaw has D and O grooves
- ***BARE MODEL – DOES NOT INCLUDE A POWER SUPPLY***
- ***DOES NOT INCLUDE BATTERIES, CHARGER OR POWER CORD***
- Jaw is removable – several other optional jaws available for crimping and cutting
- Tool is operated with one hand, leaving the other hand free to position the cable and connector
- Inline tool style is lightweight and very easy to control
- Crimping jaws open wide to fit easily over connectors
- Will complete approximately 325 crimps per battery charge on 4/0 AWG splices
Guarantee Safe and Secure Payment Checkout
Description
Greenlee EK425LXDOB – Six Ton Crimper with CJD3O Jaw; Bare Model – Does Not Include a Power Supply
- Six ton crimper
- Includes CJD3O jaw
- CJD3O jaw has D and O grooves
- ***BARE MODEL – DOES NOT INCLUDE A POWER SUPPLY***
- ***DOES NOT INCLUDE BATTERIES, CHARGER OR POWER CORD***
The Greenlee EK425LX is a six ton, handheld crimping tool with removable jaw. The chart below provides an overview of available models. There are several jaws to choose from, as well as charger voltages for the battery. Please note, “Bare” models do not include a battery or charger.
| Charger voltage | |||||
| Jaw | 120 | 12 | 230 | Bare | |
| EK425LXD11 | CJD3 | ||||
| EK425LXD12 | CJD3 | ||||
| EK425LXD22 | CJD3 | ||||
| EK425LXDB | CJD3 | ||||
| EK425LXDBG11 | CJD3BG | ||||
| EK425LXDBG12 | CJD3BG | ||||
| EK425LXDBG22 | CJD3BG | ||||
| EK425LXDBGB | CJD3BG | ||||
| EK425LXDO11 | CJD30 | ||||
| EK425LXDO12 | CJD30 | ||||
| EK425LXDO22 | CJD30 | ||||
| EK425LXDOB | CJD30 | ||||
| EK425LXK11 | CJK | ||||
| EK425LXK12 | CJK | ||||
| EK425LXK22 | CJK | ||||
| EK425LXKB | CJK | ||||
Also compatible with other jaws
The jaws on the EK425LX are removable. Greenlee offers a variety of optional jaws for other crimping and cutting tasks.
Crimping
- CJD3O
- With D and O grooves
- CJD3BG
- With D and BG die grooves
- Accepts W dies
- CJD3
- With single D die groove – Snub Nose
- Accepts W dies
- CJK
- With Kearney O die grooves
- CJXPJ
- With Nicopress X, P and J die grooves
Cutting
- CJB
- For one time disposable lock hasps
- CJ-CUAL
- For cutting copper and aluminum cable, 600 kcmil
- CJ-ACSR1
- 477 kcmil Pelican ACSR
- 5/16″ Guy Strand (EHS)
- 3/8″ Guy Strand (HS)
Intelligence
Greenlee Gator crimping and cutting tools… investing in technology to improve productivity, safety and reliability
Monitors Pressure – 32 times every second to ensure proper force is applied at the crimping tool
Polices the Crimp – Alerts operator visually and audibly if cycle is not performed correctly
Retracts Automatically – Tool signals user that crimp is complete by retracting ram automatically
Saves Time – Smart tool minimizes the retraction distance after each cycle utilizing features such as Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle, saving time and energy. Another feature is Retraction Stop Repeat (RSR) which allows the operator to partially retract the ram repeating the retraction for subsequent crimps.
Tools/Crimpers Template | |
|---|---|
| Crimper Tonnage | 6 |
| Insulated | No |
| Wire Gauge Capability (List All) | Connector 10-1/0 AWG 5/8 IN Service Entrance Conne |
Product General Attributes | |
| Product Height | 8.00 IN |
| Product Length | 23.00 IN |
| Product Width | 12.00 IN |
| Country of Origin | Germany |
| Shipping Height | 8.00 IN |
| Shipping Length | 23.00 IN |
| Shipping Width | 12.00 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec Sheets
| Dimensions | 23 × 12 × 8 in |
|---|
