Description

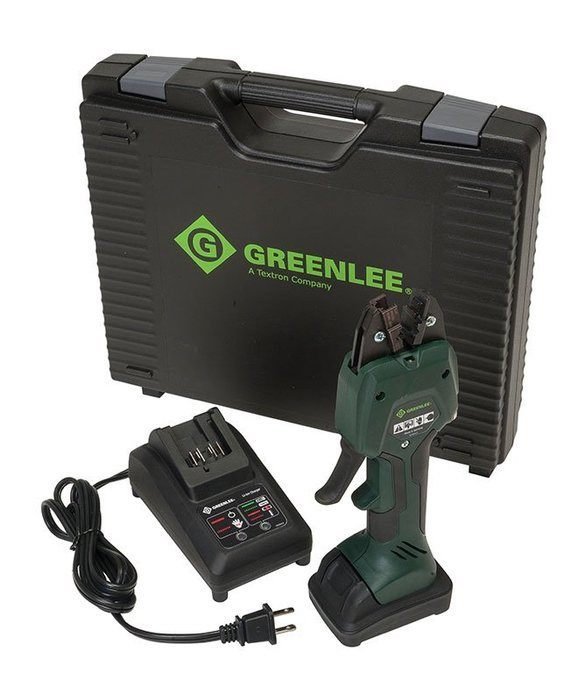

Greenlee EK50ML12022 – 1.5 Ton Crimper (12mm Jaw), with Battery and 230 Volt Charger
- 1.5 ton crimper
- With 12mm jaw
- Includes battery and 230 volt charger
- Ergonomic; total weight less than 2.2 lb
- Crimp 3x faster with 90% less force

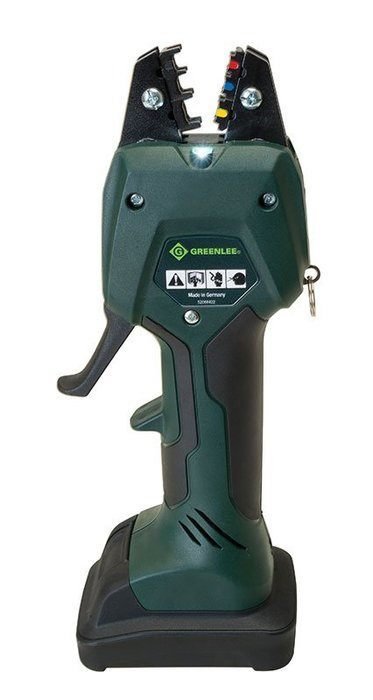

The Greenlee EK50ML is a battery powered, hand held crimping tool with 1.5 ton capacity. It is available with two jaws sizes (12, 13.8mm) and several power options. Battery chargers are available for 110 or 230 volt. Please note, “Bare” models do not include a power supply.
The following is an overview of available part numbers:
| Jaw | Battery Charger | ||||
| 12mm | 13.8mm | 110v | 230v | Bare | |
| EK50ML12011 | |||||
| EK50ML12022 | |||||
| EK50ML120B | |||||
| EK50ML13811 | |||||
| EK50ML13822 | |||||
| EK50ML138B | |||||
Compatible Die Sets
The EK50ML138 is compatible with all Greenlee Kwik Cycle and CrimpALL dies for various types of cables and sizes.
Both the EK50ML120 and EK50ML138 are also compatible with dies from several other manufacturers.
| Wezag® | Panduit® | Thomas & Betts® | Ideal® | |
| EK50ML120 | CS30, CS150 | CT-2600, CT-300 | Sta-Kon® | |
| EK50ML138 | Crimpmaster™ |
The Revolutionary PowerSense Function
1. Manual Clamping
PowerSense™ Technology: Pull trigger part way and adjust material to ideal position before crimping.
2. Motorized Crimping
Depress trigger completely to activate motorized crimp.
3. … and Done
Release trigger and jaws will open automatically.
Tools/Crimpers Template | |
|---|---|
| Crimper Tonnage | 1.5 |
| Insulated | No |
Product General Attributes | |
| Warranty | 2 YEARS |
| Product Weight | 2.2 LBS |
| Product Height | 5.00 IN |
| Product Length | 14.00 IN |
| Product Width | 12.00 IN |
| HTS/Schedule B Number | 8203.20.6060 |
| ECCN Number | EAR99 |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Germany |
| Shipping Height | 5.00 IN |
| UPC | 783310031239 |
| Shipping Length | 14.00 IN |
| Shipping Width | 12.00 IN |
