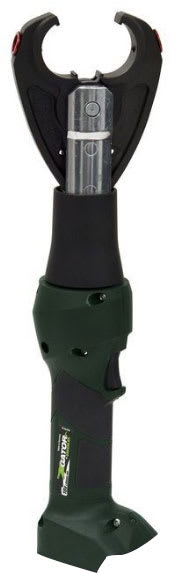

Greenlee EK628LXB – Six Ton Inline Crimper with Removable Jaw; Bare Model – Does Not Include a Power Supply
28 people are viewing this product right now
Original price was: $2,499.14.$2,015.92Current price is: $2,015.92.
Shipping calculated at checkout.
Estimated delivery:5 days
CRIMPER, 6T LI, STD, BARE
- Six ton inline crimper with removable jaw
- ***BARE MODEL – DOES NOT INCLUDE A POWER SUPPLY***
- ***DOES NOT INCLUDE BATTERIES, CHARGER OR POWER CORD***
- Several power options available – batteries, power cord, or without a power source
- Includes CJ22 jaw – used with Greenlee 22 series dies
- Compatible with several other optional crimping and cutting jaws
- In-line tool style is lightweight and very easy to control
- Crimping head rotates 350°
- Patented spring pin jaw engagement
- LED work light illuminates dark work areas
Guarantee Safe and Secure Payment Checkout
Description
Greenlee EK628LXB – Six Ton Inline Crimper with Removable Jaw; Bare Model – Does Not Include a Power Supply
- Six ton inline crimper with removable jaw
- ***BARE MODEL – DOES NOT INCLUDE A POWER SUPPLY***
- ***DOES NOT INCLUDE BATTERIES, CHARGER OR POWER CORD***
- Several power options available – batteries, power cord, or without a power source
- Includes CJ22 jaw – used with Greenlee 22 series dies
The Greenlee EK628LX are hand-held, self-contained crimping tools with an LCD screen and removable crimping jaws. The EK628LX features Bluetooth connectivity, which is enabled through the Gator Eye app.
Several power source options
This product is available with several power source options, which are denoted by the end of the part number (11, 12, 22, 120, 230, B). The options are batteries/charger, a power cord or neither.
- Battery powered (denoted by 11, 12, 22)
- Includes two batteries
- Three options for charger voltage (12V, 120V, 230V)
- Adapter for corded operation is available as an optional item – it snaps on just like a battery, but has a plug coming off of it
- 120V = part number EAC18120
- 230V = part number EAC18230
- Power cord (denoted by 120, 230)
- Does not include batteries or a charger
- Two voltage options (120V, 230V)
- These plug into a power source with an included adapter. The adapter snaps on like a battery, but has a power cord coming off of it
- Bare (denoted by B)
- ***DOES NOT INCLUDE ANY TYPE OF POWER SUPPLY***
- Does not include batteries, a charger or a power cord
This chart below provides an overview of items in this series.
| Batteries and charger | Power Cord | None | ||||
| 120V | 12V | 230V | 120V | 230V | ||
| EK628LX11 | ✔ | |||||
| EK628LX11 | ✔ | |||||
| EK628LX22 | ✔ | |||||
| EK628LX120 | ✔ | |||||
| EK628LX230 | ✔ | |||||
| EK628LXB | ✔ | |||||
Also compatible with other jaws
The jaws on the EK628LX are removable. Greenlee offers a variety of optional jaws for other crimping and cutting tasks.
Crimping
- CJD3O
- With D and O grooves
- CJD3BG
- With D and BG die grooves
- Accepts W dies
- CJD3
- With single D die groove – Snub Nose
- Accepts W dies
- CJK
- With Kearney O die grooves
- CJXPJ
- With Nicopress X, P and J die grooves
Cutting
- CJB
- For one time disposable lock hasps
- CJ-CUAL
- For cutting copper and aluminum cable, 600 kcmil
- CJ-ACSR1
- 477 kcmil Pelican ACSR
- 5/16″ Guy Strand (EHS)
- 3/8″ Guy Strand (HS)
Intelligence
Greenlee Gator crimping and cutting tools… investing in technology to improve productivity, safety and reliability
Monitors Pressure – 32 times every second to ensure proper force is applied at the crimping tool
Polices the Crimp – Alerts operator visually and audibly if cycle is not performed correctly
Retracts Automatically – Tool signals user that crimp is complete by retracting ram automatically
Saves Time – Smart tool minimizes the retraction distance after each cycle utilizing features such as Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle, saving time and energy. Another feature is Retraction Stop Repeat (RSR) which allows the operator to partially retract the ram repeating the retraction for subsequent crimps.
Tools/Crimpers Template | |
|---|---|
| Crimper Tonnage | 6 |
| Insulated | No |
| Wire Gauge Capability (List All) | 8 AWG-Cu,Al |
Product General Attributes | |
| Product Height | 8.00 IN |
| Product Length | 24.00 IN |
| Product Width | 16.00 IN |
| Country of Origin | Germany |
| Shipping Height | 8.00 IN |
| Shipping Length | 24.00 IN |
| Shipping Width | 16.00 IN |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 24 × 16 × 8 in |
|---|
