Greenlee ES20LX11 – 20mm ACSR Cutter, with Two Batteries and 120 Volt Charger
11 people are viewing this product right now
Original price was: $3,769.09.$3,090.65Current price is: $3,090.65.
Shipping calculated at checkout.
Estimated delivery:5 days
CUTTER WIRE, LI, 20MM STD, 120V
- Inline cutting tool with 20 mm jaw
- For cutting ACSR, Guy Strand, steel and more – see below for capacities
- Includes two batteries and 120 volt charger
- Adapter for corded operation sold separately
- Several power options available – batteries, power cord, or without a power source
- Designed primarily to cut distribution ACSR cable
- Scissor style blades make it easy to cut short tag ends on tap cables in H-tap connectors
- One trigger controls all tool functions
- Cutting head rotates 350 degrees
- For the Greenlee cutting tool selection guide, Please click here
Guarantee Safe and Secure Payment Checkout
Description
Greenlee ES20LX11 – 20mm ACSR Cutter, with Two Batteries and 120 Volt Charger
- Inline cutting tool with 20 mm jaw
- For cutting ACSR, Guy Strand, steel and more – see below for capacities
- Includes two batteries and 120 volt charger
- Adapter for corded operation sold separately
- Several power options available – batteries, power cord, or without a power source

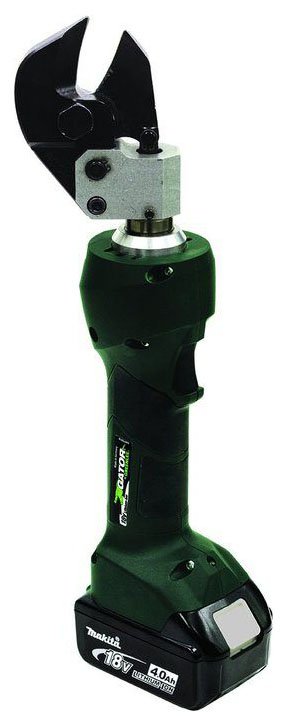

The Greenlee ES20LX is an inline cutting tool with 20mm jaw, designed primarily to cut distribution ACSR cable. Its scissor style blades make it easy to cut short tag ends on tap cables in H-tap connectors, while the inline style makes it both easy to control and lightweight.
The cutting head rotates 350 degrees and one trigger controls all tool functions.
To view the Greenlee cutting tool selection guide, Please click here
Cutting capacity
The ES20LX has the following cutting capacities:
- Max Diameter: 3/4″ diameter
- ACSR: 336.4 kcmil Merlin
- Standard Guy Strand: 3/8″ diameter
- Ground Rod: 3/8″ diameter
- Rebar (SCH 60): 3/8″ diameter
- Soft Steel Bolts: 3/8″ diameter
Several power source options
This product is available with several power source options, which are denoted by the end of the part number (11, 12, 22, 120, 230, B). The options are batteries/charger, a power cord or neither.
- Battery powered (denoted by 11, 12, 22)
- Includes two batteries
- Three options for charger voltage (12V, 120V, 230V)
- Adapter for corded operation is available as an optional item – it snaps on just like a battery, but has a plug coming off of it
- 120V = part number EAC18120
- 230V = part number EAC18230
- Power cord (denoted by 120, 230)
- Does not include batteries or a charger
- Two voltage options (120V, 230V)
- These plug into a power source with an included adapter. The adapter snaps on like a battery, but has a power cord coming off of it
- Bare (denoted by B)
- ***DOES NOT INCLUDE ANY TYPE OF POWER SUPPLY***
- Does not include batteries, a charger or a power cord
| Batteries and charger | Power cord | None | ||||
| Model | 120v | 12v | 230v | 120v | 230v | |
| ES20LX11 | ✔ | |||||
| ES20LX12 | ✔ | |||||
| ES20LX22 | ✔ | |||||
| ES20LX120 | ✔ | |||||
| ES20LX230 | ✔ | |||||
| ES20LXB | ✔ | |||||
Battery Powered Cable Cutters Template | |
|---|---|
| Insulated | No |
| Cutting Material | Hard metal |
Product General Attributes | |
| Product Height | 8.00 IN |
| Product Length | 22.00 IN |
| Product Width | 12.00 IN |
| Shipping Weight | 12.22 LBS |
| Country of Origin | Germany |
| Shipping Height | 8.00 IN |
| Shipping Length | 22.00 IN |
| Shipping Width | 12.00 IN |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 22 × 12 × 8 in |
|---|
