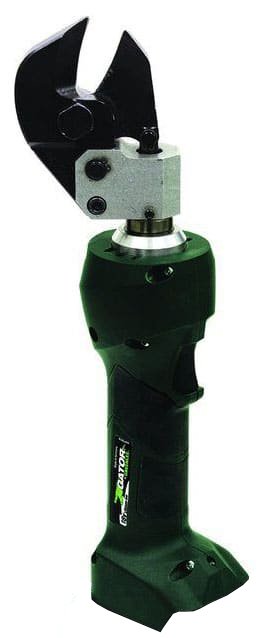

Greenlee ES20LXB – 20mm ACSR Cutter, Bare Model – Does Not Include a Power Supply

Greenlee ES20LXB – 20mm ACSR Cutter, Bare Model – Does Not Include a Power Supply

The Greenlee ES20LX is an inline cutting tool with 20mm jaw, designed primarily to cut distribution ACSR cable. Its scissor style blades make it easy to cut short tag ends on tap cables in H-tap connectors, while the inline style makes it both easy to control and lightweight.

The cutting head rotates 350 degrees and one trigger controls all tool functions.

To view the Greenlee cutting tool selection guide, Please click here

Cutting capacity

The ES20LX has the following cutting capacities:

• Max Diameter: 3/4″ diameter
• ACSR: 336.4 kcmil Merlin
• Standard Guy Strand: 3/8″ diameter
• Ground Rod: 3/8″ diameter
• Rebar (SCH 60): 3/8″ diameter
• Soft Steel Bolts: 3/8″ diameter

Several power source options

This product is available with several power source options, which are denoted by the end of the part number (11, 12, 22, 120, 230, B). The options are batteries/charger, a power cord or neither.

• Battery powered (denoted by 11, 12, 22)
  • Includes two batteries
  • Three options for charger voltage (12V, 120V, 230V)
  • Adapter for corded operation is available as an optional item – it snaps on just like a battery, but has a plug coming off of it
    • 120V = part number EAC18120
    • 230V = part number EAC18230
• Power cord (denoted by 120, 230)
  • Does not include batteries or a charger
  • Two voltage options (120V, 230V)
  • These plug into a power source with an included adapter. The adapter snaps on like a battery, but has a power cord coming off of it
• Bare (denoted by B)
  • ***DOES NOT INCLUDE ANY TYPE OF POWER SUPPLY***
  • Does not include batteries, a charger or a power cord
