Greenlee ESC105LX11 – 105mm Cable Cutter (up to 4″ Cu/Al), with Two Batteries and 120V Charger
10 people are viewing this product right now
Original price was: $6,819.17.$5,500.66Current price is: $5,500.66.
Shipping calculated at checkout.
Estimated delivery:5 days
CUTTER CABLE,LI,105MM STD,120V
- Pistol style cable cutter with 105 mm jaw
- Capacity – 4″ diameter (105 mm) copper and aluminum cable
- Includes two batteries and 120 volt charger
- Adapter for corded operation sold separately
- Several power options available – batteries, power cord, or without a power source
- For cutting large diameter underground power and communications cables
- Cutting head rotates 350 degrees
- Tools automatically retract when the cutting cycle is complete
- LED work light illuminates dark work areas
- For the Greenlee cutting tool selection guide, Please click here
Guarantee Safe and Secure Payment Checkout
Description

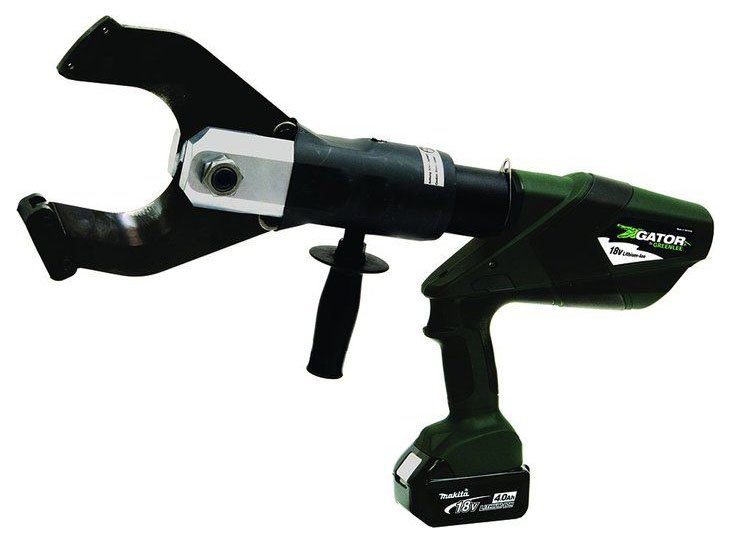

Greenlee ESC105LX11 – 105mm Pistol Style Cable Cutter (up to 4″ Cu/Al), with Two Batteries and 120V Charger
- Pistol style cable cutter with 105 mm jaw
- Capacity – 4″ diameter (105 mm) copper and aluminum cable
- Includes two batteries and 120 volt charger
- Adapter for corded operation sold separately
- Several power options available – batteries, power cord, or without a power source
The Greenlee ESC105LX is a high capacity cable cutter, designed to cut copper and aluminum cable up to 4″ (105 mm) in diameter. It features an LED screen communicating pressure levels, as well as tool diagnostics with real-time tool feedback.
The cutting head can rotate 350 degrees and the tools automatically retract when the cutting cycle is complete. Retraction Stop allows the operator to stop the ram retraction at any point simply by tapping the trigger, and then starting the next cutting cycle from that point, saving time and energy. An overmolded tacky grip area makes gripping the tool easier and more comfortable, while an LED work light illuminates dark areas.
To view the Greenlee cutting tool selection guide, Please click here
Several power source options
This product is available with several power source options, which are denoted by the end of the part number (11, 12, 22, 120, 230, B). The options are batteries/charger, a power cord or neither.
- Battery powered (denoted by 11, 12, 22)
- Includes two batteries
- Three options for charger voltage (12V, 120V, 230V)
- Adapter for corded operation is available as an optional item – it snaps on just like a battery, but has a plug coming off of it
- 120V = part number EAC18120
- 230V = part number EAC18230
- Power cord (denoted by 120, 230)
- Does not include batteries or a charger
- Two voltage options (120V, 230V)
- These plug into a power source with an included adapter. The adapter snaps on like a battery, but has a power cord coming off of it
- Bare (denoted by B)
- ***DOES NOT INCLUDE ANY TYPE OF POWER SUPPLY***
- Does not include batteries, a charger or a power cord
This chart below provides an overview of items in this series.
| Batteries and charger | Power cord | None | ||||
| Model | 120v | 12v | 230v | 120v | 230v | |
| ESC105LX11 | ✔ | |||||
| ESC105LX12 | ✔ | |||||
| ESC105LX22 | ✔ | |||||
| ESC105LX120 | ✔ | |||||
| ESC105LX230 | ✔ | |||||
| ESC105LXB | ✔ | |||||
Battery Powered Cable Cutters Template | |
|---|---|
| Insulated | No |
| Cutting Material | Soft metal |
Product General Attributes | |
| Product Height | 7.00 IN |
| Product Length | 23.00 IN |
| Product Width | 19.00 IN |
| Shipping Weight | 26.00 LBS |
| Country of Origin | Germany |
| Shipping Height | 7.00 IN |
| Shipping Length | 23.00 IN |
| Shipping Width | 19.00 IN |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 23 × 19 × 7 in |
|---|
