Description
Greenlee LS50L11B – 7 Ton Battery Powered Hydraulic Knockout Driver Package with Slug Buster Kit (0.5″ – 2”)
- 7 ton battery powered hydraulic knockout driver
- Full package with tool, case, battery, charger and Slug Buster kit (0.5″ – 2”)
- Several packages available – see below for more information
- 360 degree rotating head easily punches at any angle

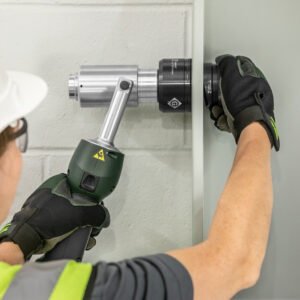

The Greenlee LS50L2 battery-hydraulic knockout driver is a hand-held, self-contained knockout driver intended to be used with Greenlee punches, dies, and draw studs for punching holes through mild steel, stainless steel, brass, copper, aluminum, fiberglass, and plastics.
Several packages available
The LS50L2 is offered in several packages with a variety of accessories. The following a brief overview of each:
| Model | Description |
| LS50L11SBSP | Package with Slug-Buster SPEED PUNCH 1/2″ to 2″ Conduit |
| LS50L11B4 | Package with Slug-Buster 1/2” to 4” conduit |
| LS50L11B | Package with Slug-Buster 1/2” to 2” conduit |
| LS50L11A | Driver, draw studs, battery, charger, and case |
| LS50LB | Driver and case only |
| LS50L2 | Driver only |
Accessory compatibility
The LS50L2 is designed to be used with the following Greenlee accessories:
- Standard punches, dies, and draw studs
- Slug-Buster punches, dies, and draw studs
- Slug-Splitter punches, dies, and draw studs
- SPEED PUNCH Knockout System
- Electronic connector panel punches
- Special shape punches, dies, and draw studs (“D”, Double “D”, Key, Square, Rectangular, and Oiltight with notches)
Standard and Slug-Buster, Electronic Connector Panel Punches, and special shape punches can punch holes through mild steel, brass, copper, aluminum, fiberglass, and plastics, with limited stainless steel capability. Slug-Splitter punches, dies, and draw studs are capable of punching through all of these materials and are optimized for stainless steel.
Overall capacity for this tool can be seen below:
| STAINLESS STEEL | |
| Slug-Splitter and Large 3-Point Punches | |
| Pipe and Conduit Size | Maximum Driver Rating |
| 1/2″ to 1-1/4″ | 10 ga (0.134″, 3mm) |
| 1-1/2″ to 2″ | 12 ga (0.104″, 2.5mm) |
| 2-1/2″ to 4″ | N/A |
| MILD STEEL | |
| Standard and Slug-Buster Punches | |
| Pipe and Conduit Size | Maximum Driver Rating |
| 1/2″ to 3″ | 10 ga (0.134″, 3mm) |
| 3-1/2″ to 4″ | 12 ga (0.104″, 2.5mm) |
Tool Layout
- Punch Head
- Return Button
- LED Indicator (red)
- LED Work Light (white)
- Trigger
Battery Powered Hydraulic Drivers Template | |
|---|---|
| Hydraulic Driver Tonnage | 7 |
Product General Attributes | |
| Unique Features | Package with Slug Buster 0.5 to 2″ |
| Product Height | 6.95 IN |
| Product Length | 23.00 IN |
| Product Width | 19.25 IN |
| HTS/Schedule B Number | 8203.40.6000 |
| ECCN Number | EAR99 |
| Country of Origin | United States |
| UPC | 783310049562 |
