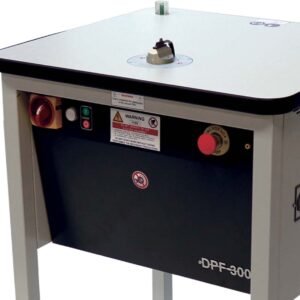

Hakko DPF-300-E (DPF-300 Depaneling System)

Hakko DPF-300-E (DPF-300 Depaneling System)

A new manual router table for depaneling PCB’s from a panel or multiblock. A portable depaneling system providing the same performance and quality of a high-end router machine, with no programming required, at a fraction of the cost compared to other machines.

Introducing the highly anticipated CHP DPF-300 Depaneling System, a direct upgrade from the popular CHP DPF-200. The DPF-300 adapts the quality and benefits of the DPF-200, but this new and improved dynamic system is equipped with an industrial type electric motor spindle, eliminating the need for compressed air to operate the system.

Safety

The shape of the interchangeable guide rail (Patent pending) assists the operator to safely place and maneuver the PCBs until the cut is completed. This prevents damage to the PCB should the operator insert the wrong size guide rail that does not match perfectly with the geometry and size of the panel’s slot.

Vacuum Pump and Filter System

A powerful vacuum pump is mounted directly under the table top, and a vacuum hose connected at the guide rail removes the PCB dust at the source for a clean and healthy work environment.

The fine dust particles are collected by a filter cartridge that is easy to access.

ESD Table Construction

The table is made of steel with a laminated ESD table top to protect against electrostatic discharge.

Minimum Vibration

The table’s steel construction provides a sturdy and stable working platform, and the high speed precision spindle operates at speeds up to 60,000 rpm with minimal vibration.

Portable

ESD zinc coated steel front feet and heavy duty rear casters make the system easy to move to another location.

Note:

Guide rail and milling bits NOT included and must be purchased separately
