Hakko FM205-01 – Soldering/Desoldering Station (Shop Air Required) with FM-2024 Desoldering Tool

• Single port soldering and desoldering station

• Shop air model
• Requires an external source of compressed air to operate
• If you do not have shop air, please see model FM-204
• Includes FM-2024 desoldering tool

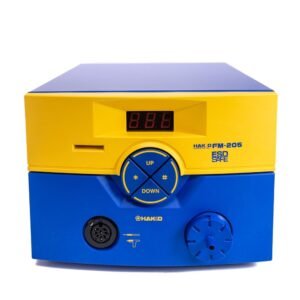

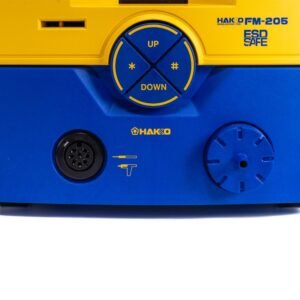

The Hakko FM-205 is a single-port soldering and desoldering station which includes an FM-2024 desoldering tool. The FM-2024 is compatible with N3 nozzles. Please note, nozzles are sold separately.

Please click here to view information on N3 nozzles including part numbers, images, and dimensional information.

The FM-205 requires an external source of compressed air for operation. If you do not have shop air in your facility, please see part numbers FM204-01 and FM204-CP for a similar station, but containing a built-in pump.

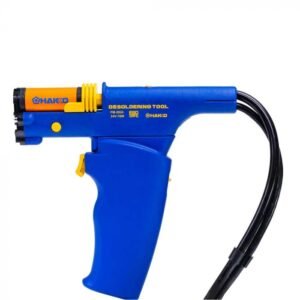

The FM-2024 desoldering tool can be converted from either a pencil or gun style and uses quick change nozzles to make your workflow fast and convenient. In addition, the station activates sleep mode when a tool is returned to its holder, helping to maximize the lifespan of tips and nozzles.

Hakko offers multiple versions of the FM-204 and FM-205, with different accessories and functionality. A brief overview of the main differences in each can be seen below. Please see each product’s page for more detailed information.

A main differentiator between the FM-204 and FM-205 is how vacuum is generated. The FM-204 contains a built-in pump and does not require an external source of compressed air. The FM-205 does not have a built-in pump. The FM-205 requires an external source of compressed air, however, it is able to generate greater pressure and airflow.

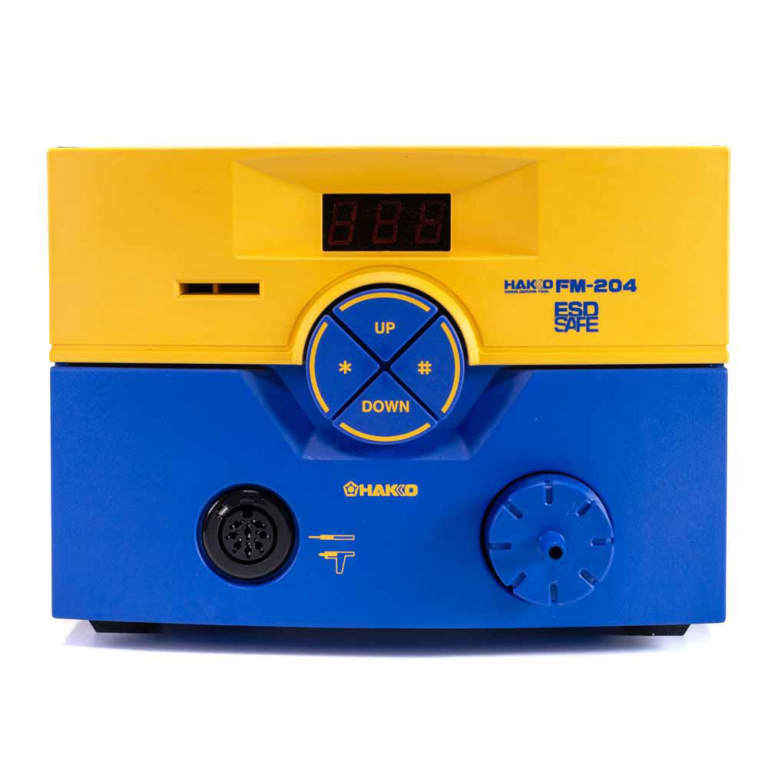

• FM204-01
• Contains built in pump
• Does not require an external source of compressed air to generate vacuum
• Includes FM-2024 desoldering tool
• Vacuum pressure: 80 kPa (24 in. Hg / 600 mm Hg)
• Suction flow: 15 L/min
• FM204-CP
• Contains built in pump
• Does not require an external source of compressed air to generate vacuum
• Includes FM-2024 desoldering tool
• Includes FM-2027 soldering iron
• Vacuum pressure: 80 kPa (24 in. Hg / 600 mm Hg)
• Suction flow: 15 L/min
• FM205-01
• Shop air model
• Does not contain a built in pump
• Requires an external source of compressed air to operate
• Includes FM-2024 desoldering tool
• Provides for higher vacuum pressure and increased suction flow in comparison to the FM-204
• Vacuum Pressure: 93 kPa (28 in. Hg / 700 mm Hg)
• Suction flow: 20 L/min

The FM-204 and FM-205 are compatible with several handpieces.

• FM-2024 – desoldering tool
• FM-2026 – nitrogen soldering iron
• FM-2027 – standard soldering iron
