Hakko FT802-03 – Digital Thermal Wire Stripper with Tweezer Style Handpiece (Blades Sold Separately)

The Hakko FT802-03 is a thermal wire stripper with an FT-8004 tweezer style handpiece. The FT802-03 features an integrated handpiece holder on top of the station to maximize workbench space, while also providing a shield to prevent burns. The holder on top of the station also has a blade removal plate which allows users to remove the blades from the handpiece without touching them. The FT-802 maintains the same performance and features of the FT-801.

FT-8004 handpiece and G4 blades

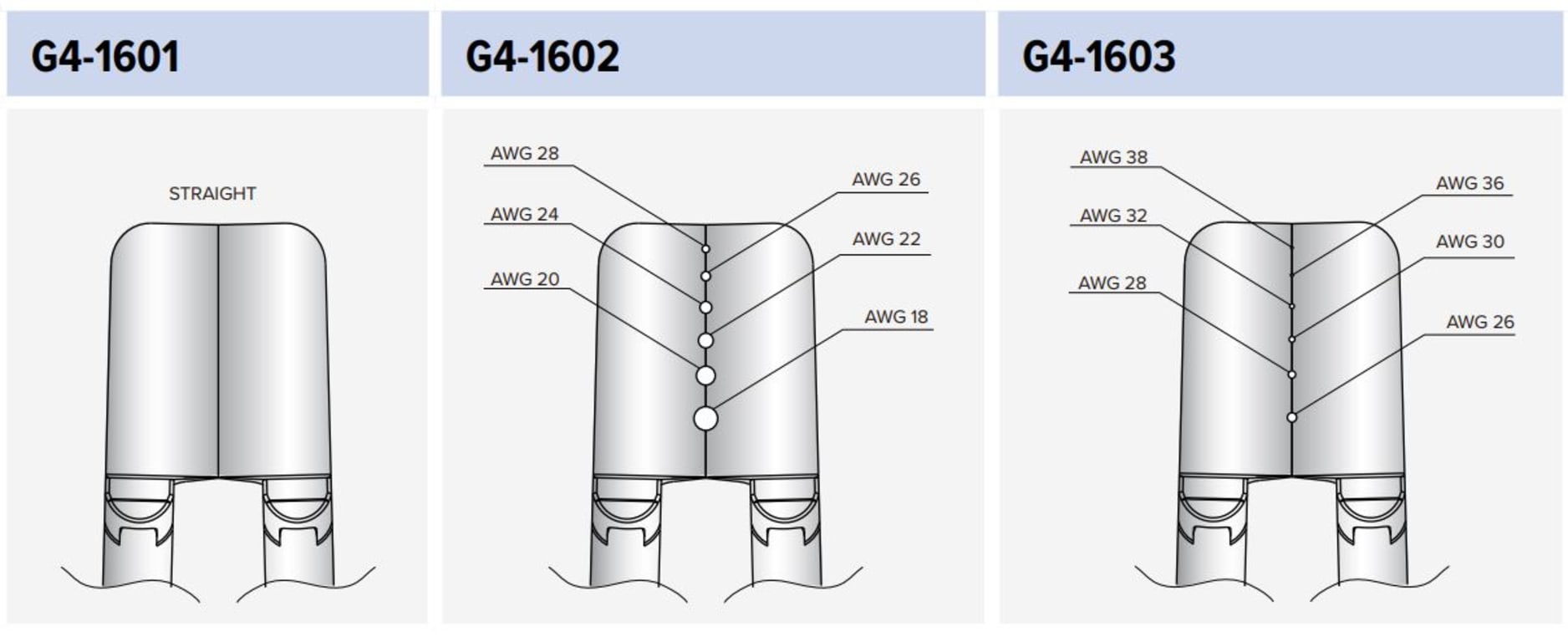

The FT-8004 features an ergonomic design with built in heat resistance. It also contains improved blade alignment with set screws that ensure the alignment maintains throughout the workday. This handpiece uses G4 blades with superior thermal performance and an optimized edge which makes wire stripping easier. Please note, blades are sold separately.

The built-in handpiece holder has a magnetic sensor that will activate its Sleep Mode when the handpiece is placed on the handle holder. Sleep Mode is a 50% reduction to the power setting.

These are on jira, crop as needed so they are not enormous and also line up with each other

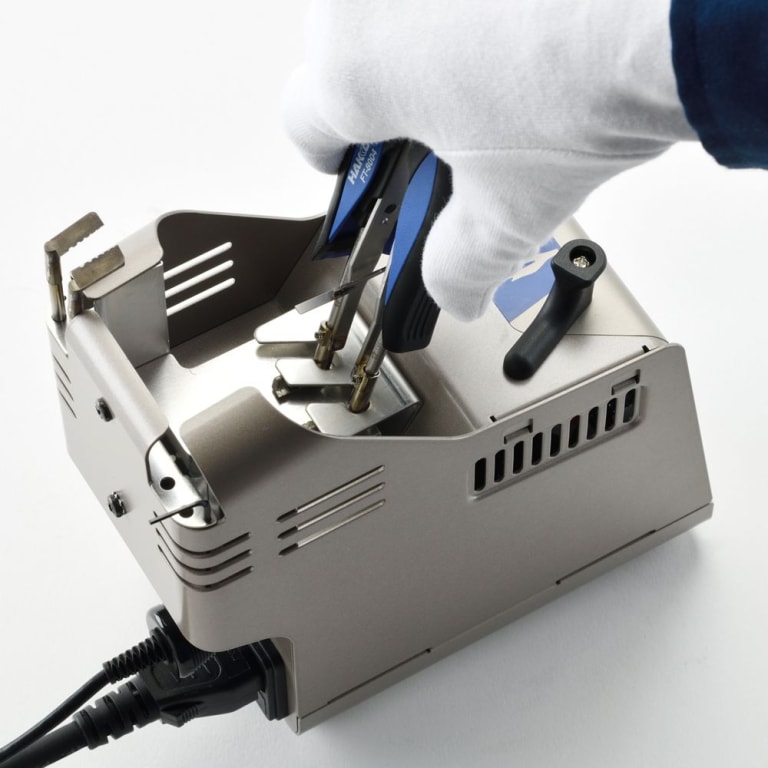

A convenient blade removal plate built directly into the station’s holder for removing blades with ease.

The FT-802 is also compatible with the FT-8003 hot knife. The Hakko FT-8003 hot knife blade is designed for stripping ultra-thick wires and wire harness braid. The FT8003-81 conversion kit includes the hot knife with G3-1601 blade and handpiece holder.
