Description
Hakko FX-305
- Easy to read LCD digital display
- 75 x 75 mm square crucible included
- Accepts 3 crucible sizes: 50 x 50*, 75 x 75 and 100 x 100* (*Sold separately)
- Safety cover above solder pot
- Smart software for setting temperature, programs, and profiles

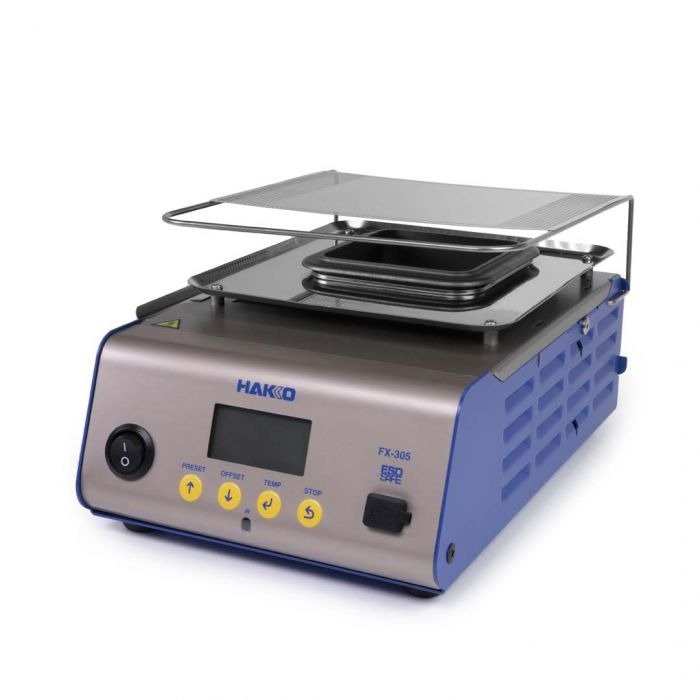

Digital Solder Pot

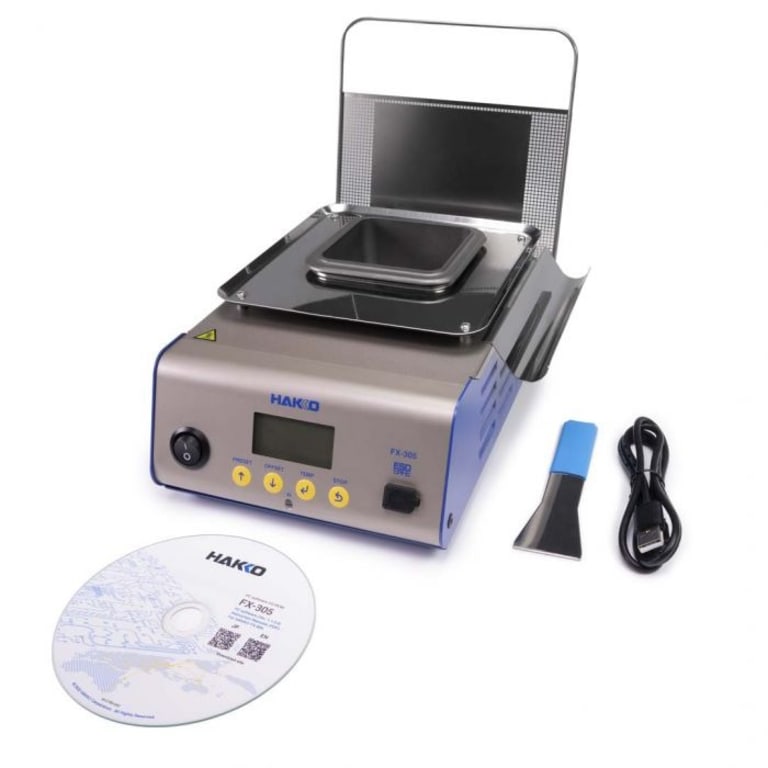

The HAKKO FX-305 Digital Solder Pot includes a standard 75 x 75 mm crucible and is perfect for tinning leads and soldering components. The FX-305 features a maximum temperature setting of 990°F / 530°C, an LCD interface, and HAKKO Control Software that makes setting parameters and temperature fast and easy.

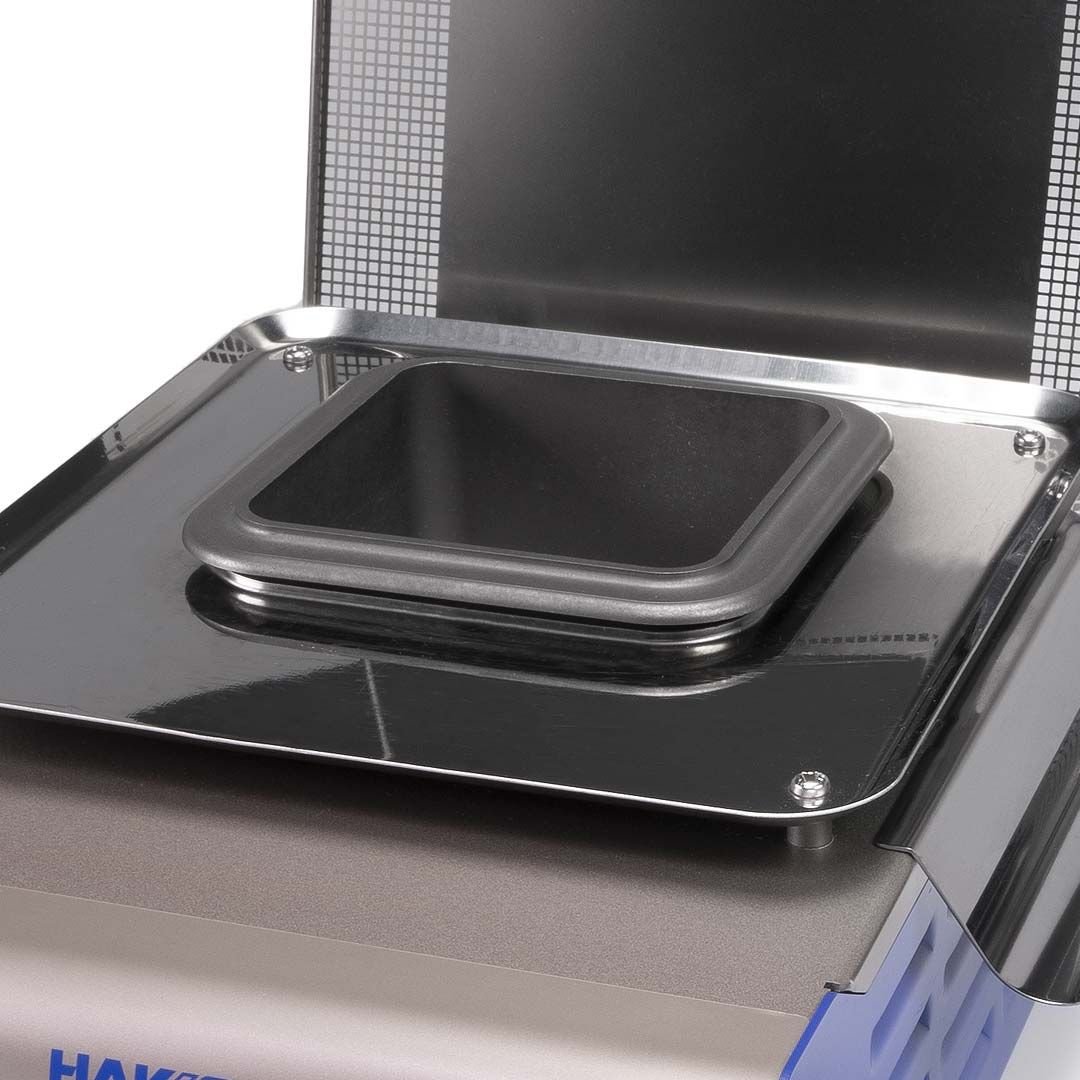

FX-305 crucibles
The FX-305 introduces a new 100x100mm crucible for added capacity. The 75x75mm (part# A5068) is included with the unit; parts A0567 and A0569 are sold separately.
Temperature ranges for each crucible size are as follows:
- A5067: 120-990°F / 50-530°C
- A5068: 120-940°F / 50-500°C
- A5069: 120-840°F / 50-450°C

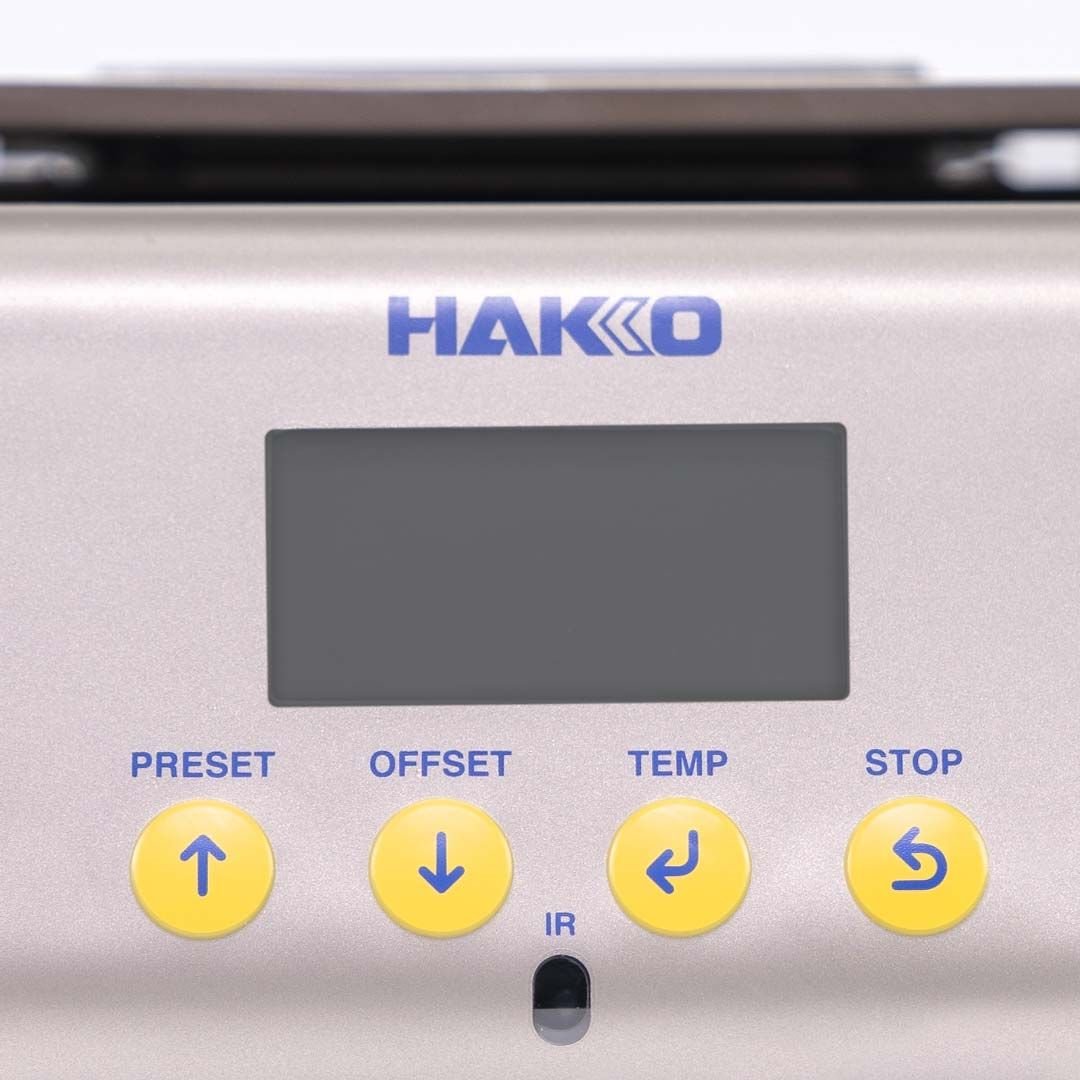

Front panel overview
Internal pot temperature correction (offset)
If the setting temperature and measured value of the internal pot temperature differ, you can correct the temperature in “temperature correction mode”. (Correction range: ±100°C/±180°F)
This can be easily done manually by pressing keys on the FX-305 front panel.
It is also possible to automatically change the offset value using a HAKKO thermometer (optional) with the temperature-sending function.
Soldering Equipment/Soldering Pots Template | |
|---|---|
| Type (Soldering Pots) | Digital |
| Programmable | Yes |
| Temperature Min | 120 F |
| Temperature Max | 500 F |
| Auto Power Off | No |
| Solder Pot Size Length | 75 MM |
| Solder Pot Size Width | 75 MM |
| Solder Pot Size Height | 42.5 MM |
| Temperature Scales | Both |
| Solder Capacity | 4.2 LBS |
Product General Attributes | |
| Interfaces I/O | USB |
| Product Weight | 5.5 LBS |
| Product Length | 9.4 IN |
| Product Width | 6.4 IN |
