Description
Hammond 1414 N4 PH
Standards
- UL 508A Type 3R, 4, 12 and 13
- CSA Type 3R, 4, 12 and 13
- Complies with
- NEMA Type 3R, 4, 12 and 13
- IEC 60529, IP66

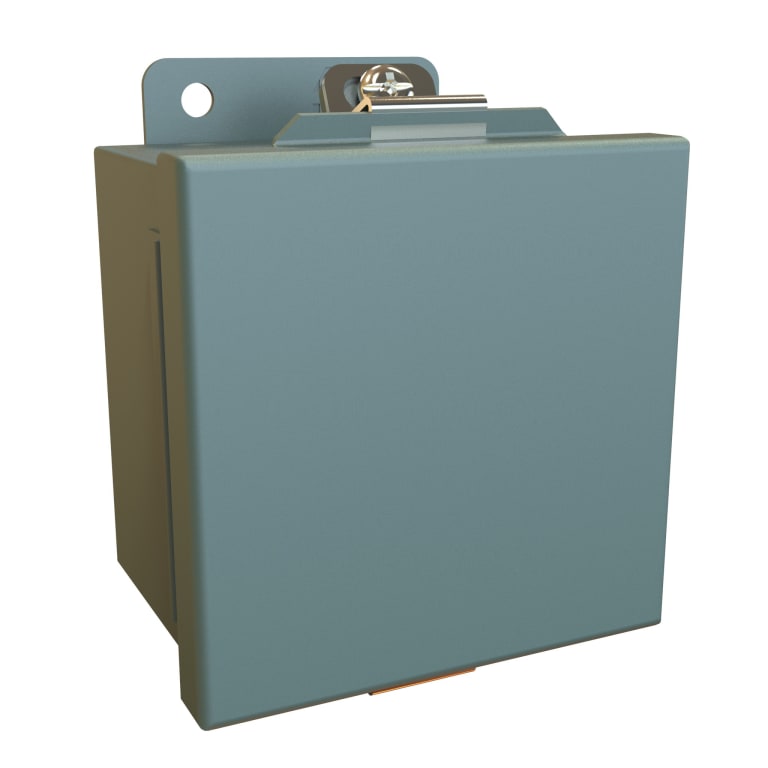

Type 4 Mild Steel Junction Box; Continuous Hinge Door with Clamps
Application
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
Construction
- Body formed from 16- or 14-gauge steel. Covers are formed from 14-gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts, or holes.
- Welded brackets provide for enclosure mounting.
- Continuous hinged cover is secured with stainless steel clamps and screws.
- Stainless steel continuous hinge on door may be removed by pulling the stainless-steel hinge pin.
- Seamless poured-in place gasket.
- All models larger than 4″ x 4″ include a removable 14-gauge inner panel.
- Internal threaded weld studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Finish
- Cover and enclosure are phosphatized, finished in recoatable smooth ANSI 61 gray powder coating.
- Removable inner panel is finished in white powder coating.
Part Details
| Enclosure | Panel | |||||
| Part No. | H | W | D | H | W | |
| 1414N4PHA | 4.00 | 4.00 | 3.00 | no panel | ||
| 1414N4PHC | 6.00 | 4.00 | 3.00 | 4.88 | 2.88 | |
| 1414N4PHG | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 | |
| 1414N4PHE | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 | |
| 1414N4PHI | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 | |
| 1414N4PHI6 | 10.00 | 8.00 | 6.00 | 8.75 | 6.88 | |
| 1414N4PHK | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 | |
| 1414N4PHL6 | 12.00 | 12.00 | 6.00 | 10.75 | 10.88 | |
| 1414N4PHM6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 | |
| 1414N4PHO6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 | |
| 1414N4PHM8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.88 | |
| 1414N4PHO10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.88 |
