Hammond 1421CNA25 10-32 Square Hole Cage Nuts (QTY 25)

Name: Hammond 1421CNA25 10-32 Square Hole Cage Nuts (QTY 25) - NESTES Instruments
SKU: Hammond 1421CNA25
Price: 4.40 USD
Availability: InStock

Brand:

Hammond

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

16 people are viewing this product right now

$4.40

Shipping calculated at checkout.

Add to quote

Estimated delivery:3 days

PKG OF 25 10-32 CAGE NUTS

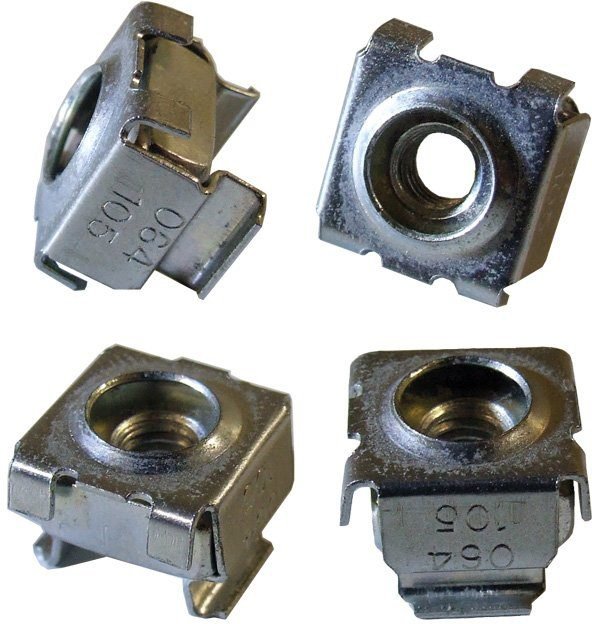

Package of 25, 10-32 Square Hole Cage Nuts
10-32 cage nuts for 0.375″/9.54mm square hole punched panel rails
Has the holding strength of a 10-32 nut
Heat-treated by means of austempering
Zinc plated
Constructed of SAE 1050-1065 spring steel
Recommended torque spec 31.4 +/- 20% inch-lbs
Maximum load rating will vary depending on rail mounting and cabinet load rating
REACH Compliant
RoHS Compliant

SKU: Hammond 1421CNA25 EAN: 623980334103 Tags: Enclosures, Enclosures and Boxes Categories: Enclosures

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

Hammond 1421CNA25 10-32 Square Hole Cage Nuts (QTY 25)

Square Hole Cage Nuts

Zinc plated
Recommended torque spec 31.4 +/- 20% inch-lbs
Constructed of SAE 1050-1065 spring steel

The Hammond 1421CNA25 is a 10-32 square hole cage nuts (QTY 25) for 0.375″/9.54mm square hole punched panel rails. Each nut has the holding strength of a 10-32 nut. The 1421CNA25 cage nuts are constructed of SAE 1050-1065 spring steel. The maximum load rating will vary depending on rail mounting and cabinet load rating.
