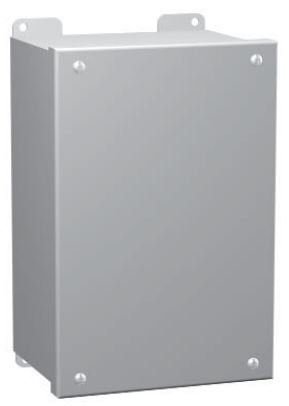

Hammond 1438-30 Junction Box, Extra Deep, NEMA 12, 13
25 people are viewing this product right now
Original price was: $331.76.$207.61Current price is: $207.61.
Shipping calculated at checkout.
Estimated delivery:3 days
N12 Lift Off, Screw Cover Encl – Extra Deep – 16.2 x 13 X 4.7 – Steel/Gray
- Junction box, extra deep, NEMA 12, 13.
- Size A x B x C: 16.25 in x 13 in x 4.75 in
- Extra deep
- Lift Off, Screw Cover
- Designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures.
- Provides a degree of protection from falling dirt, dust, oil and water.
- Formed from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Welded brackets provide for enclosure mounting.
- Cover screws fasten into threaded, sealed wells.
- Oil resistant gaskets are permanently secured.
- A grounding stud is provided in the enclosure.
- Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
Guarantee Safe and Secure Payment Checkout
Description
Hammond 1438 Junction Box, Extra Deep, NEMA 12, 13
1438 Series Junction Box
- Size A x B x C: 16.25 in x 13 in x 4.75 in
- Formed from 14 gauge steel
- Cover screws fasten into threaded, sealed wells.
- Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
The Hammond 1438 Junction Box, NEMA 12, 13 is designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures. It provides a degree of protection from falling dirt, dust, oil and water. The cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
Standards:
- UL 508 Type 12 and 13
- CSA Type 12 and 13
- Complies with
- NEMA Type 12 and 13
- IEC 60529, IP54
Construction:
- Formed from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Welded brackets provide for enclosure mounting.
- Lift off cover is secured with captive, plated steel screws, and supported on internal hinges except as noted on charts at bottom and right.
- Cover screws fasten into threaded, sealed wells.
- Oil resistant gaskets are permanently secured.
- A grounding stud is provided in the enclosure.
Enclosures and Boxes Template | |
|---|---|
| Type (Enclosures) | Industrial |
| Enclosure Material | Steel |
| Length | 17.25 IN |
| Width | 13.31 IN |
Product General Attributes | |
| Product Length | 17.25 IN |
| Product Width | 13.31 IN |
| Shipping Weight | 14.00 LBS |
| Country of Origin | Canada |
| Shipping Height | 13.31 IN |
| UPC | 62398041380 |
| Shipping Length | 17.25 IN |
| Shipping Width | 13.31 IN |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 17.25 × 13.31 in |
|---|
