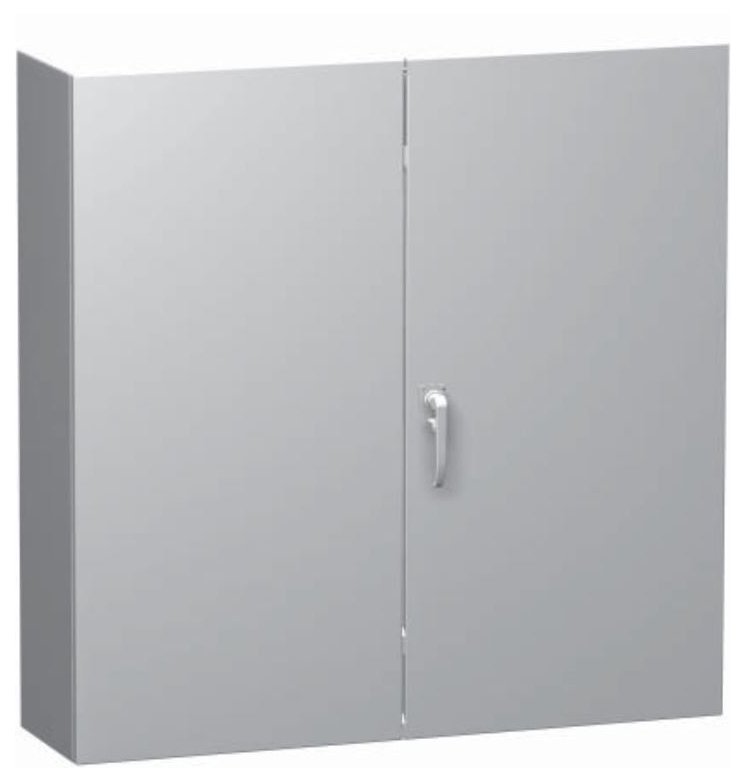

Hammond C3RMC – Type 3R Mild Steel Metering Cabinets; Hinge Door with Handle

Standards

• CSA Approved, Type 3R
• Complies with
• NEMA Type 3R
• IEC 60529, IP24

Application

• Designed for outdoor housing of metering transformers.

Construction

• Offered in single and double door versions.
• Formed and seam welded from 14- or 16-gauge steel.
• Smooth, continuously welded seams ground smooth.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• Pad lockable “L” style handle for 3-point latch system.
• Oil-resistant gaskets are permanently secured.
• Removable inner panel included.
• Collar studs were provided for mounting the inner panel.
• Doors may be easily removed for modifications and are interchangeable.
• Bonding stud provided on door and grounding stud installed in enclosure.
• Hinges are constructed from 304 stainless steel.
• Hinge pins are stainless steel.

Finish

• Cover and enclosure are phosphatized and finished with a recoatable ANSI 61 smooth gray powder inside and out.
• Removable inner panel is finished in white powder coating.
