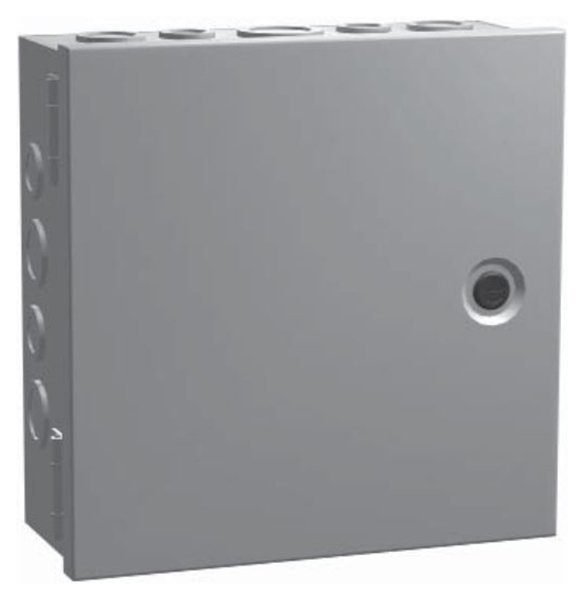

Hammond CHKO – Type 1 Mild Steel Junction Box; Hinge Door with Quarter Turn with Knockouts

Standards

• UL-50 Type 1
• CSA Type 1
• Complies with
• NEMA Type 1
• IEC 60529, IP20

Application

• Designed for general purpose indoor commercial use as a junction, pull or switch box.
• Hinged cover with latch provides easy access during installation and maintenance.

Construction

• Formed and spot welded from 16-gauge (up to 30″x24″) or 14-gauge (36″x24″) steel.
• Formed steel covers close by use of slotted quarter turn latch.
• Full swing, hinged door.
• Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
• Through holes in back for wall mounting.
• Grounding location embossed in body.

Finish

• Enclosure and cover are finished in ANSI 61 gray powder coating.
