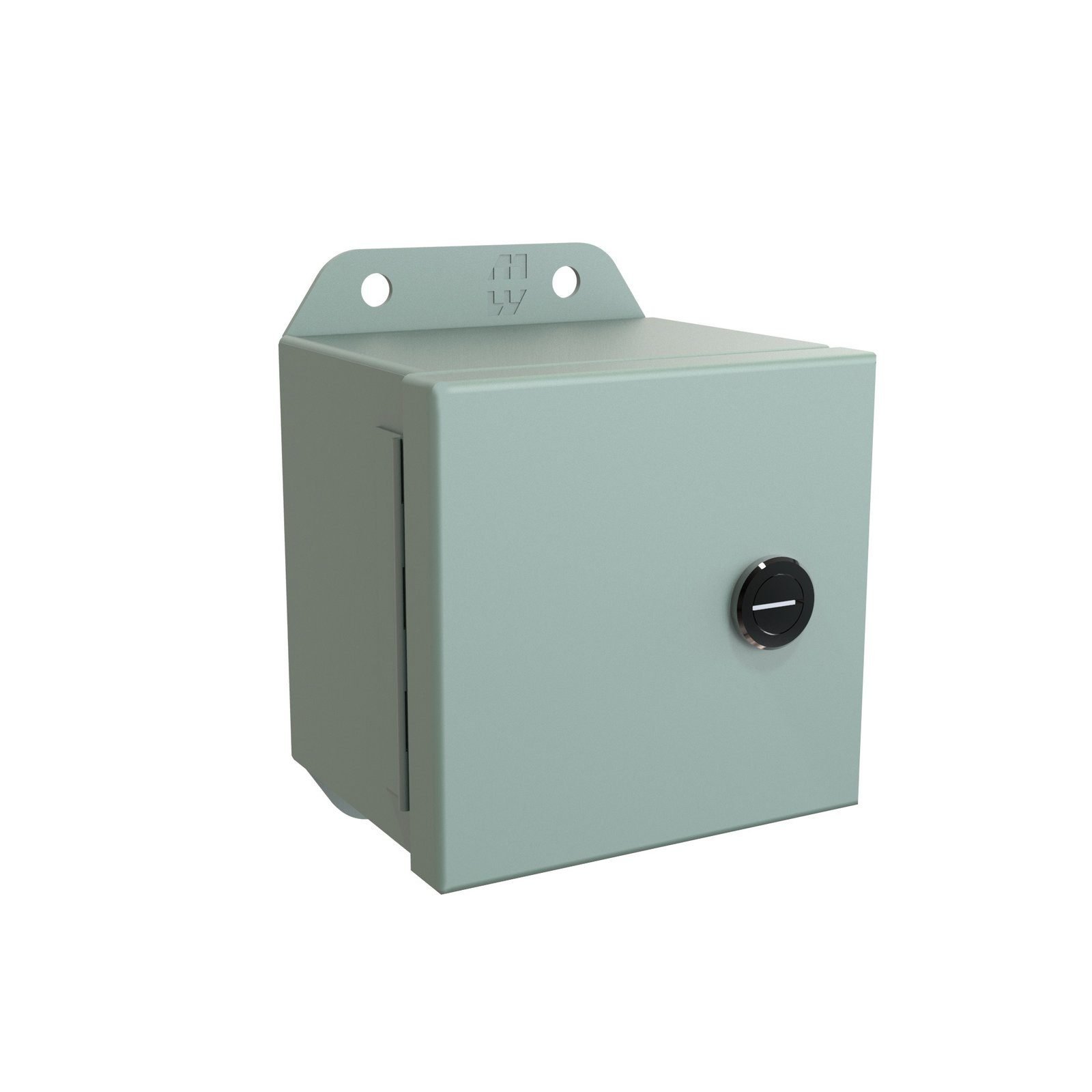

Hammond Eclipse Junior – Type 4 Mild Steel Junction Box; Continuous Hinge Door with Quarter Turn
22 people are viewing this product right now
$56.25
Shipping calculated at checkout.
Estimated delivery:5 days
NoneNone
Guarantee Safe and Secure Payment Checkout
Description
Hammond Eclipse Junior
- Standards
- UL 508A Type 3R, 4, 12 and 13
- CSA Type 3R, 4, 12 and 13
- Complies with
- NEMA Type 3R, 4, 12 and 13
- IEC 60529, IP66
Type 4 Mild Steel Junction Box; Continuous Hinge Door with Quarter Turn
Application
- Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments.
- For use as instrument enclosures, electric, hydraulic, or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Impressive styling features make the Eclipse Junior a suitable addition to any high-tech equipment installation.
Construction
- The body and cover are formed from 16-gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts, or holes.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- 14-gauge welded brackets provide for enclosure mounting.
- The continuously hinged cover has 304 stainless steel hinges and provides a 180° opening.
- Door latches feature the added safety of quarter turn slots requiring the use of tools for opening.
- Quarter turn latches formed from black zinc diecast.
- Seamless poured-in place gasket.
- Models larger than 4”x4” include a removable 14 gauge galvanized inner panel.
- Internally threaded weld studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
- Grounding and panel mounting hardware provided.
Finish
- Cover and enclosure are finished with a recoatable powder inside and out with a choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
- Inner panels are unpainted galvanized steel.
Type 4 Mild Steel Junction Box (Eclipse Junior Series) –
ANSI 61 Gray Part No. | RAL 7035 Light Gray Part No. | Enclosure | Panel | |||
| H | W | D | H | W | ||
| EJ443 | EJ443LG | 4.00 | 4.00 | 3.00 | – | – |
| EJ643 | EJ643LG | 6.00 | 4.00 | 3.00 | 4.88 | 2.88 |
| EJ683 | EJ683LG | 6.00 | 8.00 | 3.50 | 4.88 | 6.75 |
| EJ863 | EJ863LG | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 |
| EJ444 | EJ444LG | 4.00 | 4.00 | 4.00 | – | – |
| EJ644 | EJ644LG | 6.00 | 4.00 | 4.00 | 4.88 | 2.88 |
| EJ664 | EJ664LG | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 |
| EJ884 | EJ884LG | 8.00 | 8.00 | 4.00 | 6.75 | 6.88 |
| EJ8104LG | EJ8104LG | 8.00 | 10.00 | 4.00 | 6.88 | 8.75 |
| EJ1084LG | EJ1084LG | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 |
| EJ1264LG | EJ1264LG | 12.00 | 6.00 | 4.00 | 10.75 | 4.88 |
| EJ12124LG | EJ12124LG | 12.00 | 12.00 | 4.00 | 10.75 | 10.88 |
| EJ10125LG | EJ10125LG | 10.00 | 12.00 | 5.00 | 8.88 | 10.75 |
| EJ12105LG | EJ12105LG | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 |
| EJ866LG | EJ866LG | 8.00 | 6.00 | 6.00 | 6.75 | 4.88 |
| EJ1086LG | EJ1086LG | 10.00 | 8.00 | 6.00 | 8.75 | 6.88 |
| EJ10106LG | EJ10106LG | 10.00 | 10.00 | 6.00 | 8.75 | 8.88 |
| EJ12126LG | EJ12126LG | 12.00 | 12.00 | 6.00 | 10.75 | 10.88 |
| EJ12146LG | EJ12146LG | 12.00 | 14.00 | 6.00 | 10.88 | 12.75 |
| EJ1486LG | EJ1486LG | 14.00 | 8.00 | 6.00 | 12.75 | 6.88 |
| EJ14126LG | EJ14126LG | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 |
| EJ14166LG | EJ14166LG | 14.00 | 16.00 | 6.00 | 12.88 | 14.75 |
| EJ16106LG | EJ16106LG | 16.00 | 10.00 | 6.00 | 14.75 | 8.88 |
| EJ16146LG | EJ16146LG | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 |
| EJ12108LG | EJ12108LG | 12.00 | 10.00 | 8.00 | 10.75 | 8.88 |
| EJ14128LG | EJ14128LG | 14.00 | 12.00 | 8.00 | 12.75 | 10.88 |
| EJ16148LG | EJ16148LG | 16.00 | 14.00 | 8.00 | 14.75 | 12.88 |
| EJ161410LG | EJ161410LG | 16.00 | 14.00 | 10.00 | 14.75 | 12.88 |
