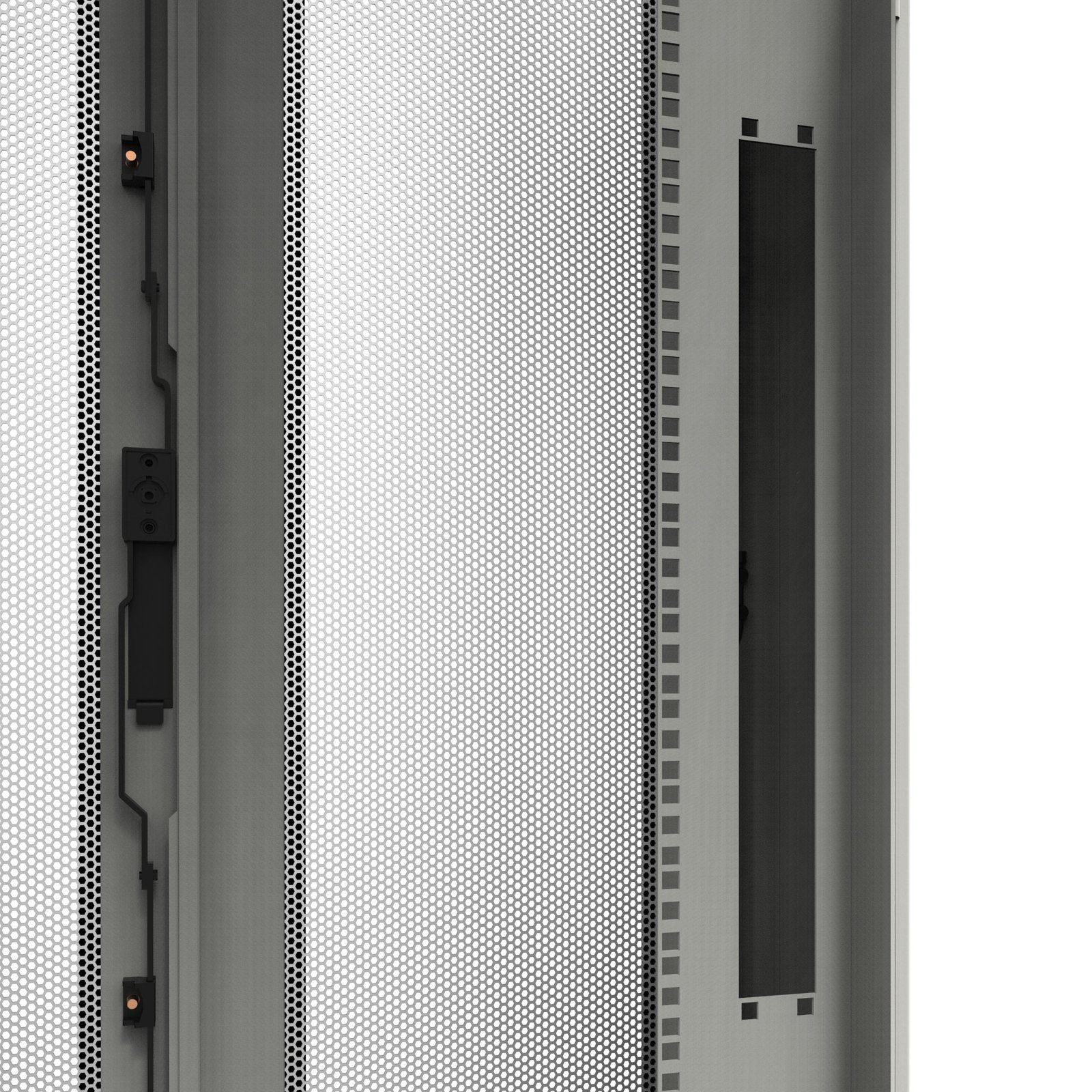

Hammond H13045U48WH – 45U 30W 48D H1 Data Center Server Cabinet (White)

• 45U mounting heights
• 30″ W frame
• 48″ overall depths
• Include “Bonus” 1U space for optional rack accessories, such as cable management or power bars.
• The cabinet top includes four (4) 3.5” wide cable entry holes.
• Support for vertical cable managers without obstructing mounting rails.

The Hammond H13045U48WH is designed to be your most complete offering for Server, Network, and Data Storage applications. This H1 series incorporates Hammond Manufacturing’s practical open-design and manufacturing principles with legendary service, support, and reliability. H1 cabinets feature an array of enhancements over traditional cabinets, with cooling performance and enhanced security features demanded by today’s IT manager.

• Cabinet frame constructed in 14-gauge steel with 12-gauge steel reinforced corner brackets.
• Cabinet doors and optional side panels constructed in 16-gauge steel.
• Square hole 19″ mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are powder coat finished.
• UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg) and Static Load tested to 12,000 lbs (5,443 kg).
• Grounding studs bonded to the frame, side panels, and doors. Front and rear studs on cabinet frame conform to PET.
• Finished in textured RAL9005 black or RAL9003 white powder paint.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
