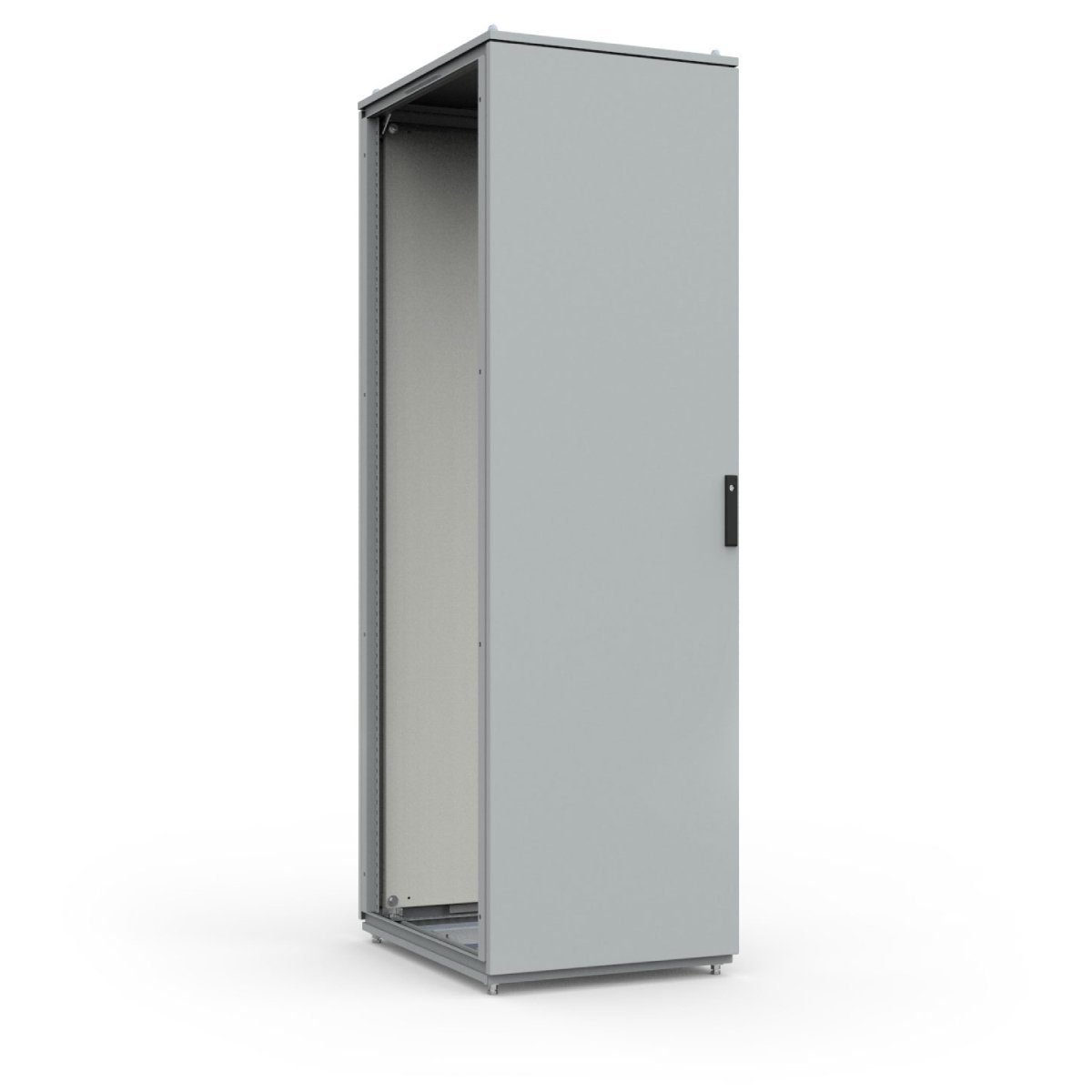

Hammond HME – Type 12 Mild Steel Modular Freestanding Enclosure; Hinge Door w/ Various Handle Options

Standards

• UL 508A Type 12
• CSA Type 12
• Complies with
• NEMA Type 12
• IEC 60529 IP54

Application

• The HME product line provides users with a rugged housing for industrial control and operator interface in industrial environments.
• Modular design permits joining of units together for large scale and mixed-use applications.
• Frame’s 25mm hole pattern provides extensive component and accessory mounting flexibility.
• A broad range of industry standard sizes are offered.

Construction

• Formed 14-gauge steel.
• Fully welded frame with 25mm hole pattern for superior mounting flexibility.
• Foam gasket on all openings provides a dust-tight seal.
• Reinforced eyebolts are provided for easy enclosure lifting.
• Frames can be joined together with an optional joining kit.
• Doors can be easily interchanged, removed and/or reversed.
• Door opening 135°.
• Optional formed 14-gauge steel side panels are sold separately (in pairs).
• Bonding and grounding studs are provided for all doors and panels.

Finish

• Phosphatized and finished in RAL 7035 light gray powder coating.
• Inner panel is unpainted galvanized 12-gauge steel.
